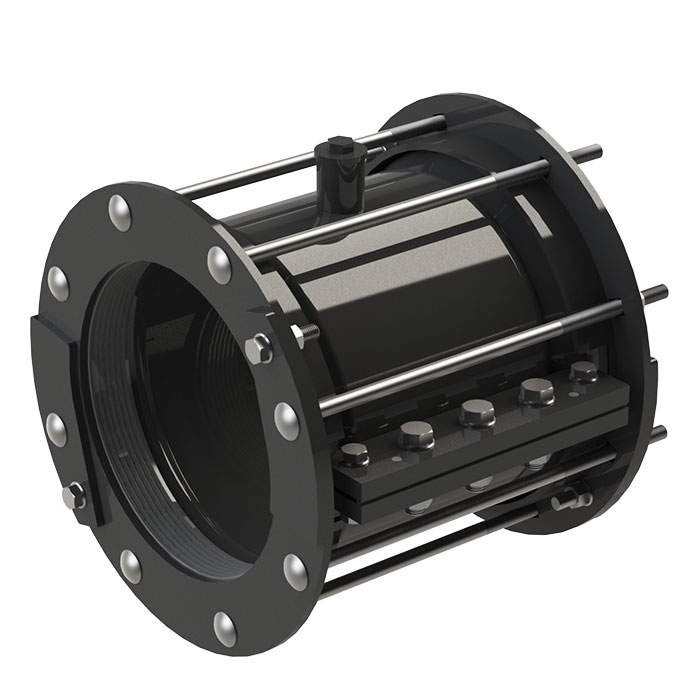

Straight version Duofit D10 for repairs on damaged pipes (cracks, faulty weldings, corrosion, etc.) with no service cut off on pipes of any diameter.

It can be also used for hot tapping techniques on pipes of any material and diameter with running fluids.

Central body
Carbon steel central body conveniently built in order to allow a perfect insertion of the gasket inside its dedicated conical seat.

Compression ring
Carbon steel compression followers which allow compression of the gasket onto the pipe surface upon tightening the bolts.

Gasket
Truncated-cone sealing gasket which can be perfectly inserted between the central body of the coupling and the circumference of the pipe. It allows a complete hydraulic seal and a 30 mm tolerance range on the pipe OD.

Bolt holes
Round or square holes for the bolt insertion.

Compression bolts
The compression bolts allow the approaching of the compression flanges and the consequent compression of the gasket onto the pipe.

Shaping
Manufactured in carbon steel, designed according to the length and the diameter of the pipe or of the sleeve to be repaired, in order to perfectly cover them.

Lateral plates
Manufactured in carbon steel, they allow the union of the two longitudinal shells of the DUOFIT allowing the repairing of the leak.

Lateral gasket
Lateral gasket with square section, it is compressed between the lateral plates and allows the hydraulic seal along the entire length of the Duofit.

Upper and lower outlets
They allow the DUOFIT assembly decreasing the pressure during the installation. They are also used in order to test the DUOFIT tightness once the installation is completed.

Straight version
Straight version for repairing pipeline straight sections.

Separate followers version
The bolts tightening is independent in order to improve the coupling centering and the performances of the gasket.

Duofit D10 Single Bolt Straight Version Technical Specifications



DN

Ø D

MOP (PN)



L1

Max. External Dimension Ø C

No. Flange Bolts N

No. Lateral Plates Bolts B



Weight

Min.

Max.

300

320

350

6-10-16



355

500

8



10

99

350

340

370

6-10-16

520



10

105

360

390

6-10-16

540

108

400

390

420

6-10-16

580

113

410

440

6-10-16

600

116

450

435

465

6-10-16

620



12

123

460

490

6-10-16

640

127



500

490

520

6-10-16

680

132

510

540

6-10-16

700

135

535

565

6-10-16

720



14

142

560

590

6-10-16

740

146



600

590

620

6-10-16

783

151

620

650

6-10-16

813

160

645

675

6-10-16

838

164



700

670

700

6-10-16

863



16

171

695

725

6-10-16

888

175

720

750

6-10-16

913

179

750

780

6-10-16

943

184



800

780

810

6-10-16

973

189

835

865

6-10-16

1028



18

200

860

890

6-10-16

1053

205



900

895

925

6-10-16

1088

214

925

955

6-10-16

1118



20

222

955

985

6-10-16

1148

227



1000

985

1015

6-10-16

1178

232

1000

1030

6-10-16

1193



22

237

1030

1060

6-10-16

1223

241

1060

1090

6-10-16

1253

246



1100

1080

1110

6-10-16

1273

250

1100

1130

6-10-16

1293



24

255

1130

1160

6-10-16

1323

260

1160

1190

6-10-16

1353

265



1200

1185

1215

6-10-16

1378

270

1205

1235

6-10-16

1398

26

275

1235

1265

6-10-16

1428

280

1300

1300

1330

6-10-16

1493



28

297

1335

1365

6-10-16

1528

303



1400

1385

1415

6-10-16

1578

311

1410

1440

6-10-16

1603

30

318

1440

1470

6-10-16

1633

323

1500

1510

1540

6-10-16

1703

32

337



1600

1585

1615

6-10-16

1778



34

349

1610

1640

6-10-16

1803

356

1650

1680

6-10-16

1843

363

1800

1825

1855

6-10-16

2018

40

403

1860

1890

6-10-16

2053

42

408

2000

2020

2050

6-10-16

2213

46

442

2065

2095

6-10-16

2258

48

450
