Product Overview

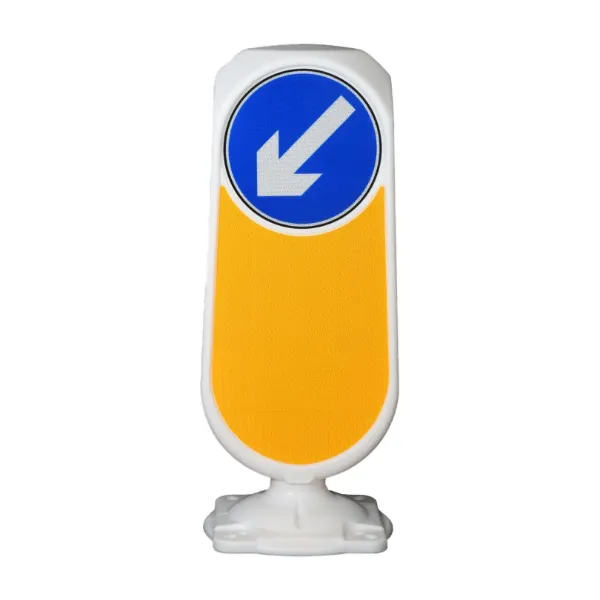

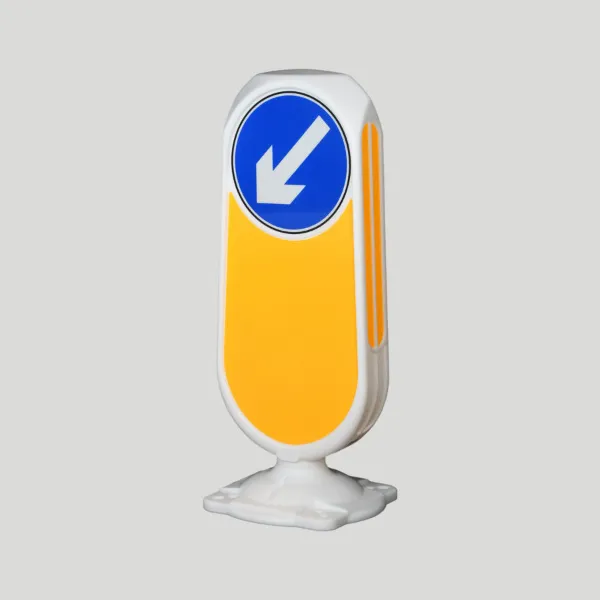

The Weebol Flex: Passively Safe Reflective Bollard is a high-quality, single-piece moulded retro-reflective bollard with an integral flexing feature, available in either single or dual aspect. This passively safe reflective bollard delivers outstanding high-speed impact resistance and durability, providing effective traffic management even in the busiest of areas. Manufactured using a bespoke polymer material, its process is tuned to provide a one-piece body with flexibility at the hinge point and increased rigidity behind the deeply rebated reflective panel. This design controls where the bollard folds, preserving the panel and reducing damage by ensuring the body is the first impact point, not the panel. Recessed graphics and a flex point positioned to avoid panel creasing further minimise damage during an impact. The Weebol Flex is independently tested and meets the requirements of BS EN 12767:2007 to 100/NE/4, which equates to 100-NE-A-R-NS-MD-0 against BS EN 12767:2019. It is designed with an easy-clean surface and requires zero energy.

Key Benefits

• Passively safe, MIRA tested to performance standard 100/NE4 of BS EN 12767:2007.
• Delivers outstanding high-speed impact resistance and durability.
• Provides effective traffic management even in the busiest areas.
• One-piece moulding with no mechanical parts to fail.
• Flexible hinge point and rigid body control where the bollard folds, preserving the panel.
• Deeply rebated panels protect panels from impact damage or vandalism.
• Anti-twist vandal deterrent design.
• Easy clean surface.
• Reduces the risk of injury to persons or damage to vehicles in the event of an impact.
• Allows the body to reform after impact, reducing the likelihood of having to replace the bollard.
• Reduces the likelihood of panel creasing.
• Deterrent to vandals.
• Zero energy requirement.
• Recyclable.

Applications

• Effective traffic management in busy areas.
• Suitable where passive safety is required for roadside furniture.

Features & Construction

• Body: Single piece, rotationally moulded using UV stabilised linear low density polyethylene with easy clean surface treatment.
• Graphics: A 300mm diameter aspect in microprismatic retro-reflective material. All reflective panels meet the requirements of BS EN8408:2005.
• Compliance: BS EN 12767:2007 to 100/NE/4 (equates to 100-NE-A-R-NS-MD-0 against BS EN 12767:2019).
• No mechanical parts to fail.
• Non-illuminated.

Technical Specifications

Customisation Options

• Available in single or dual aspect.
• Body available in white or black.
• All standard traffic diagrams available as sign face options.

Installation & Maintenance

• Quick and easy installation reduces traffic management requirements.
• No excavation required for installation.

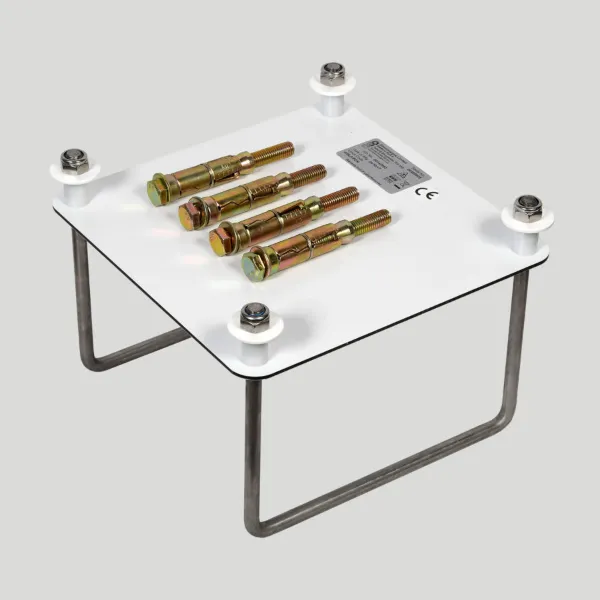

• Multi-fixing system options for:
  • Direct mounting to a flat surface.
  • Simmonsigns CABEX unit or Global Baselight.
  • Other manufacturers' bases.
  • Retention System socket.
• Low maintenance.
• Allows body to reform after impact.
