Product Overview

The STAKKAbox™ Modula is a lightweight, structural network access chamber system from IPL group, manufactured by Cubis Systems, a CRH Company. Made from Polypropylene (PP) , it is designed for use in various sectors, including both footway and carriageway installations. The system consists of 150mm deep ring sections which are stacked on top of each other to reach the desired depth. Each ring section is castellated to positively interlock with the unit above and below. Modula chambers are designed to significantly reduce installation costs through time savings, with complete installations typically taking up to one hour. Sections are available with duct entry holes or solid walls, and come pre-drilled with easily knocked-out duct caps for quick connection. The STAKKAbox™ system boasts a high strength-to-weight ratio due to its unique patented twin wall design with internal vertical and horizontal support ribs[cite: 73]. This innovative technology allows each STAKKAbox™ Modula Chamber to withstand a vertical load in excess of 40 Tonnes (D400 equivalent), ensuring it meets loading requirements up to B125 in various installation environments as per EN124 standards.

Key Benefits

• High Load Capacity: Capable of withstanding a vertical load in excess of 40 Tonnes (D400 equivalent) , meeting B125 loading requirements in various environments , suitable for both footway and carriageway use.

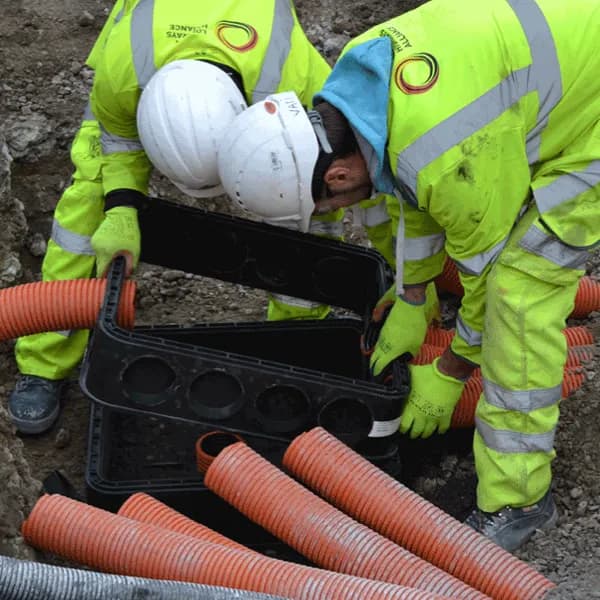

• Fast & Easy Installation: Designed for efficiency, with complete installations typically taking up to one hour. Lightweight, stackable sections (under 11kg per section) facilitate manual handling by a single operative. Pre-drilled, easily knocked-out duct caps de-skill connection and remove the need for power tools.
• No Concrete Surround Required: Eliminates the need for a concrete surround, simplifying installation and reducing material costs.
• On-Site Adaptability: Easily adaptable on site with standard tools for creating duct entries or for cutting around and building over existing networks without compromising strength.
• Long Life Expectancy: Boasts a 40+ year life expectancy, providing a durable and reliable solution.
• Environmentally Friendly: Made from Polypropylene (PP) and fully recyclable, contributing to sustainable infrastructure design.
• Effective Compaction: Features a smooth outer wall and an outer lip which keys into the backfill for effective compaction around the chamber system.

Applications

The STAKKAbox™ Modula is suitable for a wide range of applications, including:

• Traffic Signals

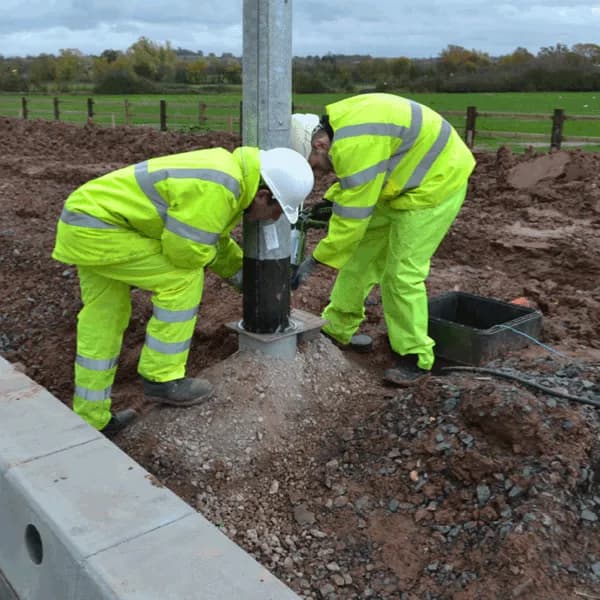

• Street Lighting
• Motorway Communications
• CCTV Systems
• Power and Gas Networks
• Telecommunications Infrastructure
• Rail Infrastructure
• Cable Television Networks
• Water Services
• Surface Water Management
• Drainage Systems
• Permanent Formwork

Features & Construction

• Pre-formed twin wall access chambers made from Polypropylene (PP).
• Constructed from 150mm deep ring sections that stack to create chambers of varying depths.
• Each 150mm section weighs under 11kg, suitable for single operative lift under manual handling regulations.
• Castellated design ensures positive interlock between sections.

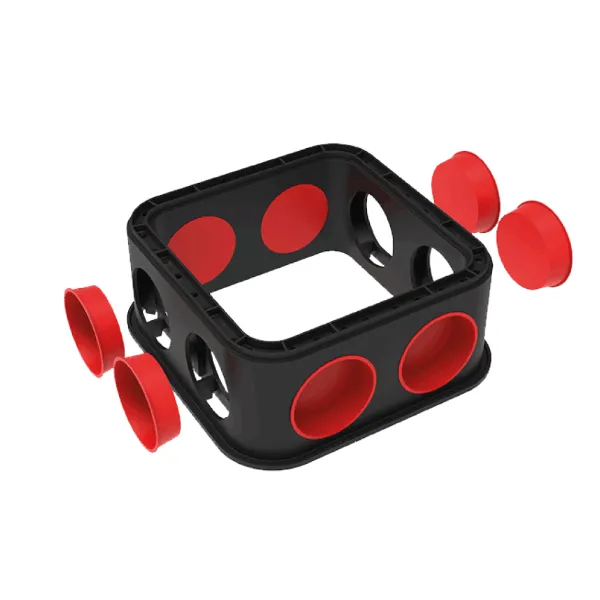

• Available with pre-formed duct entry holes or solid walls, and come pre-drilled with easily knocked-out duct caps on all 4 sides.
• Unique patented twin wall design with internal vertical and horizontal support ribs provides high strength to weight ratio and excellent load resistance.
• Withstands vertical loads in excess of 40 Tonnes (D400 equivalent) , meeting B125 loading requirements.
• Smooth outer walls and an outer lip key into the backfill for effective compaction.

Customisation Options

• Chambers can be formed to varying depths by stacking multiple 150mm sections.

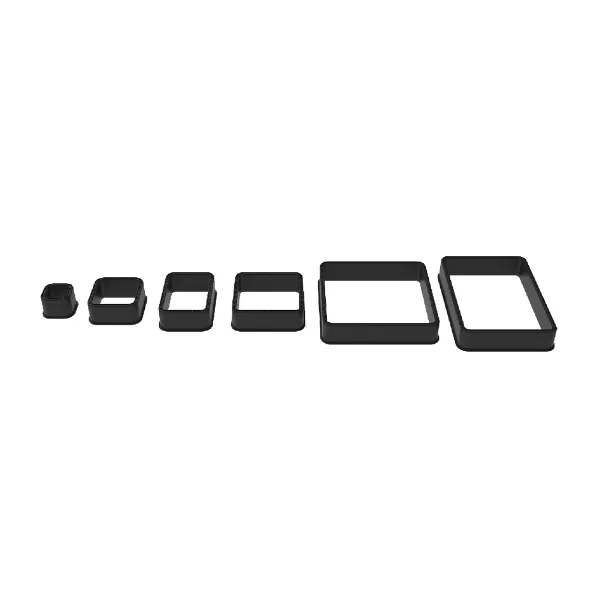

• Can be supplied in other sidewall lengths (100mm, 150mm, 300mm & 375mm) to construct various chamber sizes.
• Sections available with duct entry holes or solid walls.
• Supported by a wide range of X-TRAS™ chamber accessories, including Access steps/ladders (for chambers deeper than 600mm) , MULTIduct™ Spigots , Cable Management systems , Bases , and Duct Entries (with pre-fit service available).
• Compatible with AX-S™ access covers , which can be tailored to meet specified loading requirements (pedestrian up to carriageway duty) and are available in various materials (concrete infill, recessed, composite, ductile iron, steel fabricated) , clear opening dimensions, depths, security features, frame types, and bespoke badging.

Technical Specifications

Installation & Maintenance

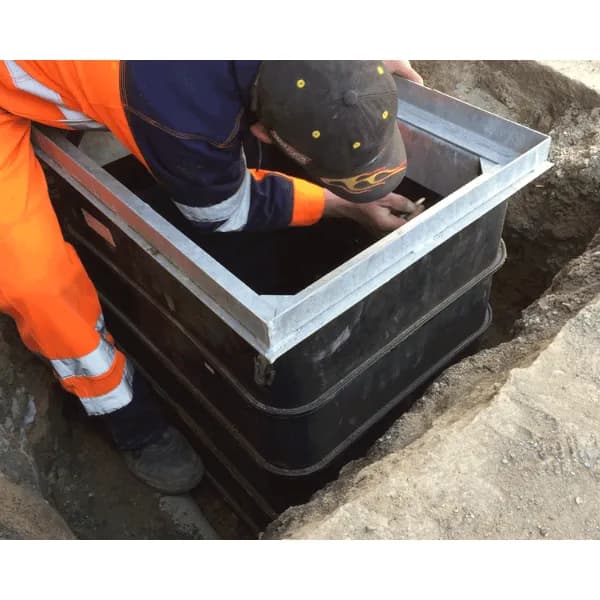

• Installation: Features a simple and quick installation process, with typical installations taking about one hour , and often without the need for a concrete surround. Lightweight sections (under 11kg) facilitate manual handling. Easily adaptable on site with standard tools. Further advice on specific installation requirements is available from IPL group.
• Maintenance: Designed for a 40+ year life expectancy, contributing to low long-term maintenance.
