Product Overview

The Quick-Flex Reboundable Bollard from IPL group is a highly flexible polyurethane bollard designed for ground-fixed installation. It is specifically suitable for lane protection, cycle paths, and upgrades of existing streetscapes. Produced using highly flexible polyurethane injection technology, these bollards have a 100% ability to return to their original shape after impact, and offer UV and Thermal Degradation protection, ensuring long-lasting performance and safety.

Key Benefits

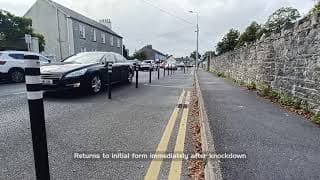

• High Flexibility & Reboundability: Produced using highly flexible polyurethane injection technology, allowing them to return 100% to their original shape immediately after knockdown and resist multiple impacts.
• Fast Installation: Designed for quick installation, saving time and effort.
• Durable & Weather-Resistant: Offers UV and Thermal Degradation protection, ensuring longevity in outdoor conditions.
• Enhanced Safety: Provides effective lane protection and guidance for cycle paths, contributing to safer road environments. They are produced according to EN 13422 and feature Level III certified reflective screen according to EN 12899-2:2007.

Applications

The Quick-Flex Reboundable Bollard is suitable for a variety of traffic management and safety applications, including:

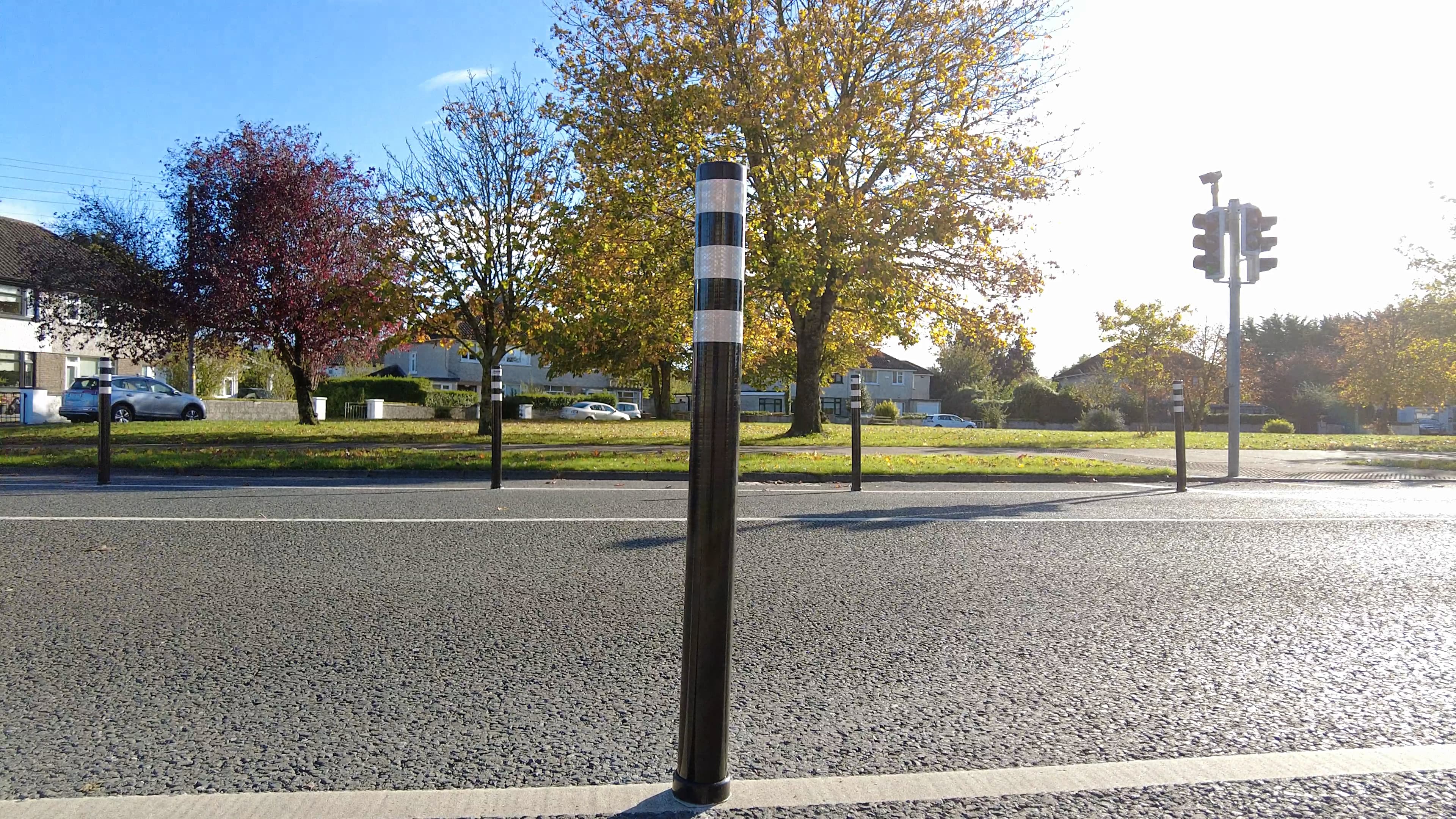

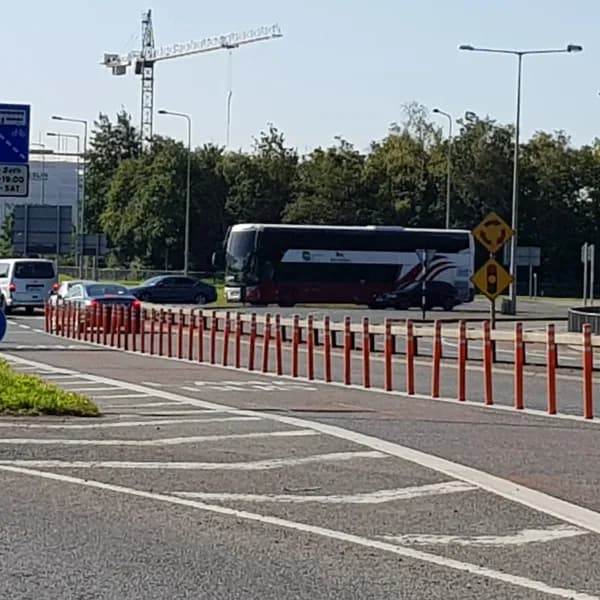

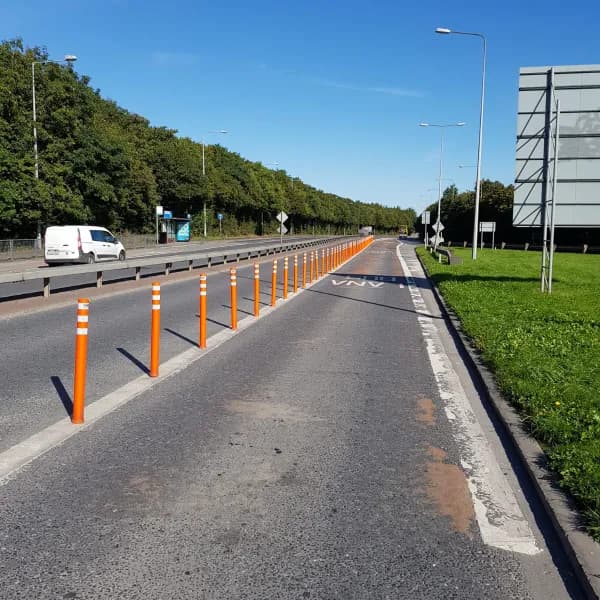

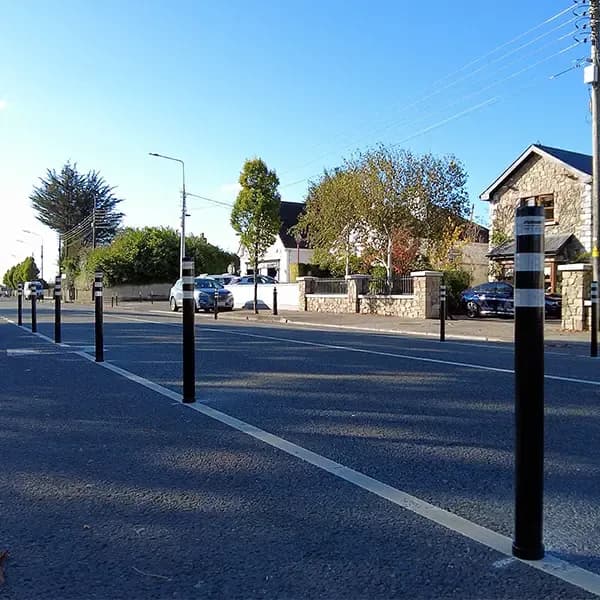

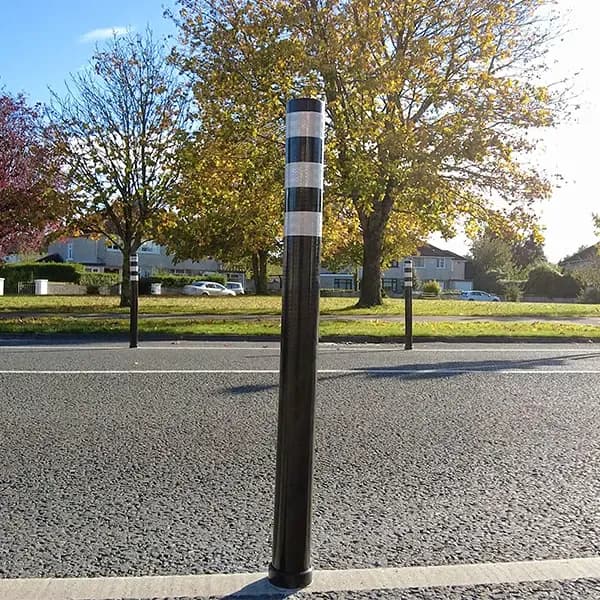

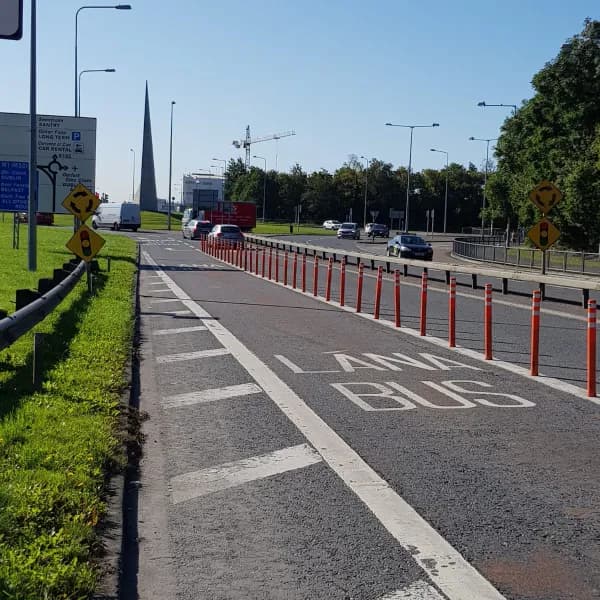

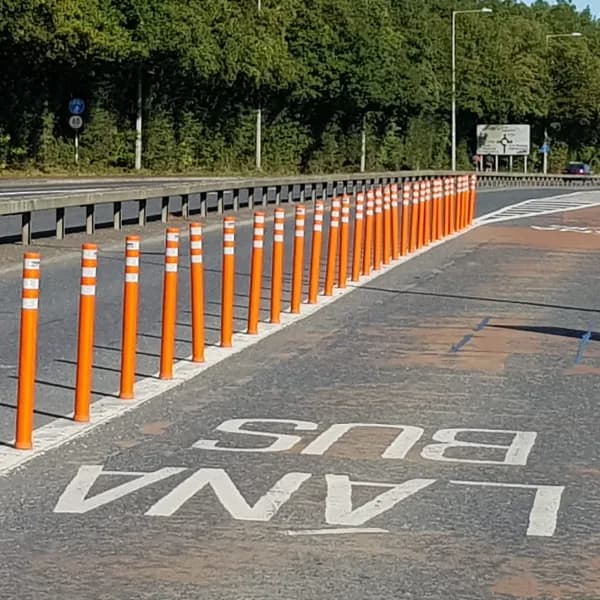

• Lane protection on roadways.

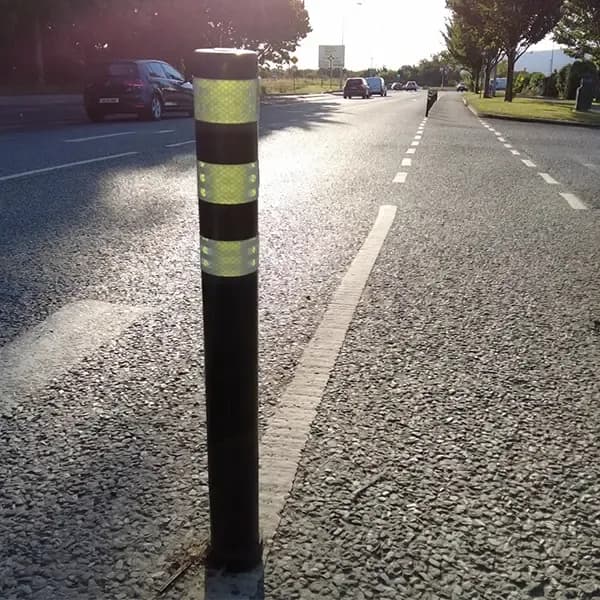

• Demarcation and guidance on cycle paths.
• Upgrades of existing streetscapes.
• Areas requiring flexible and impact-resistant bollards.

Features & Construction

• Highly flexible polyurethane construction material.
• 100% ability to return to its original shape after impact.
• UV and Thermal Degradation protection.
• Produced according to EN 13422.
• Features a Level III certified reflective screen according to EN 12899-2:2007.

Customisation Options

• Selection of colours.
• Reflective tape options (50mm).
• Available with an optional Key for easy removal and reinstallation (for removable versions).
• Various heights available: 450mm (QF450), 670mm (QF670), 800mm (QF800), 1000mm (QF1000).

Technical Specifications

Specification	Value
Height (above ground)	450mm (QF450), 670mm (QF670), 800mm (QF800), 1000mm (QF1000)
Screw Depth (below ground)	100mm
Diameter (Base)	Ø80mm (Ø100mm)
Reflective Tape	50mm
Total Weight (approx.)	1.0kg (QF450), 1.2kg (QF670), 1.7kg (QF800), 1.9kg (QF1000)
Material	Reboundable polyurethane

Installation & Maintenance

• Installation: Designed for fast installation. A typical process involves drilling a 24mm hole (100mm deep) into the road surface, thoroughly cleaning it, pumping chemical anchor into the hole, and then inserting the bollard assembly with a twisting motion. For removable use, a 1mm PVC base disc is applied; for permanent use, it's applied without the disc. Curing times depend on the adhesive datasheet. An optional Key allows for easy removal and reinstallation. Further advice on QUICK-FLEX bollards including specific installation requirements is available from IPL group.
• Maintenance: Highly durable material resistant to multiple impacts and offers UV and Thermal Degradation protection, ensuring long-term low maintenance.
