Product Overview

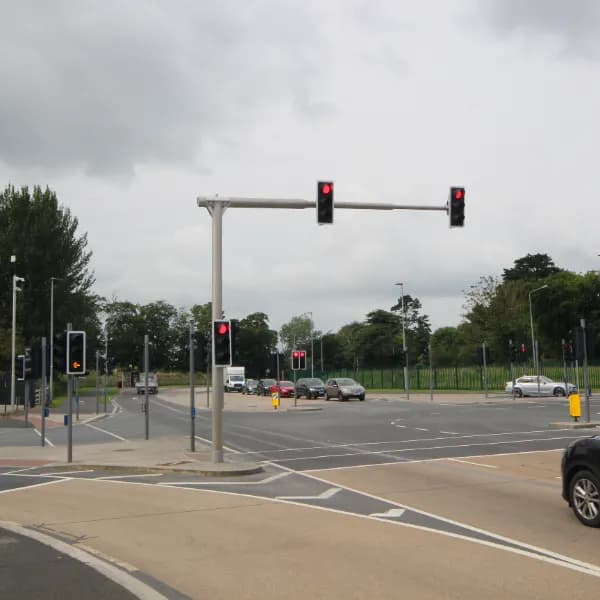

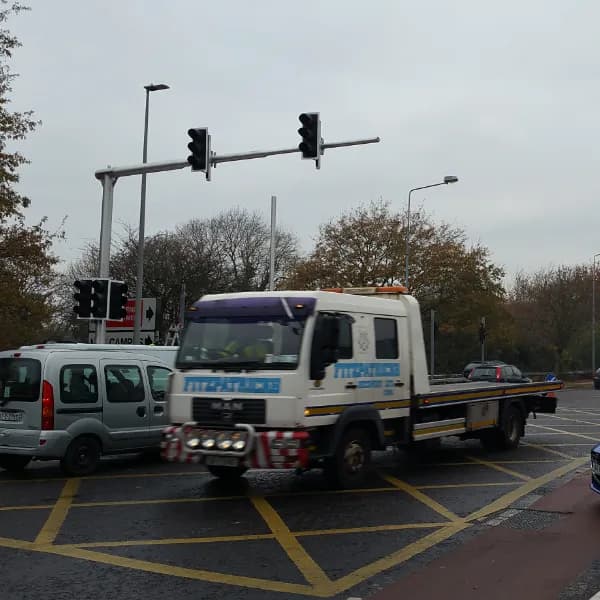

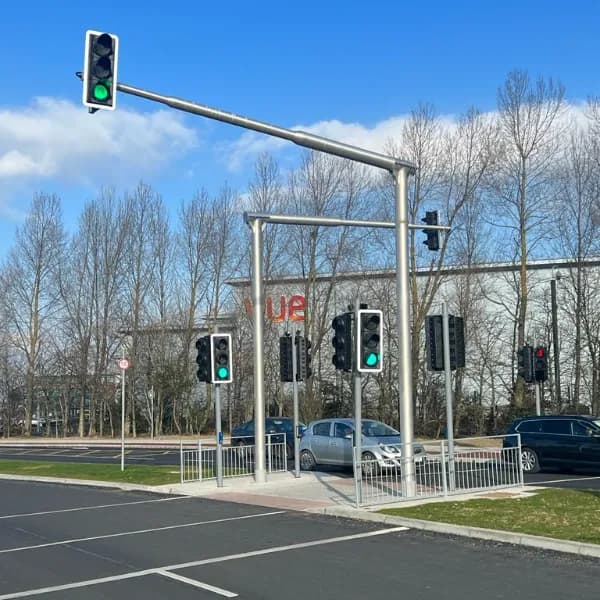

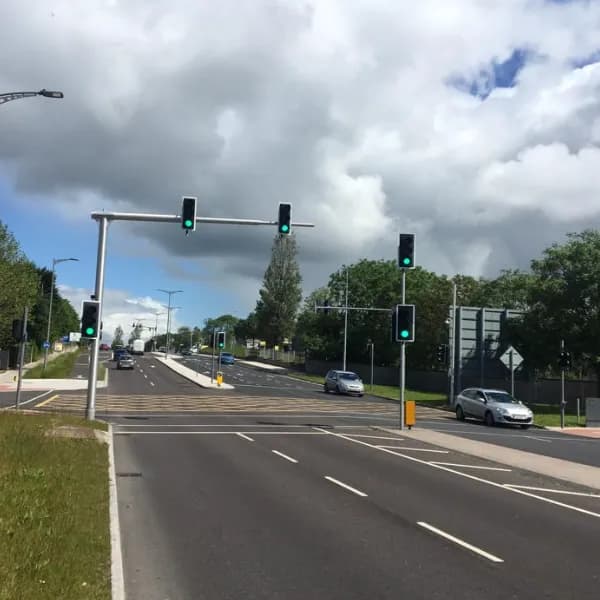

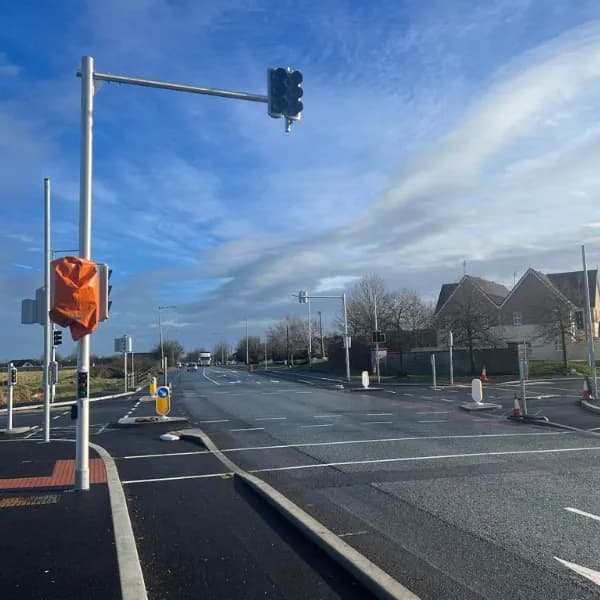

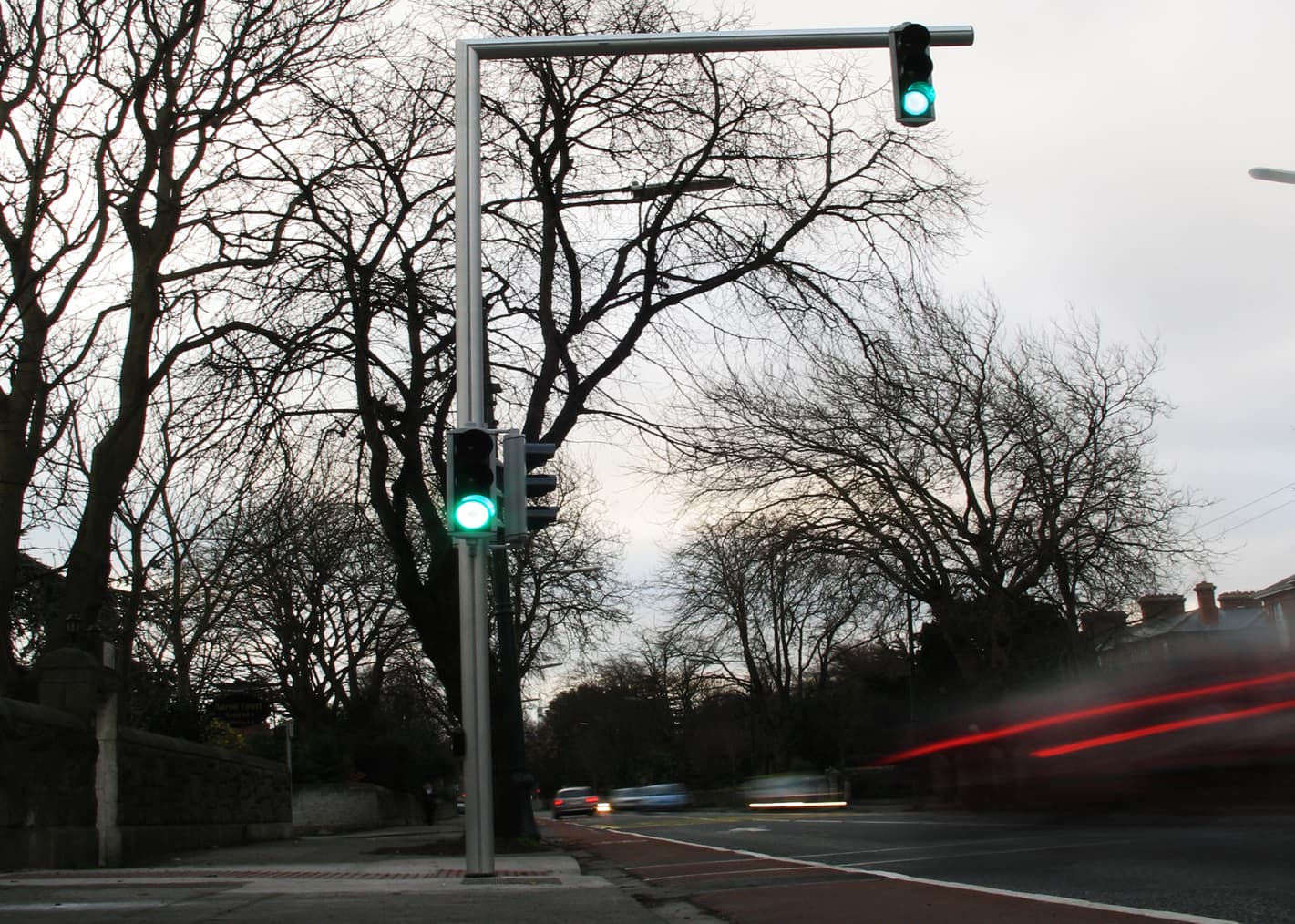

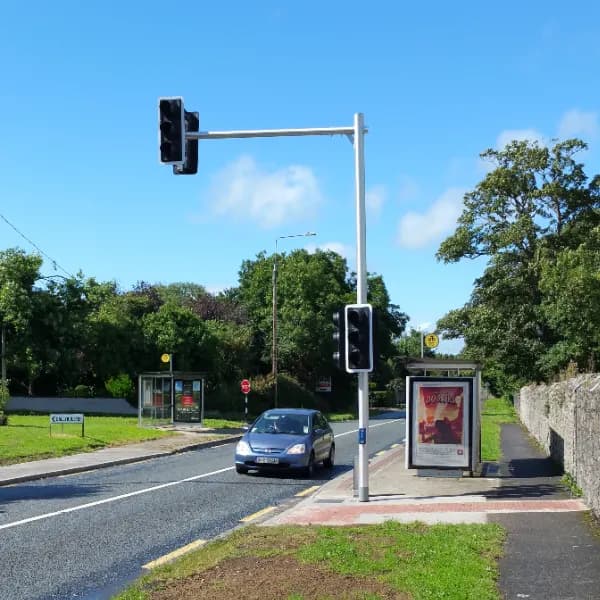

The Hydro Cantilevers, offered by IPL group, are lightweight and robust structures designed to safely facilitate traffic in public spaces. Comprising a single upright leg of 4-8 meters high with a horizontal beam up to 11 meters long, they are engineered to withstand significant wind forces. Hydro Cantilevers are ideal for mounting traffic signals, street lighting, and various illuminated signs. Manufactured from durable, corrosion-resistant aluminium, these structures are extensively tested and certified to applicable European standards, ensuring reliability and safety.

Key Benefits

• Lightweight & High Load Capacity: Engineered as lightweight structures capable of withstanding a big load of wind forces.
• Certified Safety: Products are extensively tested and certified according to applicable European standards EN 12899 and tested according to EN 12767, ensuring reliability and public safety.
• Corrosion-Resistant Aluminium: The upright and bracket are supplied in brushed finished aluminium, which naturally does not need protection against corrosion.
• Versatile Mounting: The horizontal beam can accommodate a number of traffic signal heads and signs. Possibilities include combining traffic signals, street lighting, and any illuminated signs.
• Custom Strength Calculation: Strength calculations are made on the basis of your specific demands.
• Ease of Installation: Users have praised the ease of installation, coupled with improvements to Health and Safety, particularly manual handling and the reduced requirement for working at height.
• Customisable Finish: Available in any RAL powder-coated finish in order to match existing street furniture.

Applications

Hydro Cantilevers are suitable for various applications in public spaces, primarily for traffic management and illumination:

• Mounting traffic signals over roadways.
• Integrating street lighting for illumination.
• Displaying illuminated signs and other traffic-related signage.
• Facilitating traffic flow in urban and motorway environments.

Features & Construction

• Consists of one upright leg and a horizontal beam.
• Leg height typically ranges from 4-8 meters.
• Beam length extends up to 11 meters.
• Manufactured from brushed finished aluminium.
• Available with an optional RAL powder-coated finish.
• Engineered to withstand significant wind forces.
• Strength calculations are made based on specific demands.

Customisation Options

• Custom strength calculations based on project demands.
• Optional RAL powder-coated finish to match existing street furniture.
• Integration with various traffic signals, street lighting, and illuminated signs.

Technical Specifications

Specification	Value
Structure Type	Cantilever
Leg Height	4-8 meters
Beam Length	Up to 11 meters
Material	Brushed finished aluminium (optional RAL powder-coated finish)
Standards Met	EN 12899 and EN 12767
Load Bearing	Withstands big load of wind forces; strength calculations based on demands.

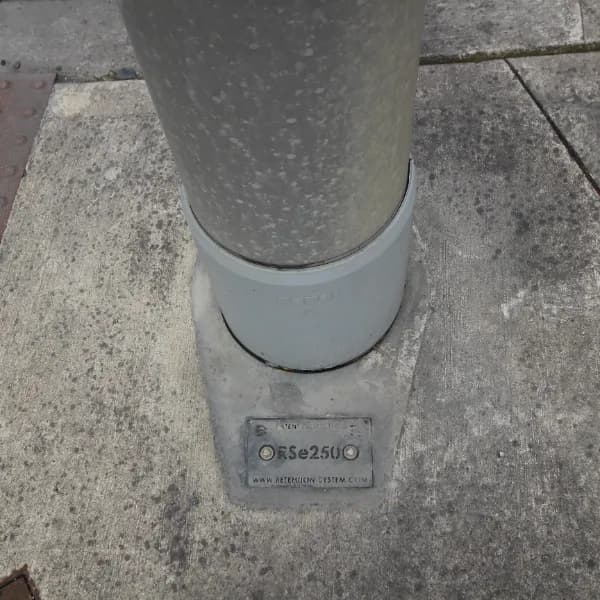

Foundation Compatibility	RETENTION SYSTEM™ Sockets (intelligent foundation solutions for installation and maintenance of posts)

Installation & Maintenance

• Installation: Designed for ease of installation, contributing to improvements in Health and Safety due to reduced manual handling and less requirement for working at height. Compatible with RETENTION SYSTEM™ sockets for efficient installation and maintenance.
• Maintenance: Brushed aluminium construction is inherently corrosion-resistant, reducing maintenance needs.
