Product Overview

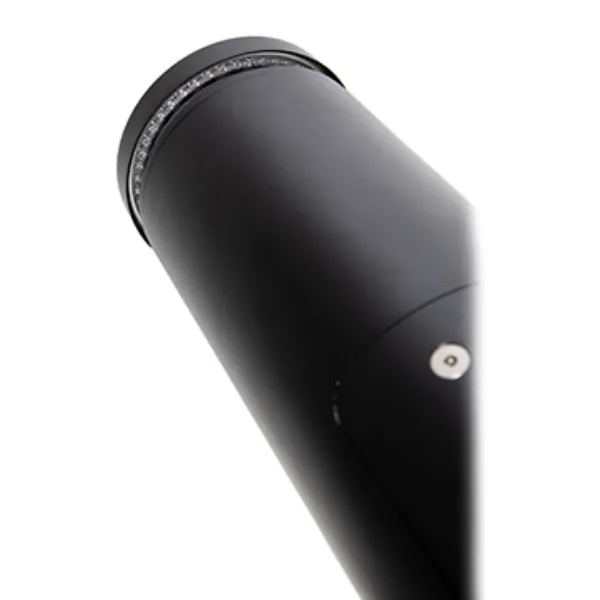

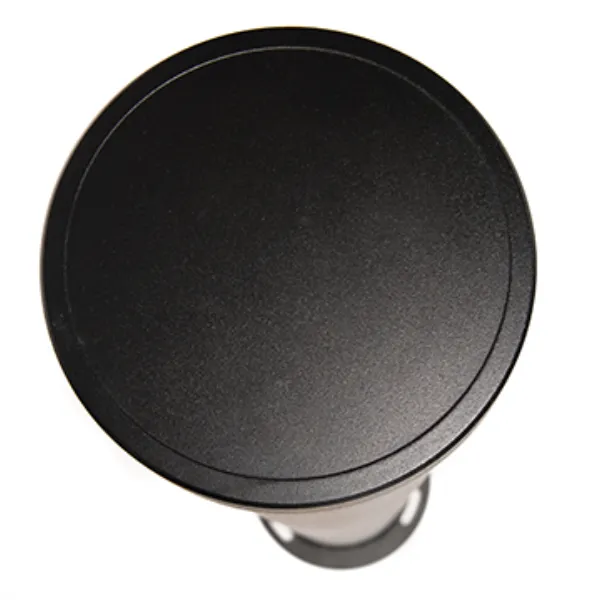

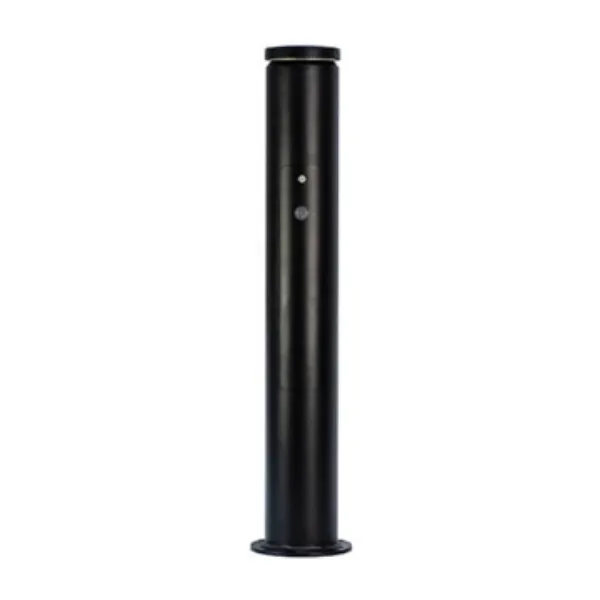

The Via Illuminated Bollard from IPL group is a high-performance, robust, and versatile lighting solution designed for a wide range of public and commercial outdoor spaces. Crafted from high-pressure die-cast LM6 aluminium and high-quality extruded 6063T6 aluminium, with a UV-stabilised polycarbonate lens, the Via bollard boasts exceptional durability with IP66 ingress protection and IK10 impact resistance. It offers advanced lighting control features, including in-built PowerSet and OptiSet switches, and is approved by the International Dark-Sky Association, making it ideal for optimising lighting designs while reducing light pollution.

Key Benefits

• Optimised Lighting Performance: Offers a wide range of wattages (5-19W), LED colour temperatures (PC-Amber, 2700K, 3000K, 4000K), and symmetric/asymmetric distributions for optimised and ecology-friendly lighting designs.
• Reduced Maintenance & Longer Life: Features a projected LED lifetime of L85 after 100,000 hours, significantly reducing maintenance costs and time. Its robust construction with IK10 impact rating and IP66 sealing ensures durability in tough environments.
• Advanced Control & Efficiency: Includes in-built PowerSet for high, medium, and low output selection, OptiSet for distribution selection, CLO (Constant Light Output) availability, Part Night Dimming (PND), and DALI compatibility for use with CMS.
• Dark-Sky Compliant: International Dark-Sky Association approved when using a colour temperature of 1750K or below at 0° degree tilt, allowing use in dark-sky applications to protect the night sky.
• Vandal Resistant & Secure: Designed with a vandal-resistant access door and anti-tamper door fixing as standard, ensuring robust security.
• Universal Mounting & Easy Installation: Supports root, socket, or flange mounting, making it suitable for installation in a wide range of environments. EN40 compliant door location, size, and cable entry slots make installation easier and save time and cost.
• Peace of Mind Warranty: Comes with a minimum 10-year warranty, reducing risk to the contractor and client.

Applications

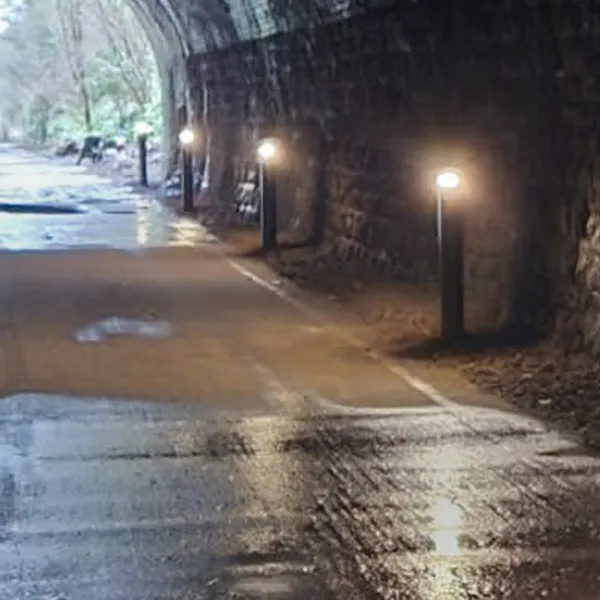

The Via Illuminated Bollard is specifically designed to meet lighting guidelines for footpaths and cycle paths, making it suitable for a wide range of outdoor illumination needs:

• Footpaths and cycle paths.
• Urban and pedestrian areas.
• Public and commercial spaces.
• Dark-sky applications requiring controlled light pollution.
• Environments requiring tough, vandal-resistant lighting.

Features & Construction

• Housing Material: High pressure die cast LM6 aluminium and high quality extruded 6063T6 aluminium.
• Housing Finish: Chromate-free pre-treatment, polyester powder coat in light grey (RAL9006), dark grey (RAL7022), or black (RAL9005).
• Lens Material: UV stabilised polycarbonate.
• IP66 Ingress Protection and IK10 Impact Resistance.
• In-built PowerSet switch for high, medium, and low output selection.
• In-built OptiSet switch for asymmetric and symmetric distribution selection.
• In-built ventilation (breather) plug for pressure equalisation.
• EN40 compliant door location, size, and cable entry slots.
• Vandal resistant access door and anti-tamper door fixing as standard.

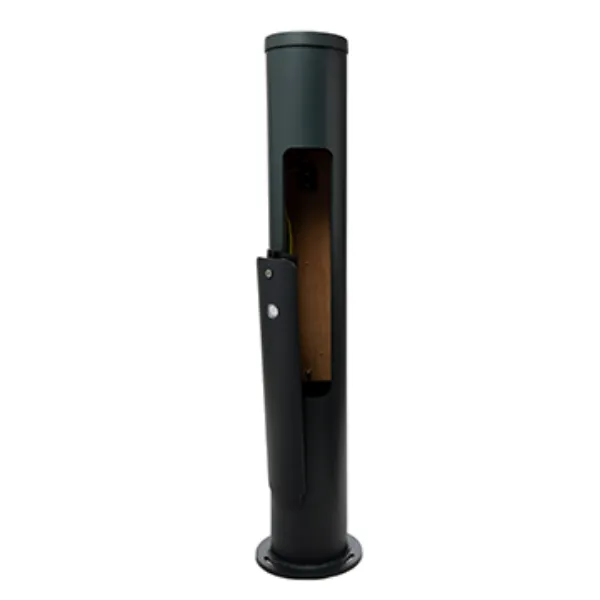

• Integral wooden backboard for mounting DNO cut-outs and isolators.
• Manufactured in Britain.

Customisation Options

• LED colour temperature: PC-Amber, 2700K, 3000K, or 4000K (PC-Amber and 2700K lumen outputs available upon request).
• Optional surge protection: 10kV/10kA.
• Optional miniature photocell available.
• Part Night Dimming (PND) and DALI compatible for use with CMS.
• Optional feeder pillar version available.
• Optional non-fused or fused isolators available.
• Shield Options: Universal Front/Rear and Side shields (e.g., 180° shield to stop light spillage).
• Custom finish colours from the available range (light grey, dark grey, or black).
• UMSUG codes available for full product range.

Technical Specifications

Specification	Value
System Power	5-19W (Asymmetric), 7-19W (Symmetric), 5-14W (PowerSet & OptiSet)
LED Colour Temperature (CCT)	PC-Amber, 2700K, 3000K or 4000K
Lumen Output	Up to 950lm (Asymmetric), Up to 1,100lm (Symmetric), Up to 750lm (PowerSet & OptiSet Asymmetric), Up to 868lm (PowerSet & OptiSet Symmetric)
Colour Rendering Index (CRI)	>70 (>55 for PC-Amber)
Lumen Maintenance	Projected L85 after 100,000 hours
Power Factor (Full Load/Half Load)	0.95/0.90
Operational Voltage	220-240VAC rms
Operating Frequency	50/60Hz
Inrush Current (Apk/50%-µS)	25A/150µs
Running Current	0.06A max
Surge Protection	10kV/6kV (standard); 10kV/10kA (optional)
Housing Material	High pressure die cast LM6 aluminium and high quality extruded 6063T6 aluminium
Lens Material	UV stabilised polycarbonate
Ingress Protection (IP) Rating	IP66
Weight	10.5kg
Impact Resistance (IK) Rating	IK10
Electrical Class	Class I
Ambient Operating Temperature	-20 to +45°C
Luminaire Diameter (diagram)	165 dia.
Overall Height (diagram)	1133mm (from diagram)
Planting & Foundation (Flange Mount)	X: 400mm, Y: 400mm, Z: 400mm, Bollard Planting Depth (BPD): 223mm
Planting & Foundation (Root Mount)	X: 300mm, Y: 300mm, Z: 600mm, Bollard Planting Depth (BPD): 550mm
Mounting Methods	Root, socket or flange
Warranty	Minimum 10 year

Installation & Maintenance

• Installation: Designed for easy installation, with universal mounting options (root, socket or flange). EN40 compliant door location, size and cable entry slots make installation easier. An optional feeder pillar version is available. Disconnect luminaire from the supply when conducting in-situ insulation resistance testing. Do not stare at operating lamp as it may be harmful to the eyes.
• Maintenance: Features a projected LED lifetime of L85 after 100,000 hours, significantly reducing maintenance. The robust construction (IK10, IP66) and durable materials (aluminium, UV stabilised polycarbonate) ensure longevity. Anti-tamper door fixing and accessible internal parts (for mounting DNO cut-outs and isolators) facilitate secure and easy maintenance. Cover fixing screws should be greased at each lamp change with silicone-based grease only. If the external flexible cable is damaged, it must be replaced exclusively by the manufacturer or qualified personnel. Ensure mains supply is fully isolated before servicing. Products should not be modified as it may render them unsafe and invalidate approvals.
