Product Overview

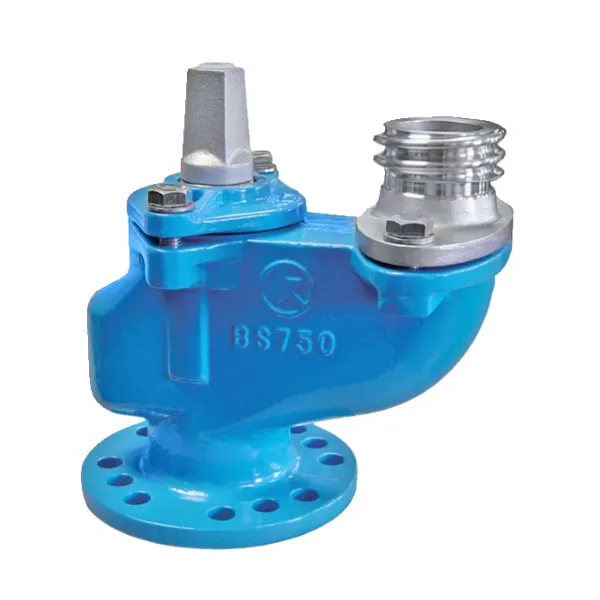

The Underground Hydrant BS 750 No. 5031 meets the requirements of British Standard BS 750. It is designed for a maximum working pressure of 16 bar (PN 16) and features a round thread connection (BSRT 2½"). All internal parts are made from corrosion-resistant materials, and the vulcanised elastomer sealing profile on the valve plug ensures optimum tightness within the body.

Key Benefits

• Meets the requirements of British Standard BS 750.
• All internal parts are made of corrosion-resistant materials.
• The valve plug ensures optimum tightness in the body.
• Internal parts can be removed without excavating the hydrant.

Features & Construction

• The body and head plate are made of ductile iron and are epoxy powder-coated inside and outside.
• The round thread connection and spindle are made of stainless steel.
• The valve plug is made of brass with vulcanised elastomer.
• The flange is sized and drilled according to EN 1092-2 PN 16.
• Operation is performed using a valve key on a 29/35 square cap.

Technical Specifications

• Working Pressure: Maximum 16 bar (PN 16).
• Nominal Diameter (DN): 80.
• Weight: 17.0 kg.
• Round Thread Connection: BSRT 2½".

Installation & Maintenance

• All internal parts can be removed without excavating the hydrant.
