Product Overview

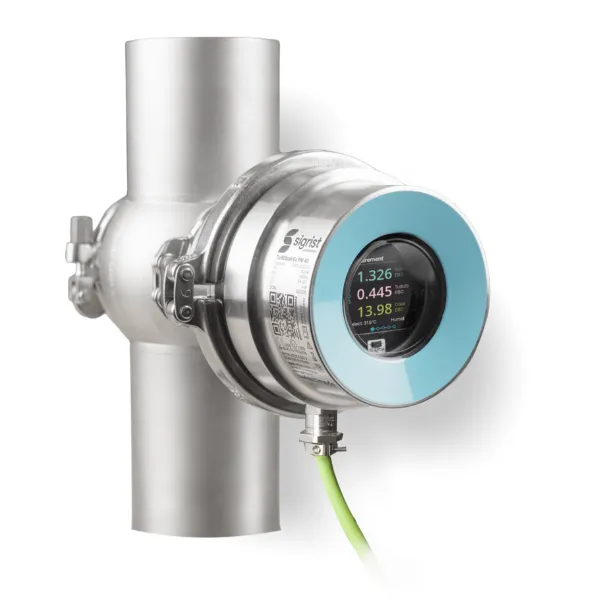

The TurBiScat Ex PM 40 is an advanced turbidity measuring device designed for high-precision in-line measurement in explosive atmospheres. It features a compact, seal-less design with robust components like Hastelloy and Sapphire, allowing for minimal maintenance and a wide range of process applications. The sensor uses two-angle scattered light measurement and an integrated two-beam measurement system to compensate for colour and window contamination, ensuring reliable data. The device includes integrated measurement display and communication modules, with easy operation possible via WLAN-capable devices.

Key Benefits

• Certified for hazardous areas: Zone 1, Ex db IIC T3/T4/T5/T6 Ga/Gb (temperature class dependent on medium).
• Two-Angle Measurement (90 degrees/25 degrees) for comprehensive turbidity detection with a single sensor head.
• Two-Beam Measurement for automatic compensation of colour and window contamination.
• Seal-less Design and robust materials ensure minimal maintenance and long-term durability.
• Wide Measuring Range of 0 to 4,000 NTU (0 to 1,000 EBC) with high resolution.
• Optional Colour Measurement at 430 nm in the same sensor.

Applications

• Filtration monitoring and control.
• Turbidity measurement in beverages, particularly spirits like Whisky (cold filtration) and Cognac.
• Used in the Beverage and Food industries.

Features & Construction

• Measuring Principle: 90 degrees/25 degrees scattered light measurement at 650 nm.
• Wavelength: 650 nm (Turbidity); 430 nm (Colour, optional).
• Sensor Head Material: Hastelloy C-22.
• Window Material: Sapphire.
• Housing Material: Stainless Steel 1.4462 / 1.4404.
• Operation: Via a Proximity Sensor or directly over a Mobile Device via WLAN.
• Calibration: Factory calibrated with Formazin. A solid reference is available for precise check and recalibration without Formazin.

Technical Specifications

Specification	Value
Turbidity Measuring Range	0 ... 4,000 NTU / 0 ... 1,000 EBC
Turbidity Resolution	0.001 NTU / 0.001 EBC
Colour Measuring Range	0 ... 200 E/m / 0 ... 50 EBC (optional)
Sample Temperature	-20 ... +180 degrees C (optional cooling may be required)
Max. Pressure	2 MPa (20 bar)
Ambient Temperature	-20 ... +60 degrees C
Protection Class	IP66

Interfaces

• Standard Interface (I/O): 6 configurable inputs/outputs, max. 4 current outputs (0/4 ... 20 mA), max. 4 digital outputs, and Modbus RTU.
• Digital/Fieldbus: Ethernet LAN with Power over Ethernet (PoE), Profibus DP-V1 Slave, and Profinet IO.
• WLAN Module: According to IEEE 802.11 b/g/n for configuration via web server and mobile devices.
• Diagnostics: Integrated Sensor-Check function verifies the function of the light receivers and amplifiers.
