Product Overview

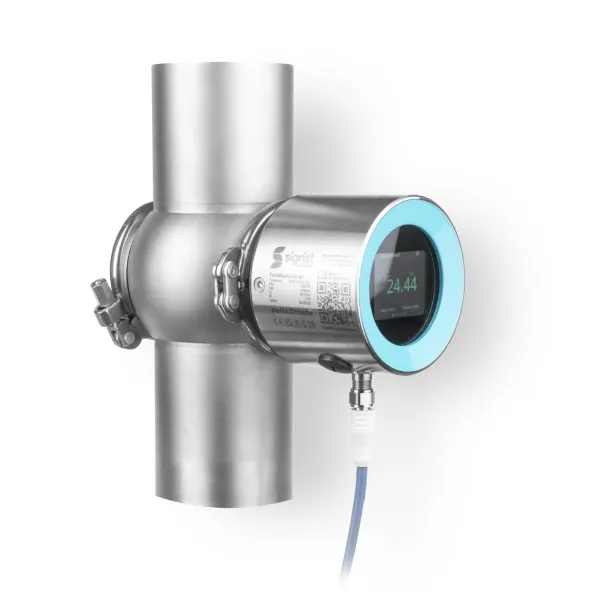

The TurbiGuard AD 40 is an in-line measuring device for medium to high turbidity, suitable for continuous process monitoring. It uses a highly reliable LED-based absorption measuring system. This modern process measuring device is designed for seamless integration into existing process lines and offers a very short reaction time for real-time monitoring. Its fully optimised, seal-less design with sapphire windows ensures extremely low maintenance and high reliability, contributing to low Total Cost of Ownership (TCO) and a fast Return on Investment (ROI).

Key Benefits

• Real-Time Monitoring with a very short reaction time.
• Extremely Low Maintenance due to the seal-less design.
• Hygienic Design compliant with EHEDG standards and Regulation (EC) No 1935/2004 for food contact materials.
• High Measuring Range with linearised factory calibration in EBC or NTU.
• Process Control helps to avoid faulty batches and secures end-product quality by measuring turbidity and recognising deviations early.
• Low TCO (Total Cost of Ownership) and fast ROI (Return on Investment).

Applications

• Turbidity measurement or monitoring in beverages such as beer and fruit juices.
• Control of centrifuges, separators, whirlpools, etc.
• Filter performance and filter breakthrough monitoring.
• Determination of solids concentration.
• Yeast pitching and yeast dosing.

Features & Construction

• Measuring Principle: Absorption.
• Light Source: LED 870 nm.
• Housing Material: The housing is made of Stainless Steel 1.4301 / AISI 304.
• Sensor Head Material: Made of Stainless Steel 1.4404 / AISI 316L.
• Window Material: Sapphire.
• Display: Integrated 2.4" touchscreen colour display with 320 x 240 pixel resolution for information and settings directly at the measuring point.
• Internal Monitoring: Permanent humidity and temperature monitoring.
• Calibration: Factory linearised calibration with Formazin.

Technical Specifications

Specification	Value
Measuring Range	0 ... 2000 EBC (0 ... 8000 NTU)
Accuracy (0-1000 EBC)	+/- 3%, min. +/- 3 EBC
Accuracy (1000-2000 EBC)	+/- 5%
Resolution	0.5 EBC / 2 NTU
Medium Temperature	-10 ... +100 degrees C
Process Pressure (Max.)	1 MPa (10 bar) @ 100 degrees C
Pipe Connections	DN 40 ... DN 150, 1 1/2" ... 6"
Protection Class	IP 66
Power Supply	24 VDC +/- 10% (Interface PoE accordingly)

Interfaces

• Standard Output (LT): 1 current output 0/4... 20 mA (max. 700 Ohm), 1 digital input, 2 digital outputs.
• Configurable I/O (10): Up to 6 configurable inputs/outputs, including max. 4 current outputs (0/4... 20 mA) and max. 4 digital outputs.
• Fieldbus/Digital: Ethernet LAN connection with Power over Ethernet (PoE), Modbus RTU, Profibus DP-V1 Slave, and Profinet IO.
• Mobile Access: Access via Smartphones for extended configuration and maintenance.
