Product Overview

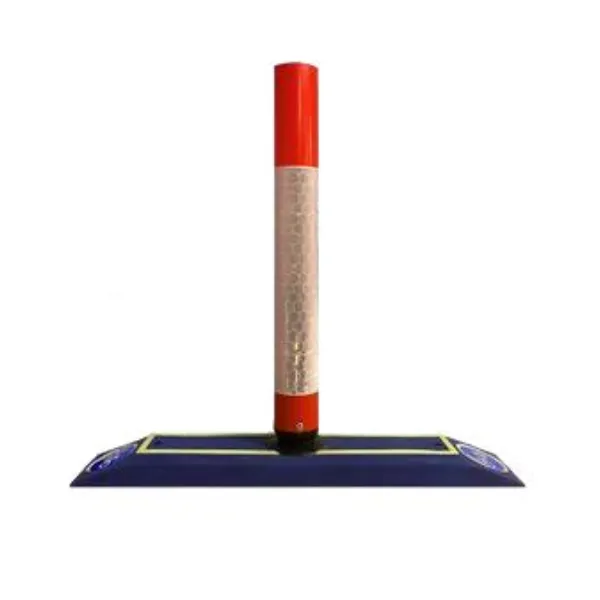

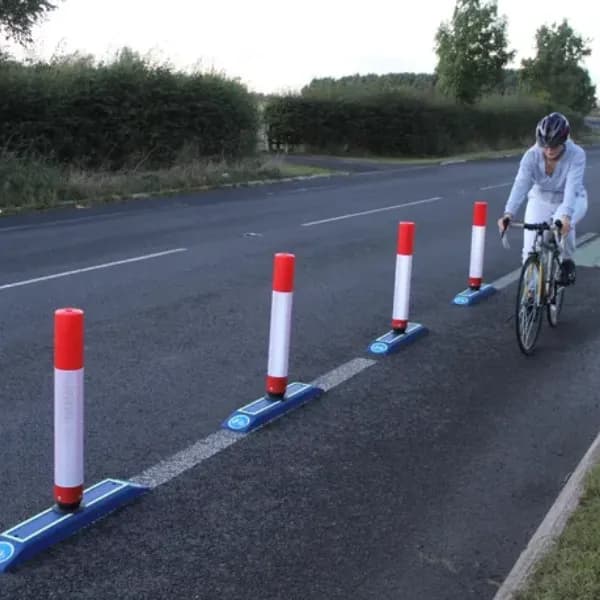

The i-glo The Illuminator, developed by IPL group, is an innovative cycle lane divider designed to create fully segregated cycle lanes with minimal footprint occupancy, making it ideal for installation in city centres where space is at a premium. Its base is made from a flexible pre-polymer, housing a reboundable reflective bollard that provides an impact-resistant delineator for motor vehicle traffic. Featuring unique 'glow in the dark' technology, The Illuminator absorbs solar light during the day and motor vehicle lights at night, providing local illumination that enables councils to lower carbon emissions by reducing street light usage. Its 'reflect and glow' hazard warning strips illuminate the delineator and surrounding cycle lane, guiding cyclists, preventing lane ingression from motor vehicles, and eliminating pedestrian trip accidents.

Key Benefits

• Effective Cycle Lane Segregation: Creates fully segregated cycle lanes with minimal footprint, ideal for space-constrained city centres.
• Superior Visibility & Safety: Features unique 'glow in the dark' technology and 'reflect and glow' hazard warning strips for continuous illumination, guiding cyclists and enhancing safety in low light.
• Impact Resistant: Utilises a 'flexible' pre-polymer base and a 'reboundable' reflective bollard, making it highly resistant to motor vehicle impacts.
• Eco-Friendly & Cost-Saving: Helps councils lower carbon emissions by reducing street light usage due to its self-illuminating capability.
• Prevents Accidents: Guides cyclists, prevents motor vehicle lane ingression, and eliminates pedestrian trip accidents.
• Fast Installation: Designed with 2 bolt fixing to reduce installation time.

Applications

The Illuminator is specifically designed for cycle lane segregation and enhancement in various urban environments, including:

• City centres where space is at a premium.
• Cycle paths requiring clear demarcation and illumination.
• Areas needing enhanced safety for both cyclists and pedestrians.
• Installations aiming to reduce reliance on traditional street lighting for environmental and cost benefits.

Features & Construction

• Base made from a 'flexible' pre-polymer.
• Houses a 'reboundable' reflective bollard.

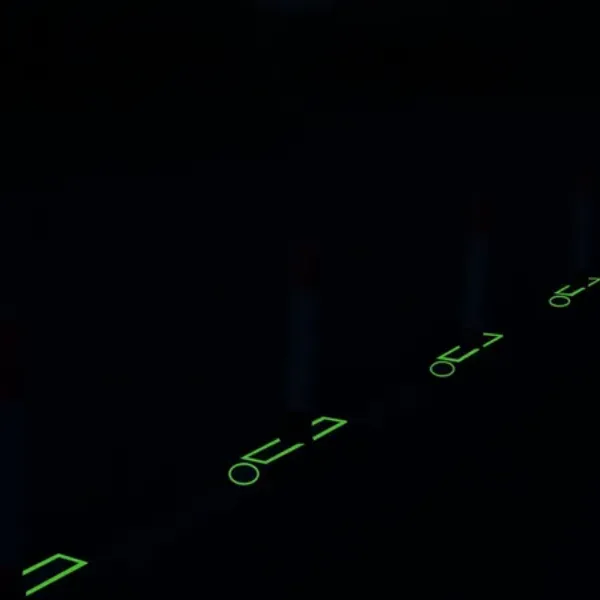

• Unique 'glow in the dark' technology that absorbs solar light and motor vehicle lights.
• 'Reflect and glow' hazard warning strips.
• Designed to be impact resistant to motor vehicle traffic.
• Total height: 750mm (Reflective Bollard Post).
• Base dimensions: 890mm (length) x 50mm (height).
• Uses M10 bolts for fixing.

Customisation Options

• (No specific customisation options are explicitly mentioned in the provided datasheet beyond its inherent design and features.)

Technical Specifications

Specification	Value
Height (Reflective Bollard Post)	750mm
Base Length	890mm
Base Height	50mm
Fixing Bolts	M10
Base Material	Flexible pre-polymer
Bollard Type	Reboundable reflective
Illumination Duration	12 hours (helps reduce carbon emissions)

Installation & Maintenance

• Installation: Features 2-bolt fixing to reduce installation time.
  1. Measure and mark required distance between cycle delineators and centre the delineator.
  2. Mark the M10 holes on either side of the delineator.
  3. Using a 10mm masonry drill bit, drill to the required depth of the anchor bolts.
  4. Line the delineator back up with holes, insert anchor bolts, and tighten until resistance to the correct torque setting.
  Further information and installation requirements are available from IPL group.
• Maintenance: Impact resistance reduces the need for replacement, making it a sustainable solution. The 'glow in the dark' technology eliminates the need for external power and associated maintenance.
