Product Overview

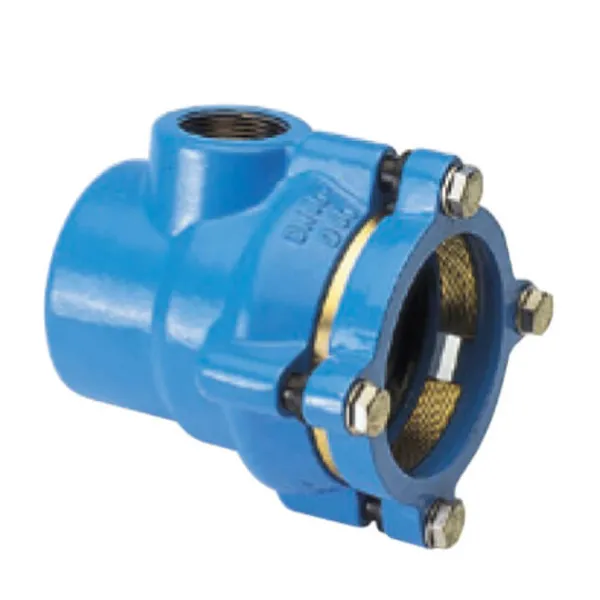

The System 2000 - End Cap (No. 8075) is designed to provide a secure and robust termination for PE and PVC pipes. This end cap is available with an optional axial or radial threaded outlet (1" to 2"), offering versatility for various pipeline configurations. It is rated at PN 16 and is a key component within the System 2000 range of fittings, ensuring a high-tensile restraint connection. Manufactured from durable materials such as epoxy powder-coated ductile iron, with stainless steel bolts and elastomer seals, it guarantees reliability and a long service life in demanding environments.

Key Benefits

• Provides secure and robust termination for PE and PVC pipes.
• Optional axial or radial threaded outlet (1" to 2") for versatile connections.
• High-tensile restraint connection.
• Durable construction ensures reliability and long service life.

Applications

• Terminating PE and PVC pipelines.
• Applications requiring a secure end point with optional threaded connections.

Features & Construction

• Body: Made of ductile iron, epoxy powder coated.
• Lock ring: Made of ductile iron, epoxy powder coated.
• Grip ring: Made of brass.
• Hexagonal bolts: Made of stainless steel.
• Lip seal ring: Made of elastomer.
• Spacer bushes: Made of PE.
• Optional axial or radial threaded outlet (1"-2").

Technical Specifications

The System 2000 End Cap (No. 8075) is available for various pipe nominal diameters (pipe A) and is rated at PN 16.

Ø pipe A (mm)	L (mm)	E (mm)	B (mm)	Weight (kg)
63	106	80	124	2.7
75	138	82	138	3.2
90	152	85	152	4.6
110	159	85	172	6.4
125	193	87	193	6.1
140	169	93	210	7.7
160	180	105	236	8.6
180	192	113	258	11.7
200	203	125	284	14.5
225	224	128	314	16.5
250	263	145	347	20.5
280	266	148	376	25.0
315	313	174	422	33.5

Installation & Maintenance

• Pipe installation involves chamfering the pipe and using lubricant (not oil).
• Push the pipe firmly to the end of the socket.
• Tighten the lock ring bolts crosswise until the lock ring is tight on bushes. Adhere to the maximum tightening torque for the lock ring.
• For PE pipes with thin walls (SDR 21) and low internal pressure, using a support liner is recommended.
• For dismantling, loosen and remove lock ring bolts, then twist and withdraw the pipe.
