Product Overview

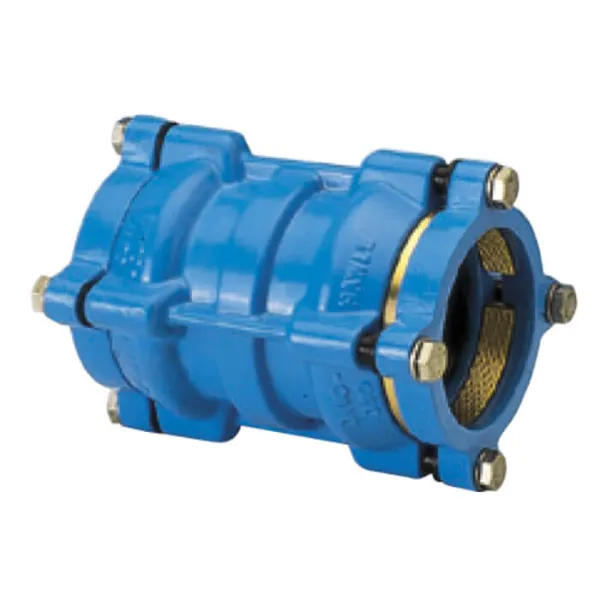

The System 2000 - Coupling (No. 0430 Connector) is a push socket system designed for high-tensile restraint connections with both PE (PE 80/100, EN 12201, DIN 8074) and PVC pipes (EN ISO 1452-2). This coupling features a unique lip seal ring that allows for easier insertion of the pipe into the socket, and a robust pipe restraining system that securely pushes the pipe into the seal and chamfer. It offers an absolutely restraint connection, making it highly reliable for demanding pipeline applications. For PE pipes with thin walls (SDR 21) and low internal pressure, using a support liner is recommended. The coupling is manufactured from ductile iron with a brass grip ring and stainless steel hexagonal bolts, ensuring durability and long-term performance.

Key Benefits

• High-tensile restraint push socket connection for PE and PVC pipes.
• Lip seal ring enables easier pipe insertion into the socket.
• Robust pipe restraining system ensures secure connection.
• Absolutely restraint design for reliable performance.
• Suitable for PE pipes (PE 80/100, EN 12201, DIN 8074) and PVC pipes (EN ISO 1452-2).
• Durable construction with ductile iron body, brass grip ring, and stainless steel bolts.

Applications

• Connecting PE and PVC pipes in various pipeline networks.
• Applications requiring absolutely restraint pipe connections.

Features & Construction

• Body: Made of ductile iron, epoxy powder coated.
• Lock ring: Made of ductile iron, epoxy powder coated.
• Grip ring: Made of brass (from DN 300 bronze).
• Hexagonal bolts: Made of stainless steel.
• Lip seal ring: Made of elastomer.
• Spacer bushes: Made of PE.
• Push socket for high-tensile restraint connection.

Technical Specifications

The System 2000 Coupling (No. 0430 Connector) is available for various pipe nominal diameters (pipe A) and is rated at PN 16.

Ø pipe A (mm)	L (mm)	E (mm)	B (mm)	Weight (kg)
63	171	80	124	3.6
75	175	82	138	4.3
90	181	85	152	5.8
110	181	85	172	6.5
125	185	87	193	8.2
140	197	93	210	9.0
160	221	105	236	12.0
180	241	113	258	19.0
200	261	125	284	24.0
225	265	128	314	28.0
250	300	145	347	34.0
280	306	148	376	40.5
315	358	174	422	62.5
355	464	237	472	98.0

Installation & Maintenance

• Pipe installation involves chamfering the pipe and using lubricant (not oil).
• Push the pipe firmly to the end of the socket.
• Tighten the lock ring bolts crosswise until the lock ring is tight on bushes. Adhere to the maximum tightening torque for the lock ring.
• For PE pipes with thin walls (SDR 21) and low internal pressure, using a support liner is recommended.
• For dismantling, loosen and remove lock ring bolts, then twist and withdraw the pipe.
