Product Overview

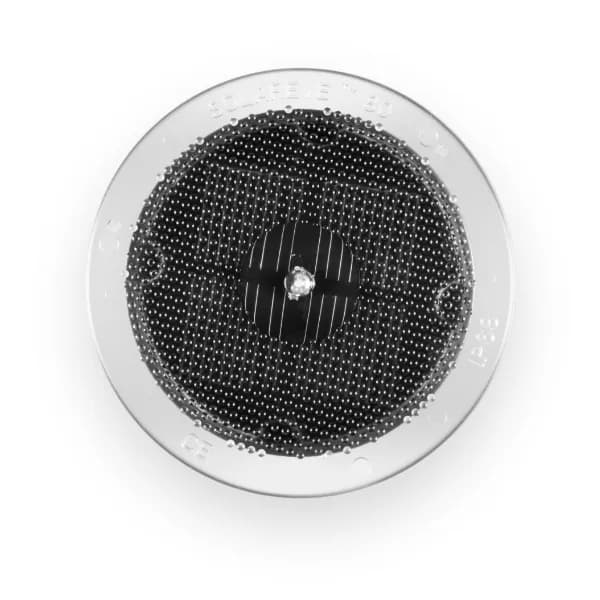

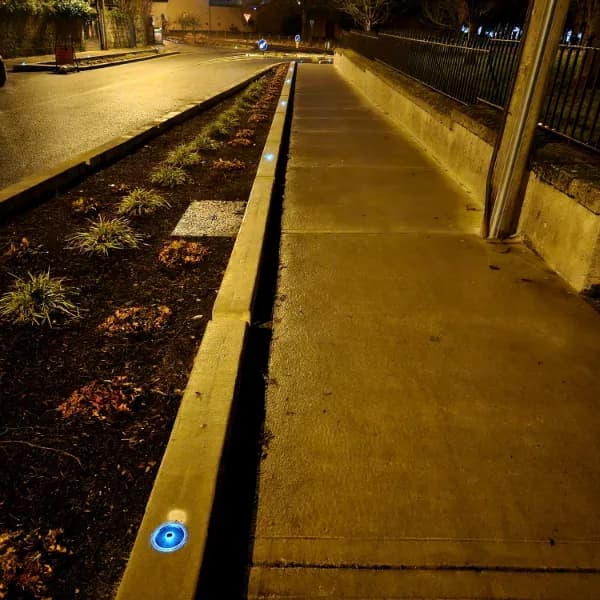

The Solareye80 Solar Path Light from IPL group is an eco-friendly, off-grid ground lighting solution designed to guide cyclists and pedestrians safely through outdoor spaces. By creating a welcoming, illuminated environment without the need for expensive mains power connections, it bridges the gap between environmental conservation and public safety. Specifically engineered and real-time tested for challenging Irish and UK weather conditions, the Solareye80 is a fully sealed, waterproof unit providing exceptional wayfinding capability. Fitting almost flush with the ground (protruding just 6mm), it offers unique 360° visibility up to 500 meters, making it the premier choice for outdoor pathways, cycle tracks, and public parks.

Key Benefits

• Eco-Friendly & Budget-Smart: Powered entirely by renewable green solar energy. With zero cabling or trenching required, installation costs are low and ongoing energy bills are non-existent.
• Virtually Indestructible: Constructed from industrial-grade polycarbonate and compression-tested to withstand up to 55 tonnes. Boasting an IK10 impact rating, it is highly vandal-resistant.
• Weatherproof Performance: Engineered for Northern European climates with a fully sealed IP68 waterproof and dustproof rating, ensuring flawless performance year-round.
• Maintenance-Free Longevity: Built with high-grade LFP (Lithium Iron Phosphate) batteries offering an anticipated lifespan of over 8 years, paired with LEDs rated for 100,000 hours of operation.
• Rapid, Low-Disruption Installation: An experienced two-person team can install up to 20 units per hour using simple drilling tools and all-weather adhesive, meaning pathways can often remain open during installation.
• Skid-Resistant Design: Low-profile 6mm raised dome is skid-resistant to keep cyclists and pedestrians safe in wet conditions.

Applications

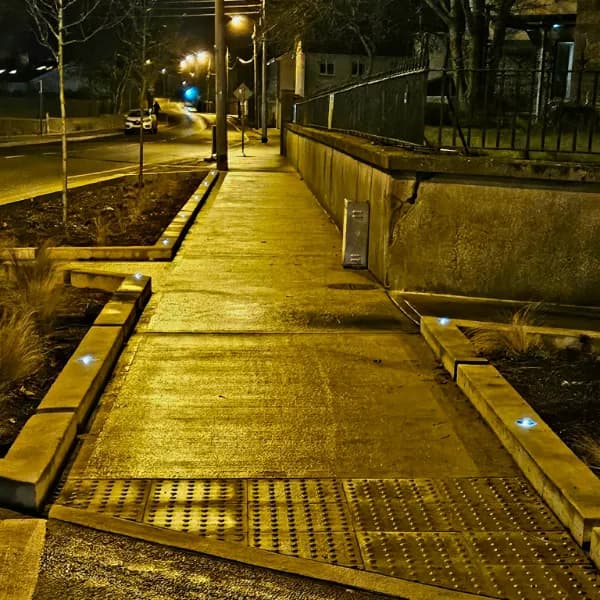

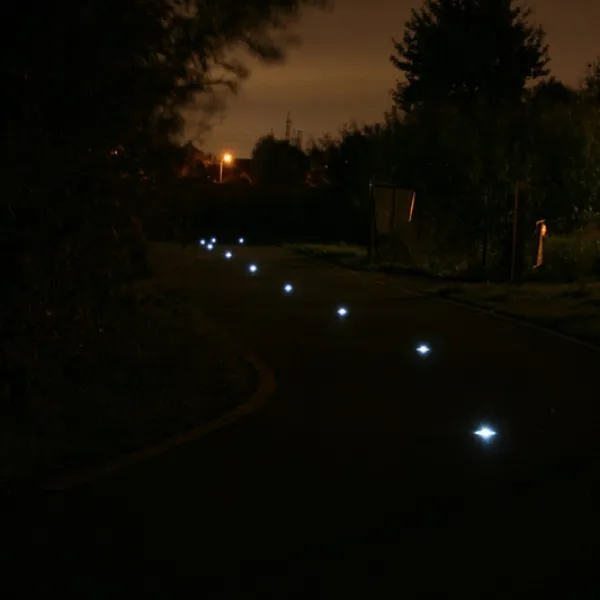

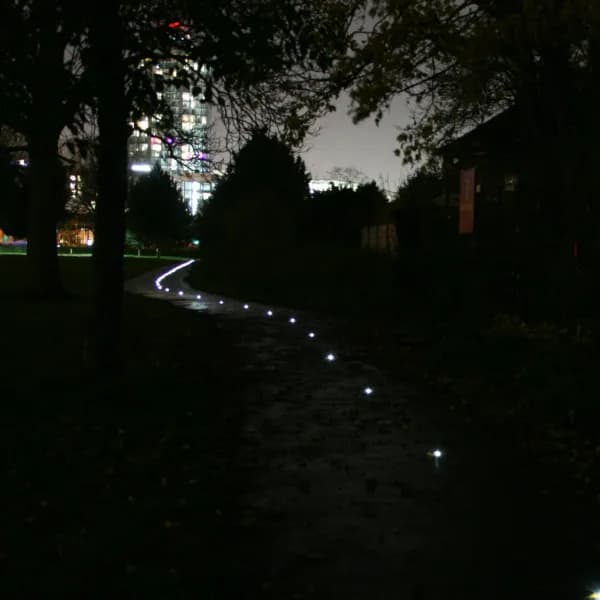

The Solareye80 is the ideal wayfinding option for delineating pathways where grid connection is unfeasible or cost-prohibitive:

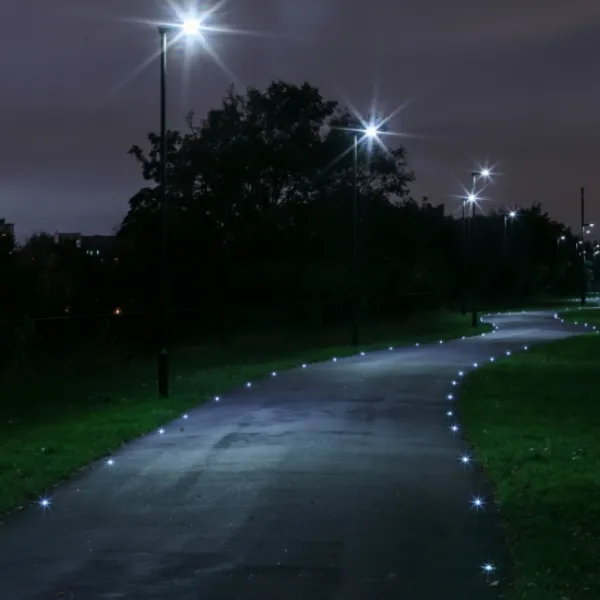

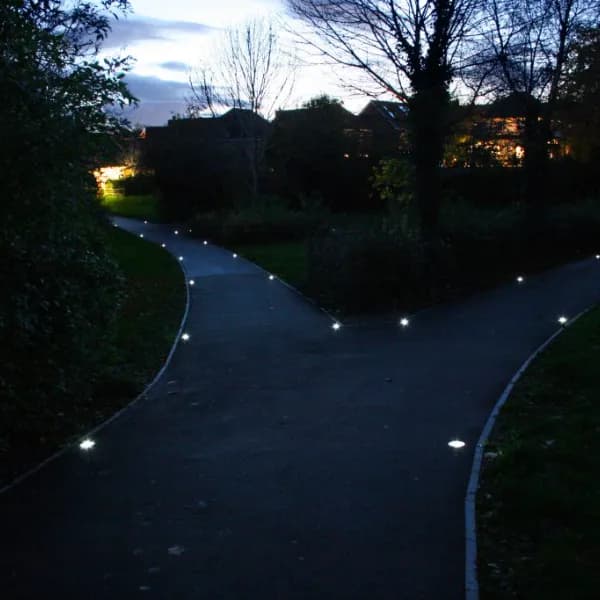

• Cycle paths, greenways, and pedestrian walkways.
• Public parks, canal paths, and recreational trails.
• Dark-sky reserves and conservation-sensitive areas.
• Commercial estates, university campuses, and residential developments.

Features & Construction

• Material: Heavy-duty, industrial-grade polycarbonate (compression tested to 55 tonnes).
• Impact Rating: IK10 certified (highly vandal-resistant).
• Waterproof Rating: IP68 fully sealed unit.
• Light Source: LED with an ultra-long 100,000-hour lifespan.
• Battery: Long-life Lithium Iron Phosphate (LFP) battery (8+ years anticipated lifespan).
• Run Time (After Full Charge): Steady mode: 200+ hours; Flashing mode: 400+ hours.
• Automated Operation: Built-in light sensor for automatic dusk-to-dawn activation.
• Operating Temperature: Rugged design operates between -20°C and +70°C.

Customisation Options

The Solareye80 can be tailored to meet precise ecological and design specifications:

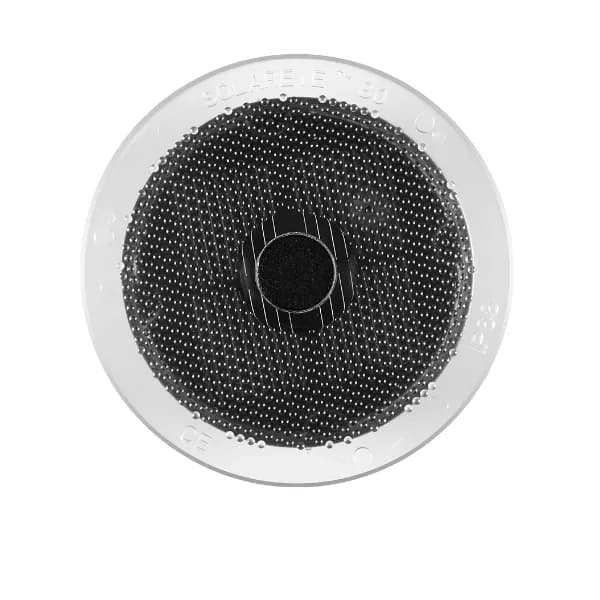

• The "Bat Hat" Modification: An optional physical shroud that reduces upward light spillage by 98%. This design is recognised by the Bat Conservation Trust as an effective mitigation method to protect nocturnal wildlife.
• LED Signals: Choose between a steady light or a slow flash (1 second on, 1 second off).
• Standard Colours: White (steady) and Red (steady).

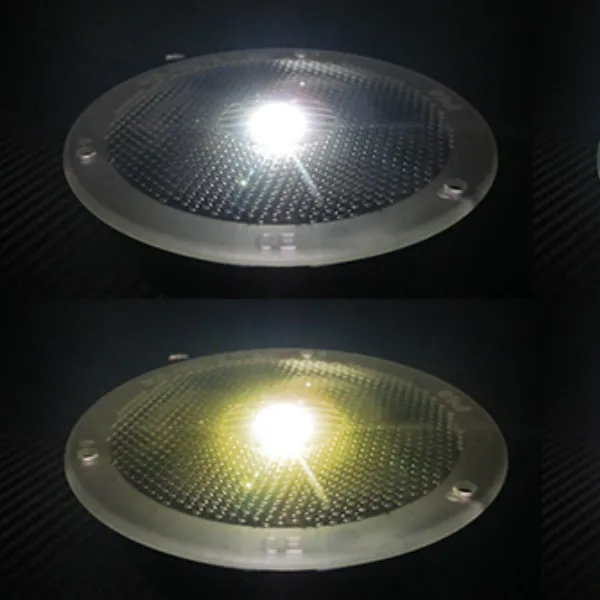

• Special Order Colours: Warm White (2,700K - ideal for Dark Sky compliance), Yellow, Green, and Blue.

Technical Specifications

Specification	Value

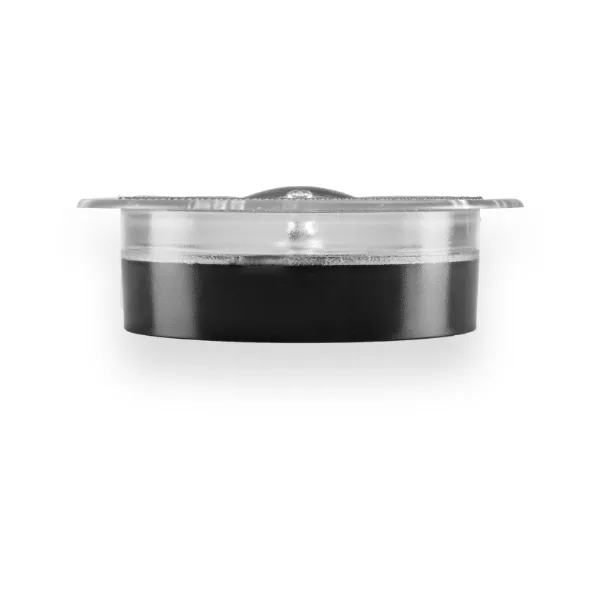

Body Dimensions	80mm body diameter (100mm top lip diameter)
Installed Height	6mm nominal (low-profile, bike-friendly)
Milling Depth	30mm
Unit Weight	275g (packaged box of 20 units weighs approx. 5.5kg)
Fixing Adhesive	Two-component, all-weather epoxy adhesive (e.g., JCP Polyester Styrene Free ETA Option 7)
Adhesive Working Time	4–6 minutes (at 15°C–29°C)
Approx. Curing/Open Time	50–70 minutes (dry to walk on in as little as 30 minutes at 25°C)

Installation & Maintenance

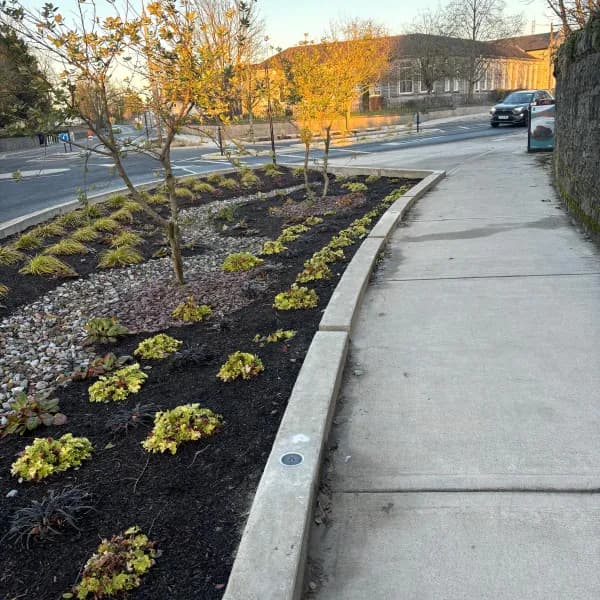

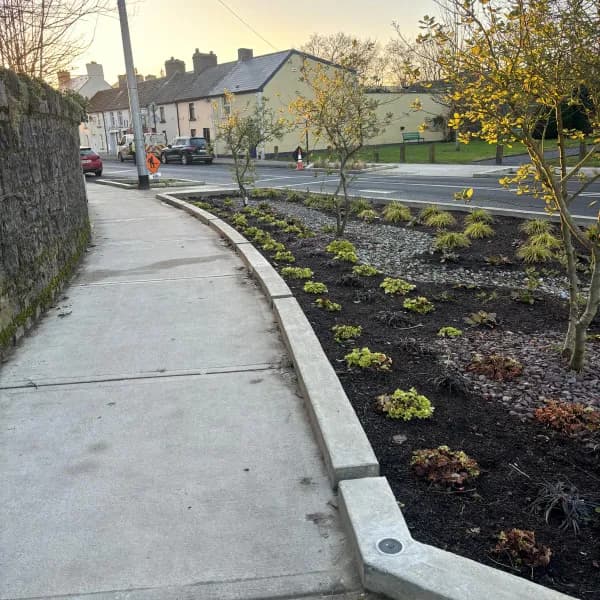

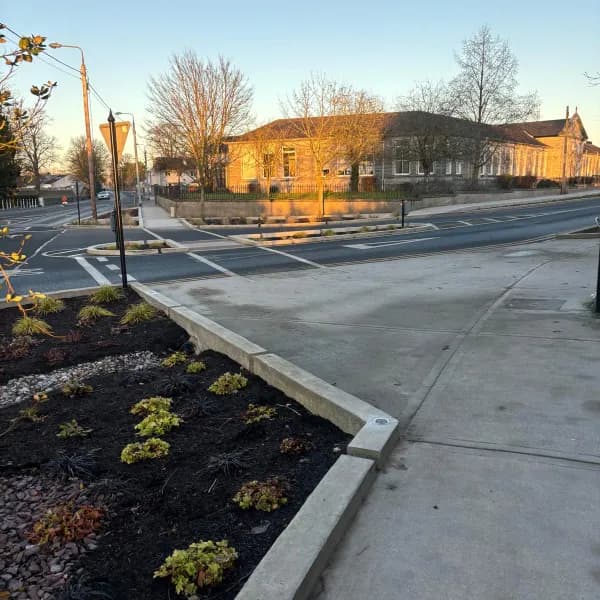

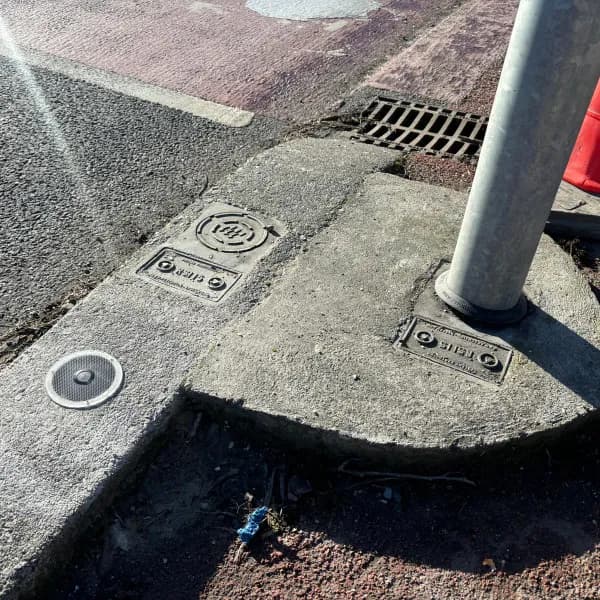

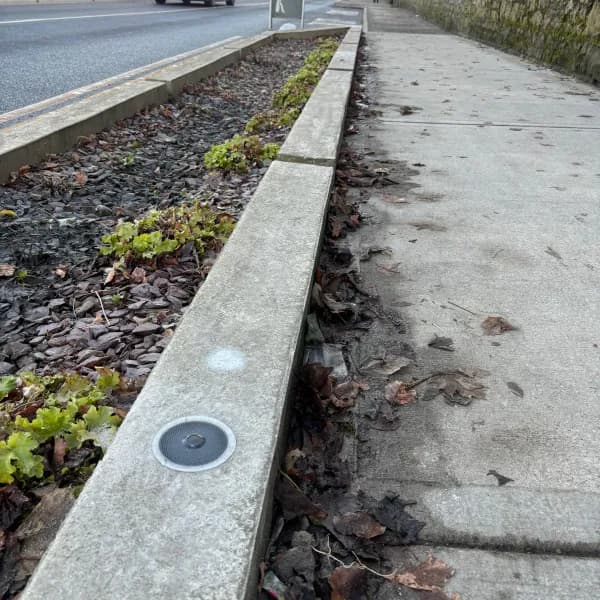

• Installation: Designed for straightforward retrofitting into asphalt, tarmac, concrete, or timber.
  1. Pre-mark and clean (sweep) the path.
  2. Core/mill an 80mm diameter hole to a depth of 30mm, clean out debris (a hand-held leaf blower is highly effective), and dry fit the unit to verify depth.
  3. Apply the two-component all-weather epoxy adhesive into the bottom of the milled hole.
  4. Insert and align the Solareye80 unit, pressing it down firmly until the lip sits flush (6mm above surface). The path can typically be reopened to foot traffic within 30 to 60 minutes of curing.
• Maintenance: Zero routine maintenance required. The solar-powered battery charges automatically in daylight (even in overcast weather), and rain naturally cleans the flat, skid-resistant dome.
