Product Overview

The SOLABEL Solar Powered Belisha Beacon from IPL group is a thoroughly tested solar-powered Belisha beacon, designed for reliable off-grid installation. It features a low-impact design solar panel, advanced technology batteries, and a low-energy LED beacon light engine, ensuring year-round operation. The SOLABEL is supplied complete with a pre-finished post, beacon, and solar engine, offering a sustainable and highly visible solution for road safety.

Key Benefits

• Reliable Off-Grid Operation: Solar powered, designed for reliable off-grid installation without the need for mains power connections.
• Year-Round Performance: Engineered to operate effectively throughout the year, even when solar charge is not consistently received (autonomy of >9 days without charge).
• Enhanced Visibility: Features a low-energy LED beacon light engine with a light output of 350 cd/m² and uniformity >0.66, ensuring clear visibility.
• Durable & Weather-Resistant: Constructed with a robust solar panel housing (UV-stabilised polyethylene moulding with galvanised steel support) and a durable LED beacon (UV-stabilised low-density polyethylene), ensuring longevity in outdoor conditions.
• Certified Compliance: Complies with BS 8442:2015 standards. The solar panel is IP54 and IK10 rated, and the LED beacon is IP54 rated.
• Long-Life Batteries: Utilizes Absorbent Glass Mat (AGM) batteries (4x12V/9Ah) mounted in the post base, known for their 8-12 year lifespan and high discharge cycles.

Applications

The SOLABEL Solar Powered Belisha Beacon is ideal for enhancing pedestrian safety and road visibility in various off-grid or remote locations, including:

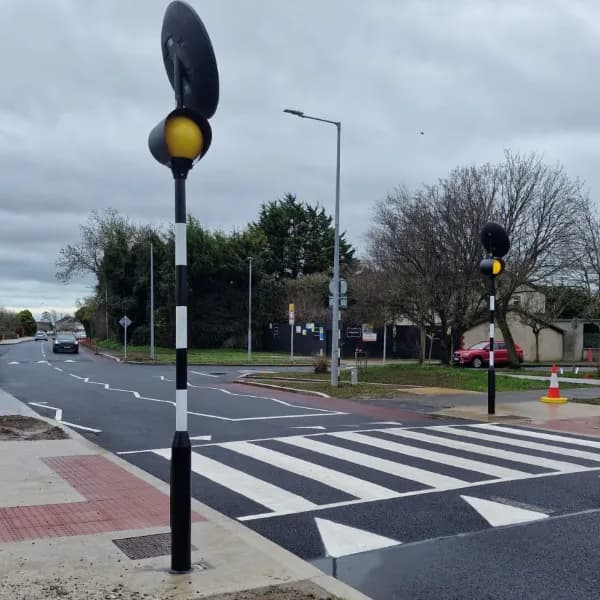

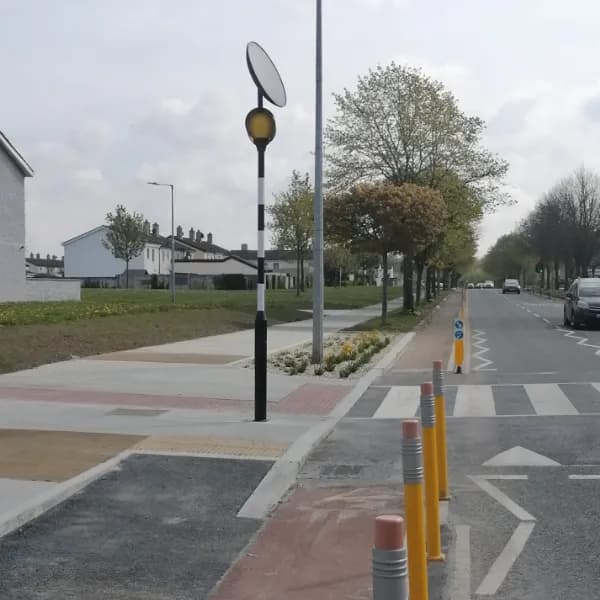

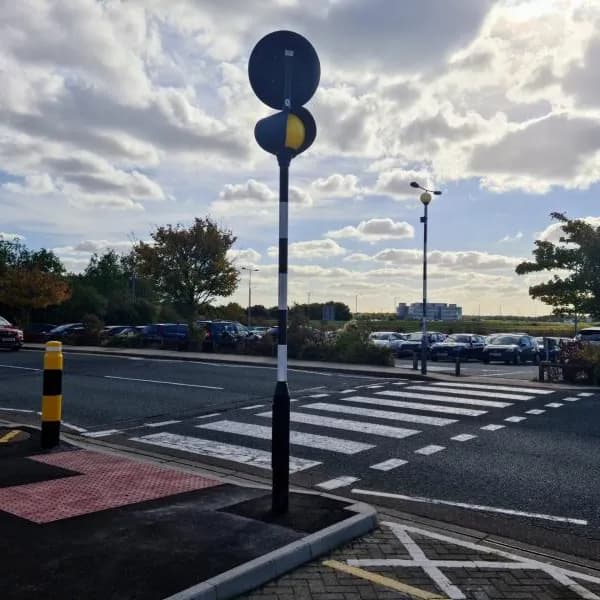

• Pedestrian crossings where Belisha beacons are required.
• Road safety applications in both urban and rural settings.
• Areas where reliable, low-maintenance, and off-grid illumination is essential.

Features & Construction

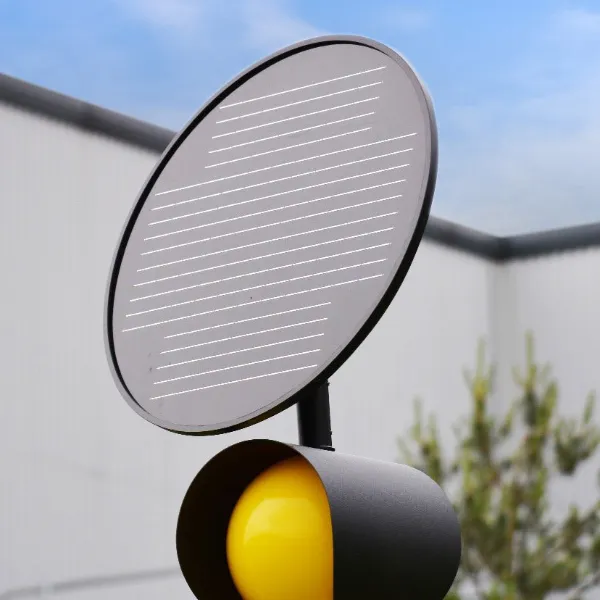

• Solar Panel: 750mm diameter, monocrystalline panel with 12V, 60 Watt output. Impact resistance IK10. Solar panel set at 22°. Housing made of rotationally moulded U.V. stabilised (UV8) black polyethylene moulding with galvanised steel support pillar powder coated black.
• Battery: 4x12V/9Ah Absorbent Glass Mat (AGM) batteries mounted in the base compartment of the post.
• Regulator: High efficiency PWM regulator mounted in post base.
• Ingress Protection (Solar Engine & LED Beacon): IP54.
• LED Beacon: 335mm diameter, self-coloured, rotationally moulded, U.V. stabilised (UV15), low-density polyethylene, 2.5mm nominal wall thickness.
• Gallery: Die Cast LM6-M aluminium, acid cleaned, chromate primed, and polyester powder coated black (150µm min). Features high performance gasket at beacon interface, and pre-fitted stainless steel shroud fixing points.
• Light Engine: Custom LED driver driving LEDs with a consumption of 3.4 watts when lit. LED driver efficiency 90%. Integrated flash controller with short circuit and open circuit protection.
• Post Construction: 76mm x 140mm mild steel large base post, galvanised after manufacture, conforming to BS EN 40. Finished black with two white reflective bands.

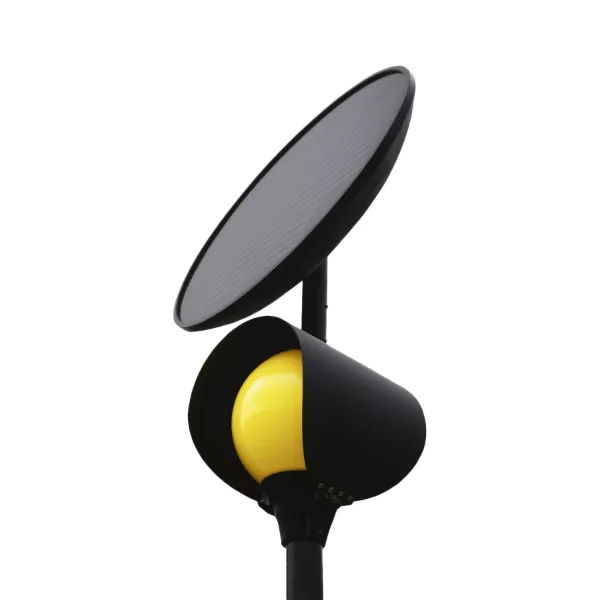

• Beacon Shroud: 3mm black self-colour polycarbonate with stainless steel fittings.

Customisation Options

• Fixing: Rooted or Flanged post available.
• (No other explicit customisation options are mentioned in the provided datasheet.)

Technical Specifications

Specification	Value
Solar Panel Diameter	750 mm
Solar Panel Output	12 V, 60 Watt
Solar Panel Angle	22°
Battery Type	Absorbent Glass Mat (AGM)
Battery Quantity/Capacity	4x12V/9Ah
System Autonomy	>9 days (should charge not be received)
LED Power Consumption	3.4 watts (when lit)
Light Output	350 cd/m² with uniformity >0.66
LED Beacon Diameter	335mm
Post Dimensions	76mm x 140mm (mild steel large base post)
Total Weight	58kg
Ingress Protection	IP54
Impact Resistance (Solar Panel)	IK10
Compliance	BS 8442:2015, BS EN 40
Battery Lifespan (AGM)	8-12 years
No. Discharge Cycles @80%	1600
Working Temperature	-40°C to 65°C (for AGM battery)

Installation & Maintenance

• Installation: The SOLABEL is supplied complete with pre-finished post, beacon, and solar engine. Fixing options include rooted or flanged post. The installation process involves:
  1. Excavating a foundation hole (e.g., 800mm deep for rooted post, size varies by administrative area and coastal proximity, assuming poor ground conditions).
  2. Marking the post 800mm up from the bottom for finished ground level and inserting the column base into the hole with the door facing away from oncoming traffic.
  3. Backfilling with standardised concrete (ST2 to BS 8500) up to the ground level marker, ensuring verticality with a spirit level, and allowing concrete to set.
  4. Uncoiling beacon drop leads and passing them down the post into the base housing. Ensuring the gallery drain hole is clear before placing the beacon on top of the post, facing traffic. Locking the beacon by tightening four gallery screws and ensuring button head screws engage in pre-drilled holes.
  5. Assembling the solar panel support, feeding the output lead through the bracket, placing the bracket over the plug aperture, and securing with tri-head screws.
  6. Connecting the solar output lead to the PV connection lead. Placing the solar panel over the spigot, rotating it to point directly south (ensuring unobstructed view of the sun), checking upper seal compression, and tightening grub screws to lock the panel.
  7. Fixing the regulator plate in the base, installing batteries in order (lower then upper position), and connecting to load and finally solar panel. Switching the regulator On/Off Switch. Finally, replacing the column door.
  Ensure the site is surveyed for buried services and any electrical supply is isolated. Handle materials with suitable equipment or manpower.
• Maintenance: Designed for low maintenance due to its solar-powered, off-grid operation and durable components. Routine checks for battery charging status (via LED indicators) and battery status (Green/Orange/Red LEDs) are recommended. Regular visual inspections and cleaning of the solar panel and beacon surfaces are advisable. Ensure the column base does not fill with rising water above ground level; create a drain hole near ground level if necessary to protect batteries.
