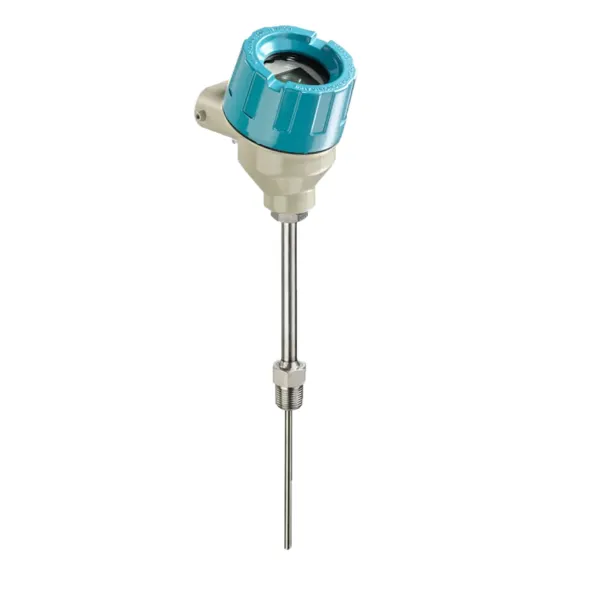

SITRANS TS500 temperature sensors are designed for a wide range of measurement applications, from simple to complex, such as those found in harsh environments. The modular design of the system, featuring a protective tube made of tubular or solid material, an extension, a connection head, and optional transmitter or display, enables the use of standard components. Intrinsically safe or flameproof designs are also available.
| Specification | Value |
|---|---|
| Output | Direct sensor signal 4…20 mA (TH100/TH320) HART (TH320) PA (TH420) FF (TH420) |
| Max. operation temperature - measuring point | Pt 100 Basic: –50 to +400 °C (-58 to +752 °F) Pt 100 Extended: –196 to +600 °C (-321 to +1112 °F) Thermocouple: -40 to +1250 °C (-40 to +2282 °F) (Depending on type of TC and thermowell) |
| Max. operation temperature - connection head | -40 to +100 °C (+85 °C with transmitter) |
| Ingress protection | IP54-68, depending on the type of connection head and cable gland |
| Approvals | General Purpose (FM, CSA) for use in hazardous locations ATEX, IECEx, cCSAus, NEPSI, EAC, KOSHA for use in marine applications DNV |
| Design | Modular with protective tube, extension, and connection head |
| Hazardous Area Options | Intrinsically Safe Ex i (IS), Increased Safety Ex e (NI), Flameproof Enclosure Ex d (XP), Dust Protection Ex t (DIP) |
| Optional Features | Local indicator and operation, transmitter |
