Technical documents and specifications for this product.
sitranst_ts100_fi01_en

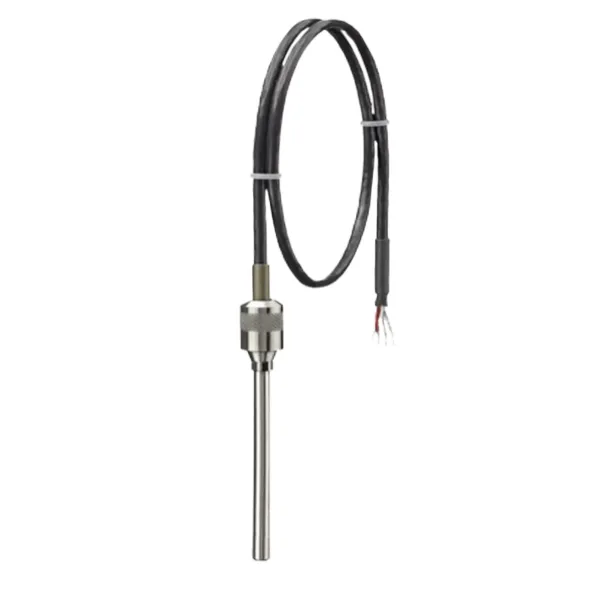

The SITRANS TS100 temperature sensor line is constructed using mineral insulated cable (MIC), making it suitable for a wide range of applications. Installation is simple and flexible thanks to compression fittings or soldering nipples, and it can be installed up to Zone 0 without requiring an additional thermowell.
| Specification | Value |
|---|---|
| Output - Sensor signal | Pt 100 Basic Pt 100 Extended Thermocouple |
| Output - Max. operation temperature - measuring point | Pt 100 Basic: -50 to +400 °C (-58 to +752 °F) Pt 100 Extended: -196 to +600 °C (-320.8 to +1112 °F) Thermocouple: -40 to +1250 °C (-40 to 2282 °F) Depending on type |
| Output - Max. operation temperature - cable end | -40 to +80 °C (-40 to +176 °F) |
| Ingress protection | IP66 (between sensor and cable) |
| Approvals | ATEX, IECEx, cCSAus, EAC, NEPSI |
| Construction | Mineral insulated cable (MIC) |
| Mounting | Compression fittings or soldering nipples |
| Hazardous Area Approval | Intrinsically Safe Ex i (IS) up to Zone 0 |
