Product Overview

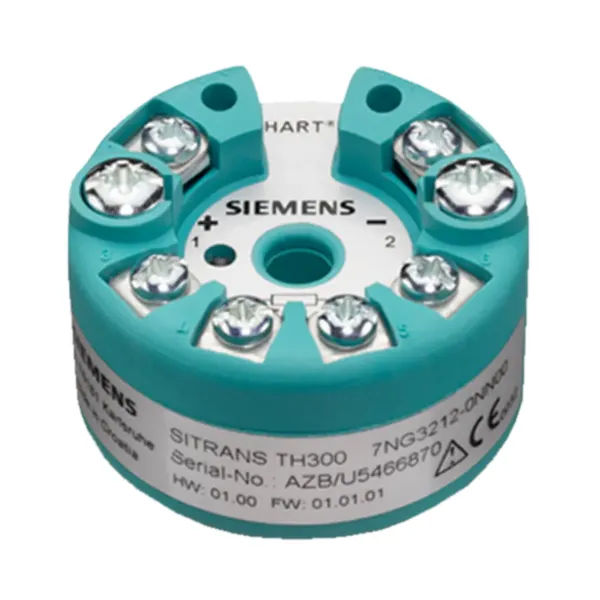

SITRANS TH300, with HART protocol, is designed to support all common thermocouples, resistance, and millivolt sensors. Setup is quick and easy using SIMATIC PDM or a handheld communicator. Direct readout of the output current is available from a multimeter without needing to open the 4 to 20 mA loop.

Benefits

• Measures temperature with a linear output signal.
• High accuracy across the entire ambient temperature range.
• Reduces plant noise.
• Alarm signal for sensor break or short-circuit according to NAMUR 43.
• Electro magnetic compatibility (EMC) according to DIN EN 61326 and NE21.
• Saves on expensive compensation cables with internal reference junction.
• Galvanic insulation for accuracy and safety in thermocouple applications.
• Single- or dual-point trim.
• Custom characteristic curve for application of non-standard sensors.
• Difference- and average measurement capabilities.
• Extensive diagnostics: e.g., drag indicator and time meter.
• Set of output current for simulation.
• Explosion protected variants for the US, Canada, and Europe.
• Rugged design with fully potted electronics.
