Technical documents and specifications for this product.
sitransp_p320_p420_fi01_en

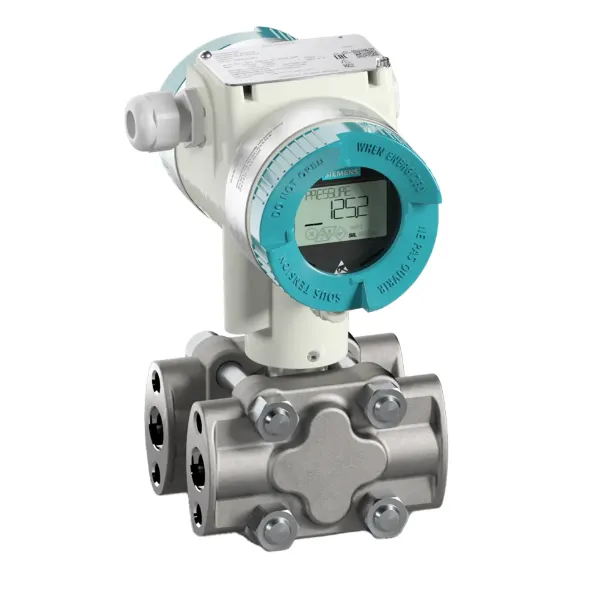

The SITRANS P320 pressure transmitter is one of the first to feature remote safety handling, allowing users to program all devices from the control room rather than individually on site. This significantly reduces commissioning time, particularly in applications requiring functional safety. A proof test interval of up to 15 years ensures low maintenance costs.
| Specification | Value |
|---|---|
| Accuracy | 0.065 % |
| Response time | Down to 105 ms |
| Long-Term Stability | ≤ 0.125 % / 5 years |
| Measuring cells | From 20 mbar to 700 bar |
| Max. Turndown | 100:1 |
| Measured medium temperature | -40 °C to +100 °C |
| Certificates/ Approvals | ATEX, IEC Ex, FM, CSA, NEPSI and others, SIL-2/3 certification (Developed according to IEC 61508 standards) |
| Communication | 4 … 20 mA / HART7, PROFIBUS PA, FOUNDATION Fieldbus |
| Diaphragm materials | Stainless steel, Hastelloy, Tantalum, Monel, Gold |
| Range of application | Suited for safety-critical applications in industries such as chemical, oil and gas, and power generation. |
