Technical documents and specifications for this product.
sitransp_p200_p210_p220_fi01_en

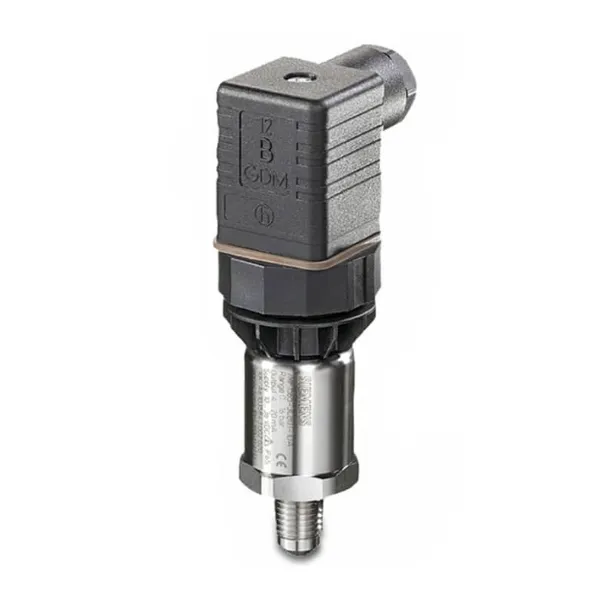

The SITRANS P200 is a compact single-range transmitter designed for measuring absolute and gauge pressure. It utilises two types of pressure sensors: stainless steel and ceramic diaphragm, making it suitable for measuring process, absolute, and hydrostatic pressure. The determined pressure is optionally converted into a 4-20 mA or 0-10 V signal.
| Specification | Value |
|---|---|
| Nonlinearity | ≤ 0.25 % |
| Long-term stability | ≤ 0.25 % / 12 months |
| Measuring range (gauge) | 1 bar to 60 bar |
| Measuring range (absolute) | 0.6 bar to 16 bar |
| Output signal (optional) | 4-20 mA or 0-10 V |
| Pressure sensor types | Stainless steel and ceramic diaphragm |
| Enclosure material | Stainless steel |
| Design | Compact, single-range |
| Applications | Process, absolute, and hydrostatic pressure measurement of liquids, gases, and vapours (aggressive and non-aggressive media) |
