Product Overview

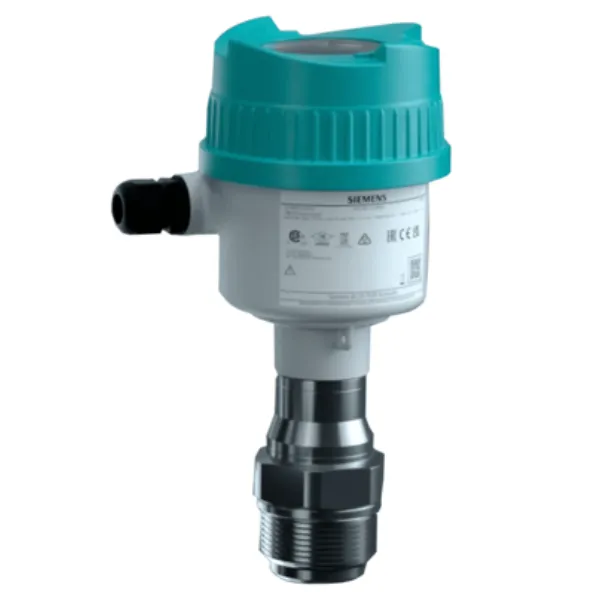

The SITRANS LR580 is an 80 GHz radar level transmitter specifically designed for the continuous monitoring of solids. It features a lens antenna with an integrated aiming flange, ensuring optimal performance for solid material level measurement.

Key Features

• 80 GHz radar level transmitter for continuous solids level monitoring.
• Lens antenna with integrated aiming flange for optimal solids measurement (3"/DN80 to 6"/DN150 process connections).
• Programming options via 4-button HMI, optional Bluetooth wireless technology with the SITRANS AW050 and SITRANS mobile IQ App, or SIMATIC PDM.
• Easy installation and commissioning due to its small size and narrow 3° beam angle.
• Healthy measurement assurance with SITRANS IQ Guard, providing monitoring and NE107 diagnostic messaging.
• Advanced signal processing with Process Intelligence and Auto False Echo Suppression.
• Near Range Suppression feature.
• High accuracy of 1 mm in accordance with IEC 60770-1.
• Wetted materials: 316L with FKM or FFKM seal, Peek lens.
• Measuring range: up to 120 m.
• Process pressure: Maximum 3 bar.
• Process temperature: -40 °C to 250 °C, depending on seal type.
• Available with Second Line of Defense.
• Bluetooth enabled with optional SITRANS AW050 adapter.
• Integrated air purge connection.

Technical Specifications

Supplementary components are available to enhance functionality, such as remote displays and monitoring solutions. For a complete and safe level measurement solution, consider incorporating switches for back-up, overfill, low level, and dry run protection.
