Product Overview

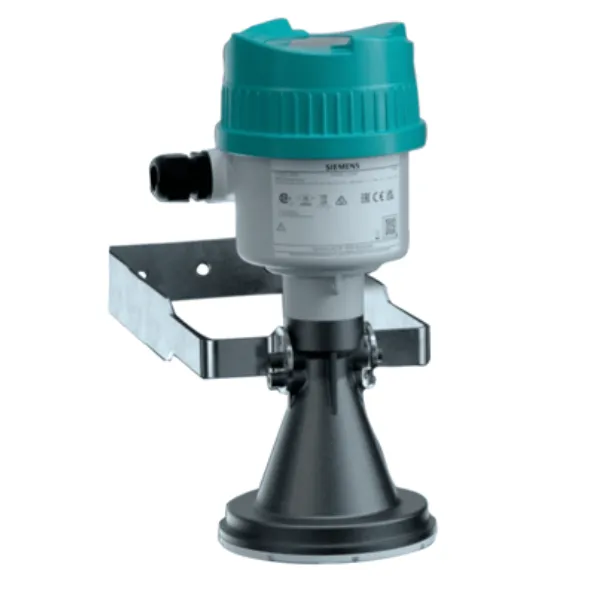

The SITRANS LR530 is a robust 80 GHz radar level transmitter designed for continuous monitoring of liquids, slurries, and solids in extreme process conditions. It features a flanged encapsulated antenna providing exceptional durability and reliability.

Key Features

• 80 GHz radar level transmitter for continuous level monitoring in extreme conditions.
• Flanged encapsulated antenna for robust performance (1"/DN25 to 8"/DN200 process connections).
• Programming options via 4-button HMI, optional Bluetooth wireless technology with the SITRANS AW050 and SITRANS mobile IQ App, or SIMATIC PDM.
• Easy installation and commissioning due to its small size and narrow beam (10° for 1"/DN25, 6° for 2"/DN50, 3° for 3"/DN80 or larger).
• Healthy measurement assurance with SITRANS IQ Guard, providing monitoring and NE107 diagnostic messaging.
• Advanced signal processing with Process Intelligence and Auto False Echo Suppression.
• Near Range Suppression feature.
• High accuracy of 1 mm in accordance with IEC 60770-1.
• Wetted material: PTFE lens with integral gasket.
• Measuring range: 1"/DN25: 20 m, 2"/DN50: 30 m, 3"/DN80 or larger: 120 m.
• Process pressure: Maximum 25 bar, depending on temperature.
• Process temperature: -196 °C to 200 °C, depending on seal type.
• Available with Second Line of Defense.
• Bluetooth enabled with optional SITRANS AW050 adapter.

Technical Specifications

Supplementary components are available to enhance functionality, such as remote displays and monitoring solutions. For a complete and safe level measurement solution, consider incorporating switches for back-up, overfill, low level, and dry run protection.
