Product Overview

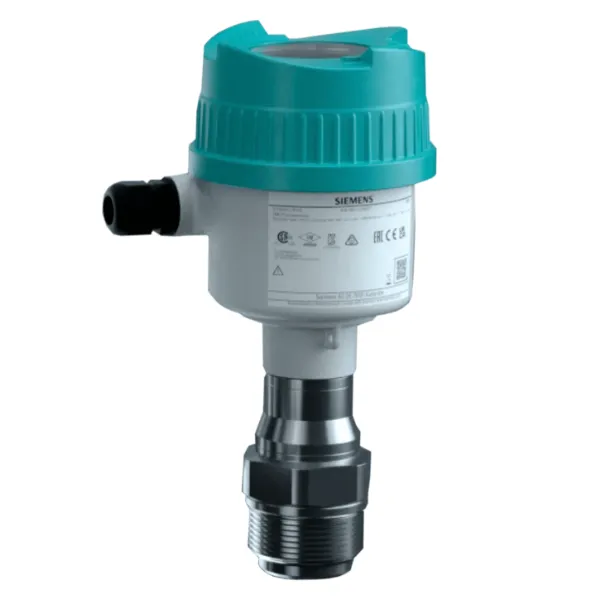

The SITRANS LR510 is an 80 GHz radar level transmitter designed for the continuous monitoring of liquids. It features a threaded lens antenna, allowing for easy installation in various liquid storage and process vessels.

Key Features

• 80 GHz radar level transmitter for continuous liquid level monitoring.
• Threaded lens antenna for flexible installation (¾", 1", or 1½" process connections).
• Programming options via 4-button HMI, optional Bluetooth wireless technology with the SITRANS AW050 and SITRANS mobile IQ App, or SIMATIC PDM.
• Easy installation and commissioning due to its small size and narrow beam (14° for ¾", 10° for 1", 7/10° for 1½").
• Healthy measurement assurance with SITRANS IQ Guard, providing monitoring and NE107 diagnostic messaging.
• Advanced signal processing with Process Intelligence and Auto False Echo Suppression.
• Near Range Suppression feature.
• High accuracy of 1 mm in accordance with IEC 60770-1.
• Wetted materials: 316L or C22 Alloy, FKM or FFKM seal, Peek lens.
• Measuring range: ¾" : 10 m, 1" : 20 m, 1½": 30 m.
• Process pressure: Maximum 40 bar, depending on temperature.
• Process temperature: -40 °C to 250 °C, depending on seal type.
• Available with Second Line of Defense.
• Bluetooth enabled with optional SITRANS AW050 adapter.

Technical Specifications

Supplementary components are available to enhance functionality, such as remote displays and monitoring solutions. For a complete and safe level measurement solution, consider incorporating switches for back-up, overfill, low level, and dry run protection.
