Technical documents and specifications for this product.
sitransp_lh300_fi01_en

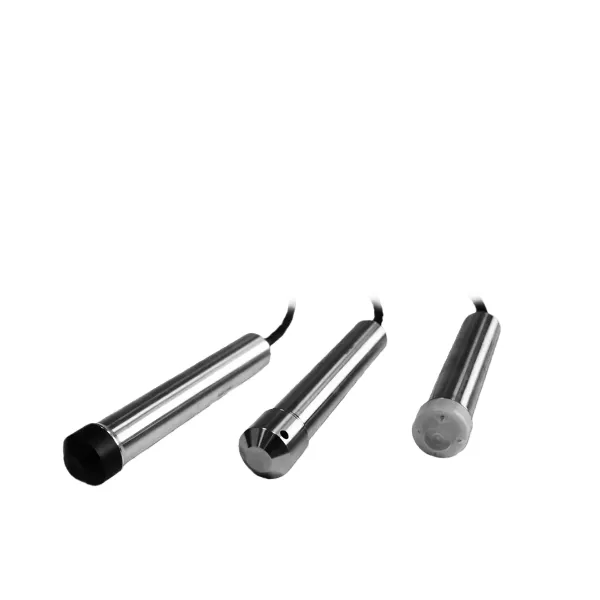

The SITRANS LH300 is a well probe designed for hydrostatic level measurement, featuring protective caps made of PPE, stainless steel, or ETFE. This transmitter converts the measured pressure into a standard 4 - 20 mA signal. Thanks to its stainless steel housing and piezoresistive sensor with a ceramic membrane, the SITRANS LH300 is suitable for use in tanks, channels, and dams, as well as in drinking water systems.
| Specification | Value |
|---|---|
| Accuracy | 0.15 % |
| Long-term stability | 0.15 % / 12 months |
| Measuring range | 0 – 1 mH2O to 0 – 40 mH2O |
| Housing | 316L stainless steel housing (Ø 29 mm), IP68 rated |
| Diaphragm | 99.6 % ceramic |
| Cable | PE sheathing; Ø 6 mm with vent pipe |
| Cable length | Standard 5, 10, 20, 30 or 50 m, special lengths up to 1000 m are possible |
| Certificates/ approvals | Explosion-protected version according to IEC Ex and ATEX |
