Product Overview

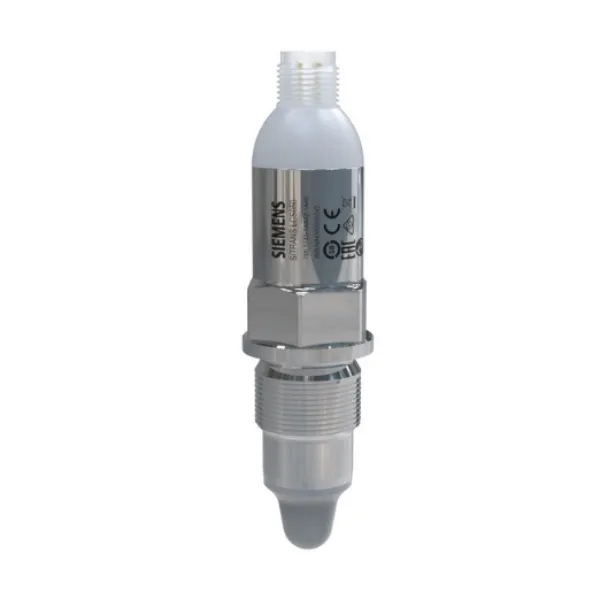

SITRANS LCS050 is an ultra-compact, capacitance switch designed for point level detection in confined spaces, water-based liquids, slurries, and foam.

Benefits

• Easy installation with no requirement for adjustment.
• Low maintenance due to the absence of moving parts.
• Highly visible 360-degree status indication.
• M12 connector for ease of installation.
• IO-Link communication option for advanced monitoring and configuration.

Application

The SITRANS LCS050's ultra-compact design, short insertion length of 15 mm (0.59 inch), and versatility across various applications in vessels or pipes, makes it an excellent replacement for traditional point level switches. Its advanced alternating capacitance field at the sensor tip ensures material detection based on changes in capacitance, providing repeatable performance. The PEEK probe is chemically resistant with an effective process operating temperature range from ‑20 to +100 °C (‑4 to +212 °F) and supports sterilisation in place at 135 °C (275 °F) for up to 1 hour. The product design ensures reliability in vibrating environments such as agitated tanks up to 5 g.

Key Applications: water-based liquids with > 10 % water (alcohols, acids, cleaning agents), slurries and foam for point level, overfill and dry run protection including small pipes due to its compact design.

Technical Specifications

Specification	Value
Mode of operation	Capacitance level detection
Measuring principle	Change in picoFarad (pF)
Output signal	Transistor (PNP/NPN) IO-Link acc. to IEC 61131-9
Alarm output	Min. or max.
Accuracy	Hysteresis: Approx. 1 mm (0.04 inch)
Installation conditions	Location: Indoor/outdoor
Ambient conditions	Ambient temperature: ‑40 … +70 °C (‑40 … +158 °F) Storage temperature: ‑40 … +80 °C (‑40 … +176 °F) Installation category: I Pollution degree: 4
Medium conditions	Relative dielectric constant εr: Min. 2 Process temperature: ‑20 … +100 °C (‑4 … +212 °F) up to 1 hour, 135 °C (275 °F) Pressure (vessel): ‑1 … 25 bar/‑100 … 2 500 kPa (‑14.5 … 363 psig)
Degree of protection	M 12x 1 plug: IP66/IP67/IP69
Design	Enclosure/integral cable version
Material	Body: 316L and plastic (polycarbonate) Sensor length: 15 mm (0.59 inch) Process connection material of probe/wetted parts: Connection: 316L stainless steel Device seal: FKM (hygienic version EPDM) Sensor tip: PEEK
Connection (Enclosure version)	M12 x 1 plug
Process connection	Pipe thread, cylindrical (DIN 3852-A) G½, G¾, G1 Pipe thread, conical (ASME B1.20.1) ½ NPT, ¾ NPT, 1 NPT Metric fine thread, cylindrical M24 x 1.5
Power supply	Standard: 12 ... 35 V DC
Certificates and approvals	General: CE, UKCA
