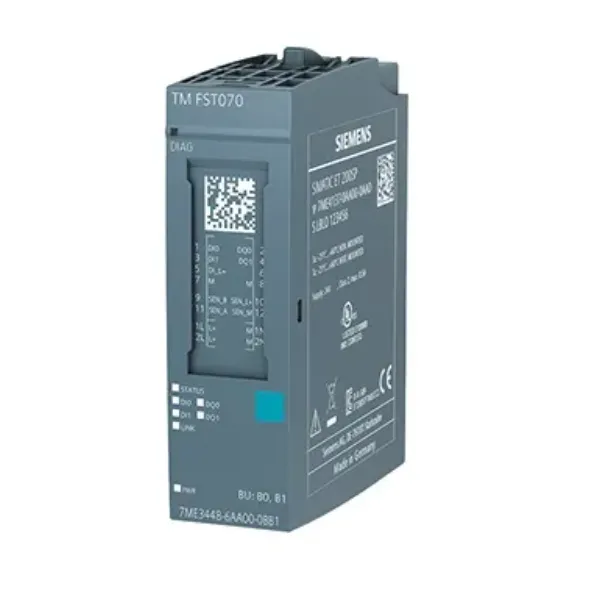

Siemens FST070
The SITRANS FST070 technology module is an ultrasonic flowmeter for the SIMATIC ET200SP distributed I/O. With the SITRANS FST070, data can be processed in real-time and all measurement and status data of the ultrasonic flowmeter can be visualized. It also enables direct integration with drivers and user interfaces into the Siemens TIA Portal and the SIMATIC PCS 7 process control system.
| Specification | Value |
|---|---|
| Technology Modul | For SIMATIC ET 200SP Profinet |
| Base unit | ET 200SPBU 20 type B1 |
| Supported control | SSIMATIC PCS7 V9.1 SP2 or higher TIA Portal V17 or higher SIMATIC STEP 7 V5.6 SP4 or higher |
| Outputs | 2 individually programmable outputs |
| Inputs | 2 individually programmable inputs |
| Communication | Profinet via SIMATIC ET 200SP |
| Protection class | IP 20 |
| Environmental temperature | -13° F…122 °F Vertical (140°F) |
| Approvals (standard version) | CE cULus EAC Tick KCC ROHS |
| Approvals (Ex version) | ATEX II 3 G Ex ec IIC T.. Gc IECEx Ex ec IIC T4 FM Class I, DIV 2, Group A.B.C.D With barrier SITRANS I300 also for ATEX zone 1 |
| Power | 24V, Class 2, max. 0.5 A |
