Product Overview

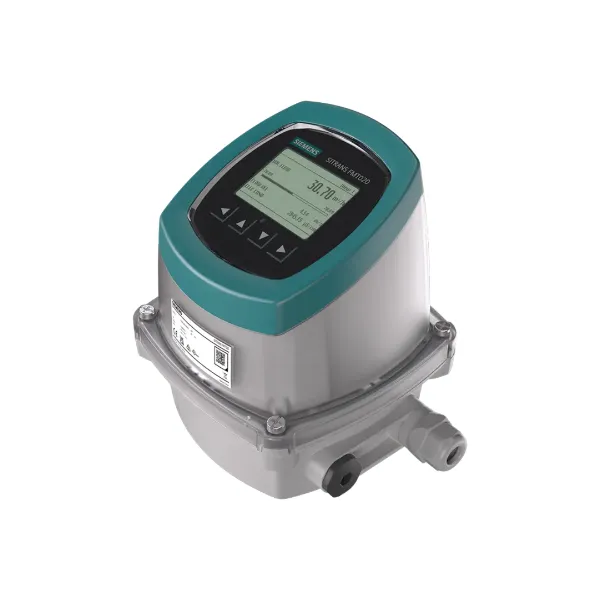

The new SITRANS FMT020 transmitter is a high performance, robust, intelligent product, designed for a wide range of applications requiring highly accurate and reliable flow measurement of conductive fluids.

Benefits

• Simultaneously measure volumetric flow, flow velocity and electrical conductivity
• Cost-effective solution, backward compatible with older existing flowmeter sensors (MAG 5100W, MAG 3100, MAG 3100 P, MAG 3100 HT)
• Equipped with a large, rotatable, backlit 14-digit graphical display for optimal visibility in all mounting positions
• Easy programming and commissioning with menu and wizard in 14 languages
• Compact or remote mounting possible with the same housing.
• Enhanced diagnostics like empty-pipe monitoring and device self-check
• Plug & Play modules allow easy on-site replacement and commissioning of the transmitter in just minutes
• Multi-functional input/output channels for process control
• Certification for a wide range of communication protocols and industry standards

Detail

Measurement of
	Volume flow Flow velocity Electrical conductivity
Input / output	1 current output 1 digital output 1 relay output
Communication	HART PROFINET EtherNet/IP MODBUS RTU Profibus Bluetooth
Display	Graphical 60x40mm, 14-digit
Enclosure	Polycarbonate IP66/67, NEMA 4X/6P
Power supply	AC Version: 100 to 240 V AC, 50 to 60 Hz, 25 VA DC Version: 24 V DC ±20 %
Ambient temperature	-40 to +65 °C (-40 to +149 °F)
Approvals	CE (LVD, EMC, RoHS), UKCA UL, CSA certified per standard EN / IEC 61010-1

Application examples:

water and wastewater, general process industry

Combine with the following MAG sensor for a complete flowmeter:

• SITRANS FMS500 : Water applications
• SITRANS FMS300: All applications, including high pressure and high temperature

The transmitter can work with the energy calculator SITRANS FUE950, which acquires the pulse signal from the flowmeter for energy measurement.
