Product Overview

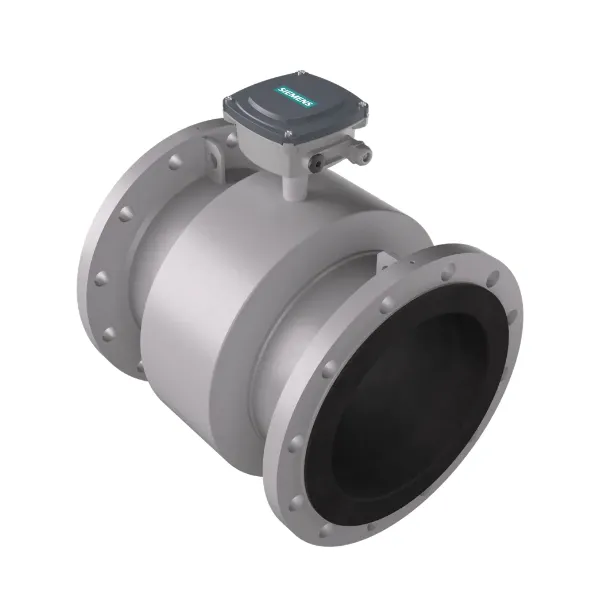

The SITRANS FMS300 is a magnetic flow sensor designed for volume flow measurement of conductive liquids. Its high level of product configuration allows it to be used in a wide range of flow applications. The sensor includes grounding electrodes as standard, with measuring electrodes that can withstand extreme processes, and various liner materials are available. The fully welded construction provides supreme ruggedness and durability even under the toughest operating conditions, ensuring maintenance-free operation over many years.

Key Benefits

• Wide range of electrode and liner materials to fit even the most extreme process media.
• Excellent chemical resistance also during high process temperature.
• Reinforced PFA liner performs extremely well under vacuum conditions and during high process temperatures up to 100 degrees C (212 degrees F).
• Fully welded construction with no moving parts for maintenance-free operation over many years.
• Smooth surface with minimal risk of build-up.
• Sensor face-to-face length according to ISO 20456 (up to DN 400).
• SENSORPROM Technology provides an automatic upload of start-up settings and calibration data for easy commissioning.
• Designed to allow in-situ verification for easy performance check.
• Meets EEC directive PED 2014/68/EU.

Applications

• Designed to meet the most common specifications within the chemical and process industries.
• Ideal for challenging applications in the steel industry, mining, pulp and paper, and industrial wastewater management.
• Used in the utility, power generation and distribution, and oil and gas/HPI sectors.

Features & Construction

• Design: Fully welded construction with no moving parts.
• Liner Materials: Soft rubber (Neoprene), EPDM, PTFE, Ebonite, Linatex, and PFA.
• Electrode Materials: Stainless steel AISI 316Ti, Hastelloy C276 (C22 for PFA), Platinum, Titanium, Tantalum, and Ceramic coated options.
• Process Connections: Flanges comply with EN 1092-1, ANSI B16.5, AWWA C-207, AS 2129, AS 4087, and JIS B 2220 standards.
• Protection: Standard degree of protection is IP66/67, with optional IP68 (NEMA 6P) protection class available for the sensor.

Technical Specifications

• Nominal Diameter (DN): Full bore sensor available in sizes from DN 15 to DN 2200 (1/2" to 88").
• Medium Conductivity: Suitable for liquids with an electrical conductivity $\ge$ 5 uS/cm.
• Operating Pressure (Max): Up to 100 bar, depending on the liner and flange type.
• Temperature of Medium (Ranges): Soft rubber (0 to 70 degrees C), EPDM/Linatex (-10 to 70 degrees C), PTFE (-20 to 100 degrees C), PFA (-20 to 95 degrees C, with vacuum resistance).
• Accuracy: Measuring accuracy is +/- 0.4% of the flow rate, with an optional +/- 0.2% accuracy available.
• Standard Built-in Length: 1.25 x DN (PED compliant) or 1.0 x DN (short).

Installation & Maintenance

• Fully welded construction with no moving parts allows for maintenance-free operation over many years.
• The sensor is designed to allow in-situ verification for an easy performance check.
