Siemens FM 100

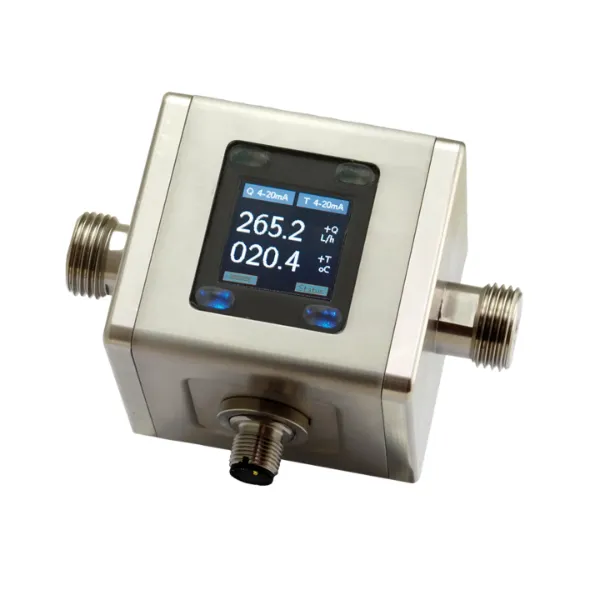

SITRANS FM100

The SITRANS FM100 is an electromagnetic flow meter for measuring and monitoring small and medium flows.

Robust stainless-steel design
Multiple measurements (flow and temperature) in one device
Dosing function with external control input
Easy local operation via 4 optical buttons, works with gloves
Individual orientation of display according to application
Bidirectional measurement
Flexible usage in different applications due to two individual configurable outputs
Total and partial volume counters to track flow rates

Specification	Value
Measuring range	Flow range 0.03 - 350 l / min
Process connection and sizes	½”, ¾”, 1”, 2”
Accuracy	<±0.8% of reading + 0.5% of full scale
Operating Pressure	Max. 16 bar
Process temperature	From -20 to +70 ° C (compact) From -20 to +140 ° C (remote)
Housing material	Stainless steel 1.4404
Electrode material	Stainless steel 1.4404
Connection fitting	Stainless steel 1.4404
Insulation parts	PEEK
Seals	FKM (optional: EPDM)
Display	Operation via 4 optical touch sensors (operation with hand gloves) TFT display, 128x128 pixels, 1.4” display, orientation in 90° steps adjustable, repetition rate adjustable 0.5 … 10s
Protection class	IP67
Communication	I/O Link
Output	2 outputs (analog, pulse, frequency or alarm)
Input	Control input (optional with dosing function)
