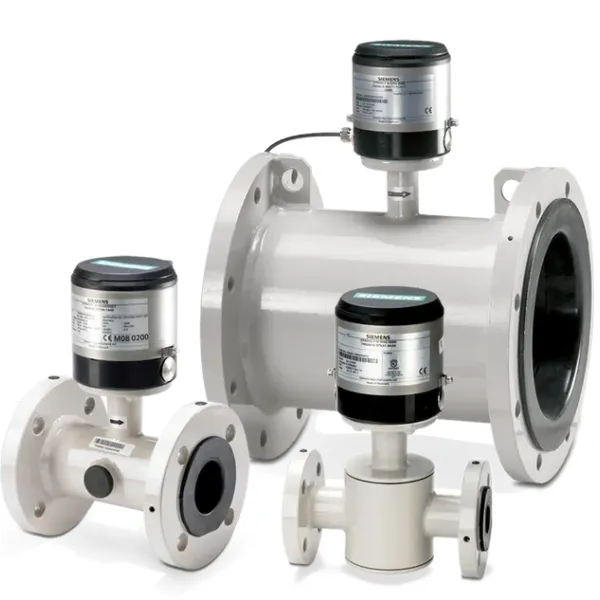

The SITRANS FM MAG 8000 portfolio of battery-operated flowmeters gives you the flexibility to install a reliable water flowmeter virtually anywhere without sacrificing accuracy or performance.
The SITRANS FM MAG 8000 portfolio features a basic version for general water applications or an advanced version for additional functionality, network, and consumption performance (profiling).
An optional built-in IIoT Wireless Communication Module is available for remote reading of comprehensive measurement data covered by a LTE-M or NB-IoT. Measurement data, configuration, and the built-in verification from the MAG 8000 are made accessible via the new Web Application.
| Specification | Value |
|---|---|
| Nominal size | From DN 25 – 1200 (1" to 48") From DN 50 – 600 (1” – 24”) for CT version under the MI001 and OIML R49 Class I & II |
| Accuracy | 0.2% ± 2mm/s and 0.4% ± 2mm/s |
| Input / output | 2 passive outputs |
| Communication | Local Modbus RTU IrDA (Infrared comm.), Modbus RS 232/485, Radio Encoder (Sensus Protocol), 4G LTE M/NB IoT |
| Power supply | Internal or external battery pack 12-24 V AC/DC and 115-230 V AC |
| Operating pressure | Max. 40 bar (Max. 580 psi) |
| Ambient temperature | From -20 to 60 °C (-4 to 140 °F) |
| Medium temperature | From 0 to 70 °C (32 to 158 °F) From 0.1 to 50 °C (32 to 122 °F) (SITRANS F M MAG 8000 CT) |
| Liner | EPDM |
| Electrodes | Hastelloy C 276 |
| Enclosure | IP68 (NEMA 6P) |
| Material | Transmitter: Stainless steel top housing (AISI 316) and coated brass bottom. Sensor: Carbon steel |
| Approvals | WRAS, KTW, DVGW 270, ACS, Belgaqua, NSF/ANSI Standard 61, MID (EU), OIML R49, MCERTS Sira Certificate No. MC080137/00 NMI 10 |
Technical documents and specifications for this product.
