Product Overview

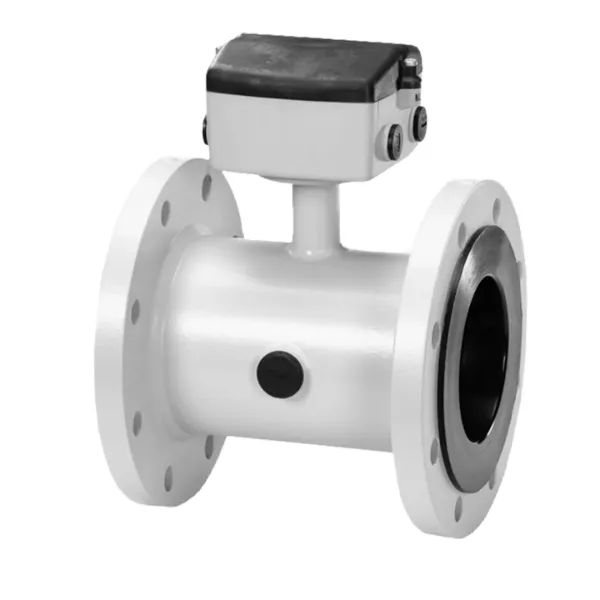

The Siemens SITRANS FM MAG 5100W is a sensor for all water applications with its patented liners of hard rubber NBR or ebonite and EPDM.

Benefits

• Zero Up and Zero Down installation capabilities
• Lining specifically for drinking water applications requiring special approvals
• Increased low flow accuracy for water leak detection (NBR or EPDM lining)
• Suitable for underground installation and permanent immersion (IP68) or underwater installation
• Integrated grounding electrodes - no grounding rings required for many applications
• Short delivery time
• SITRANS FM portfolio - our integrated platform enables the flexible use of the transmitter MAG 5000 / 6000 for all products (MAG 5100 / 3100/1100):
  • Unique SensorProm technology - stores critical, sensor-specific data and passes it to the transmitter. This allows a simple, flexible commissioning of the sensor.
  • Plug & Play - allows easy on-site replacement and commissioning of the transmitter in just minutes
  • "Hot swapable" - exchangeable during operation
  • Mounting flexibility - compact or separate installation possible
  • Validated calibration ensures accurate flow measurement. Each Siemens flowmeter is calibrated in facilities that are individually accredited to ISO / IEC 17025.
  • Service and diagnostics - Designed for MAG on-site verification with traceable certification. Regular calibration of the SITRANS FM Verificator ensures accuracy in the field.

Technical Specifications

Specification	Value
Measuring range	0 to 10 m/s
Nominal sizes	From DN 15 to DN 2000 (1" to 78")
Accuracy	0.2 % ±2.5 mm/s
Operating pressure	Max. 16 bar (Max. 150 psi)
Ambient temperature	From -40 to 70 °C (-40 to 158 °F)
Medium temperature	From -10 to 70 °C (14 to 158 °F)
Liners	EPDM NBR hard rubber Ebonite hard rubber
Electrodes	Hastelloy C-276
Built-in grounding electrodes	MaterialCarbon steel, with corrosion resistant two-component epoxy coating
Drinking water approvals	EPDM: WRAS, NSF/ANSI Standard 61, DVGW 270, ACS and BelgAqua NBR: NSF/ANSI Standard 61, WRAS Ebonite: WRAS
Custody transfer approvals	OILM R 49 MI-001 PTB K7.2 (Germany) BEV OE12/C040 (Austria)
General approval	MCERTS Sira Certificate No. MC080136/09

Applications

Application examples: water abstraction, water distribution network, waste water and as custody transfer water meter or cooling meter.

In order to have a complete flowmeter, please combine it with one of the following MAG transmitters:

• SITRANS FM MAG 5000: Cost efficient transmitter, accuracy of + 0.4 % of flow rate
• SITRANS FM MAG 6000: Bus communication, batch function and accuracy of + 0.2 % of flow rate
• SITRANS FM MAG 6000 I: Alu enclosure, Ex approvals, bus communication, batch function and accuracy of + 0.2 % of flow rate

The transmitter can be combined with the energy calculator SITRANS FUE950
