Technical documents and specifications for this product.
sitrans_fm_mag_5000_6000_en

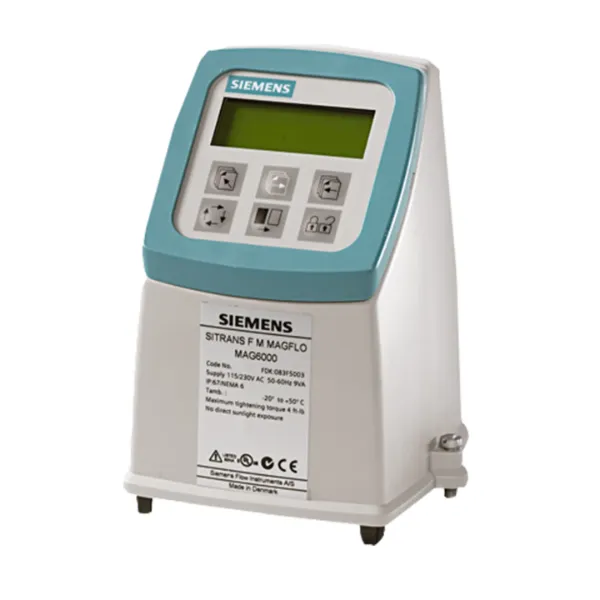

The Siemens SITRANS FM MAG 5000/6000 are microprocessor-based transmitters, which are truly robust all-around solutions for a wide variety of applications.
Cost-effective transmitter with high performance
The transmitter is rugged, suitable for universal applications and has high measurement accuracy
Multiple function outputs for process control
Display and keypad available in several languages
SITRANS FM portfolio – our integrated platform enables flexible use of the MAG 5000/6000 transmitter for all products (MAG 5100/ 3100/ 1100):
Unique SensorProm technology - stores critical, sensor-specific data and passes it to the transmitter. This allows a simple, flexible commissioning of the sensor.
Plug & Play - allows easy on-site replacement and commissioning of the transmitter in just minutes
"Hot swapable" - exchangeable during operation
Mounting flexibility - compact or separate installation possible
Validated calibration ensures accurate flow measurement. Each Siemens flowmeter is calibrated in facilities that are individually accredited to ISO / IEC 17025.
Service and diagnostics - Designed for MAG on-site verification with traceable certification. Regular calibration of the SITRANS FM Verificator ensures accuracy in the field
Specification Value Accuracy 0.4 % ±1 mm/s Input / output 1 current output
1 digital output
1 relay output Communication HART Display Background illumination with alphanumeric text, 3 x 20 characters Enclosure IP67 (NEMA 4x/6)
IP20 (NEMA 2) Power supply 12-24 V a.c./d.c.
115-230 V a.c. Ambient temperature From -20 to 50 °C (-4 to 122 °F) Approvals MI-001
Danak
PTB
OIML R49
Ex-approvals
FM/CSA Class 1, Div 2
Application Examples: water and waste water, general process industry, food & beverage industry
In order to have a complete flowmeter, please combine it with one of the following MAG sensors:
SITRANS FM MAG 1100: Small sizes and wafer design
SITRANS FM MAG 1100 F: Food and pharma applications
SITRANS FM MAG 5100 W: Water applications
SITRANS FM MAG 3100: Chemical and process applications
SITRANS FM MAG 3100 P: Comprehensive product program
The transmitter can be combined with the energy calculator SITRANS FUE950
