Product Overview

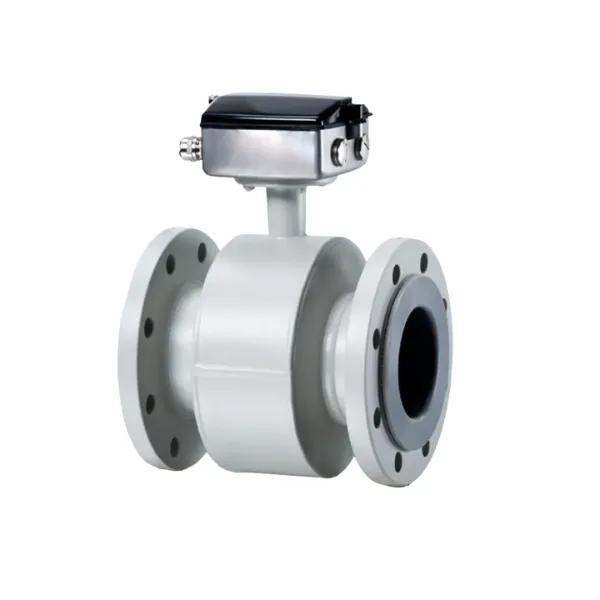

The SITRANS FM MAG 3100 P sensor is designed to meet the most common specifications within the chemical and process industries.

Benefits

• Fully welded construction that is extremely rugged and can withstand special process conditions using extreme measurement electrodes
• Integrated grounding electrodes - no grounding rings required for many applications
• Short delivery time due to standardized warehousing
• Temperature resistant up to 302 °F
• Approved for use in potentially explosive atmospheres
• SITRANS FM portfolio - our integrated platform enables flexible use of the MAG 5000 / 6000 transmitter for all products (MAG 5100 / 3100/1100):
  • Unique SensorProm technology - stores critical, sensor-specific data and passes it to the transmitter. This allows a simple, flexible commissioning of the sensor.
  • Plug & Play - allows easy on-site replacement and commissioning of the transmitter in just minutes
  • "Hot swapable" - exchangeable during operation
  • Mounting flexibility - compact or separate installation possible
  • Validated calibration ensures accurate flow measurement. Each Siemens flowmeter is calibrated in facilities that are individually accredited to ISO / IEC 17025.
  • Service and diagnostics - designed for MAG on-site verification with traceable certification. Regular calibration of the SITRANS FM Verificator ensures accuracy in the field.

Detail

Specification	Value
Measuring range	0 to 10 m/s
Nominal Sizes	From DN 15 to DN 300 (½" to 12")
Accuracy	0.2 % ±1 mm/s
Operating Pressure	Max. 40 bar (Max. 580 psi)
Ambient temperature	From -40 to 100 °C (-40 to 212 °F)
Medium temperature	From -20 to 130/150 °C (-4 to 266/302 °F)
Liners	PFA PTFE (Teflon)
Electrodes	Hastelloy C22 Hastelloy C276
Material	Carbon steel with corrosion resistant two component epoxy coating
General approval	ATEX - 2 GD Zone 1, FM / CSA Class 1 div 2

Application Examples:

process industry, chemical industry, pulp & paper industry

In order to have a complete flowmeter, please combine it with one of the following MAG transmitters:

• SITRANS FM MAG 5000: Cost efficient transmitter, accuracy of + 0.4 % of flow rate
• SITRANS FM MAG 6000: Bus communication, batch function and accuracy of + 0.2 % of flow rate
• SITRANS FM MAG 6000 I: Alu enclosure, Ex approvals, bus communication, batch function and accuracy of + 0.2 % of flow rate
