Product Overview

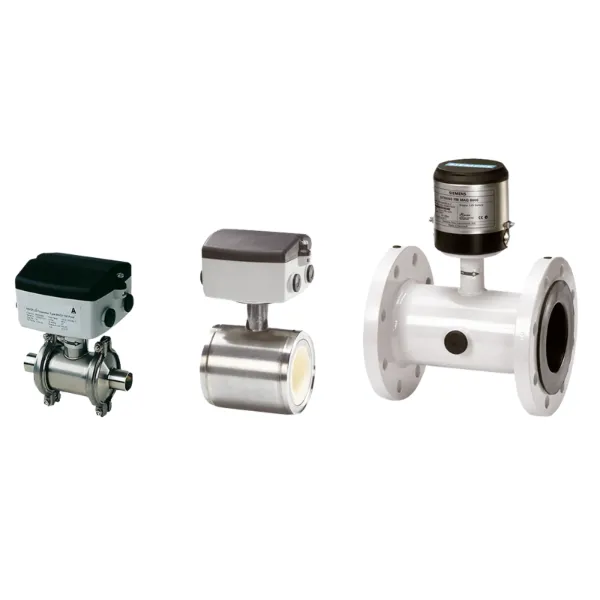

The SITRANS FM MAG 1100 F is an electromagnetic flow sensor designed to meet the demanding applications of the food and beverage industry. It features a unique mechanical design with a wide range of sanitary process connections and is suitable for CIP/SIP (clean-in-place/sterilise-in-place) cleaning. The sensor is also approved for hazardous areas, ensuring maximum safety and reliability in industrial environments.

Key Benefits

• Unique mechanical design with a wide range of sanitary process connections.
• Sanitary design for CIP/SIP cleaning.
• SENSORPROM Technology provides an automatic upload of startup settings and calibration data for easy commissioning.
• Designed to allow in-situ verification for easy performance checks.
• Hose-proof IP67 enclosure rating, with an option for IP68/NEMA 6P protection that can be upgraded on-site.
• Approved for hazardous areas for maximum safety and reliability.

Applications

• Food industry.
• Beverage industry.
• Pharmaceutical industry.

Features & Construction

• Design: The sensor is available in both compact and remote versions.
• Materials: The sensor housing is made of AISI 316 stainless steel. Liner materials can be PFA or Ceramic. Gasket materials include EPDM, FPM/FKM, and NBR.
• Process Connections: The sensor is compatible with a wide range of hygienic connections, including weld-in, clamp-type, and threaded-type fittings conforming to various standards like DIN, ISO, SMS, and BS.
• Integration: The complete flowmeter consists of the sensor and a separate transmitter, such as the SITRANS FM MAG 5000, 6000, or 6000 I.

Technical Specifications

• Sensor Sizes: DN 10 to DN 100 (3/8" to 4").
• Operating Pressure: For ceramic-lined sensors, pressure is 40 bar for DN 10-65, and 25 bar for DN 80-100. For PFA-lined sensors, the pressure is 20 bar.
• Temperature of Medium: -20 to 150°C for ceramic-lined sensors and -30 to 130°C for PFA-lined sensors.

Installation & Maintenance

• For compact installations with a MAG 6000 I or MAG 6000 I Ex transmitter, the transmitter must be supported to avoid tension on the sensor part.
• The sensor's sanitary design allows for CIP/SIP cleaning, simplifying maintenance.
