Product Overview

The SIS Multi Underground: Electrical Disconnection System is an electrical disconnection system specifically designed for the isolation of 2 to 4 illuminated columns. Each pole or column is fitted with a small sensor that, in the event of an impact, communicates with the monitor board, triggering complete Low Voltage (LV) and Extra Low Voltage (ELV) isolation within 0.2 seconds. The SIS Multi Underground unit is housed within an IP67 enclosure and located on an equipment shelf inside an underground STAKKAbox™ Access Chamber, near the column it is protecting. The system is fully compliant with EN12767:2007 (Electrical Isolation of Passively Safe Structures) and can be used with any type of passively safe column. In areas with frequent high water levels, the unit can be fitted with an optional float switch. A sensor or float switch activation will automatically isolate all voltages to the individual structures and is capable of monitoring up to four columns.

Key Benefits

• Designed for isolation of 2 to 4 illuminated columns.
• Guaranteed electrical isolation of all volts within 0.2 seconds of impact.
• Fully compliant with EN12767:2007 (Electrical Isolation of Passively Safe Structures).
• Successfully tested at MIRA.
• Disconnection time officially proven with a timing device.
• Suitable for use with NE, LE, and HE Passively safe columns.
• Appropriate for use in non-passive columns.
• Guaranteed isolation even if the structure has not detached from its base.
• Isolates all volts even if the impact sensor is destroyed.
• Provides fault outputs for impact, voltage drop, and other potential maintenance issues.
• Fault outputs can be connected to CMS or RMS systems.
• Automatic restart and recheck after power failure.
• Impact sensors easily replaced after impact.
• Simple means of re-energising the circuit while the impacted structure remains isolated.
• Enables simple isolation of individual columns for maintenance works.
• Simple to test periodically.

Applications

• Street Lighting Columns.
• Illuminated Signs.
• CCTV Columns.

Features & Construction

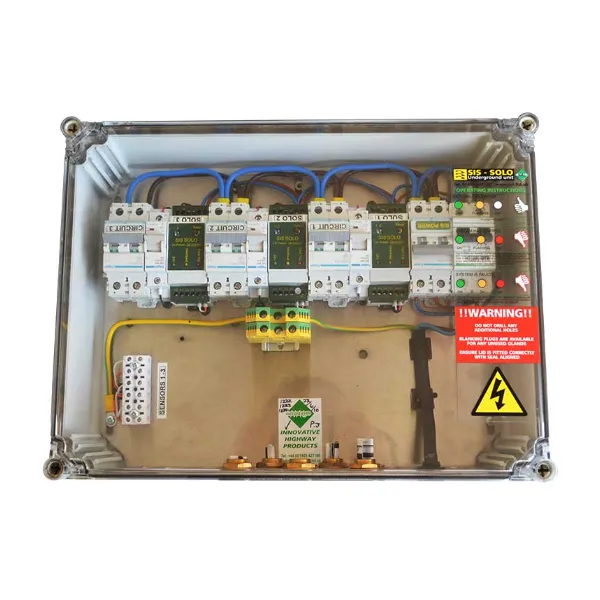

• SIS Solo Underground (Multi) monitor unit activates complete LV and ELV (Zero Volt) isolation.
• Unit housed within an IP67 enclosure.
• Mounted on a drop-in removable galvanised steel equipment shelf to ensure maximum elevation.
• Housed in a minimum 600 x 600mm 40 tonne STAKKAbox™ access chamber.
• Suitable for use with 6-25mm SWA cable.
• IP68 in-line plug and socket system available.
• Cable terminations provided with IP68 brass glands, with a maximum of 10 per enclosure.
• Sensor is an IP64 rated mechanical impact sensor, mounted vertically within the structure.
• Optional float switch available for areas with high water table.
• All equipment is CE and environmentally tested in accordance with TR2130.

Technical Specifications

Property	Details
Compliance	EN 12767:2007, CE, TR2130
Isolation Speed	Within 0.2 seconds (guaranteed), within 0.4 seconds (to individual structure)
Monitored Columns	Up to four columns
Enclosure Rating	IP67
Minimum Chamber Size	600 x 600 mm (40 tonne STAKKAbox™)
Cable Size Compatibility	6-25mm SWA cable
Terminal Capacity	Maximum of 10 IP68 brass glands per enclosure
Sensor Rating	IP64

Installation & Maintenance

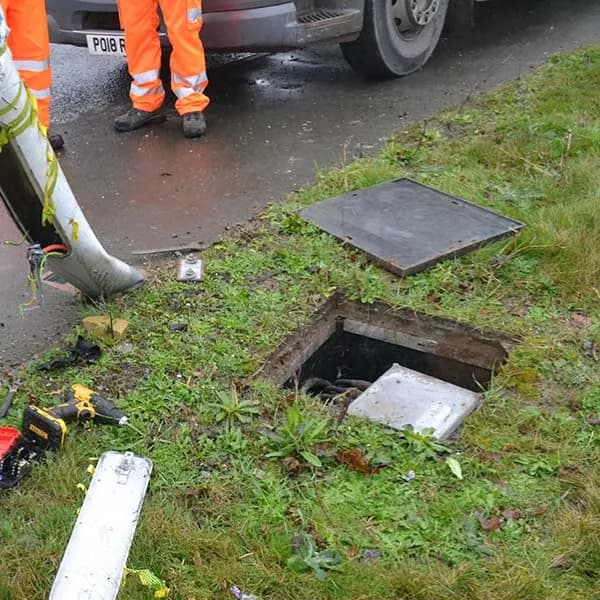

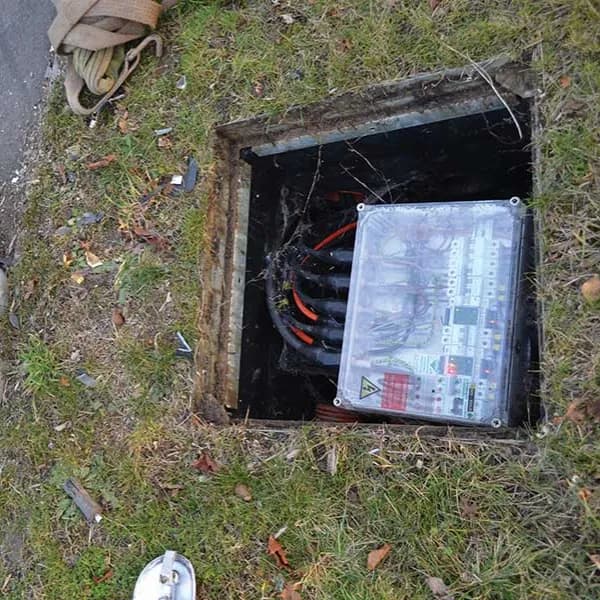

• SIS Multi Underground unit is located within an underground STAKKAbox™ Access Chamber, near the columns it protects.
• Equipment shelf bolted to chamber for secure mounting.
• Installation is simple to test and prove prior to commissioning.
• Impact sensor provides a means of confirming system operation during commissioning and routine maintenance.
• Units come pre-wired with 5 metres of flex (longer lengths can be supplied).
• Underground units can be supplied with IP68 in-line plugs and sockets.
• Customer-specific requirements such as a transformer or spur supply can also be provided.
