Product Overview

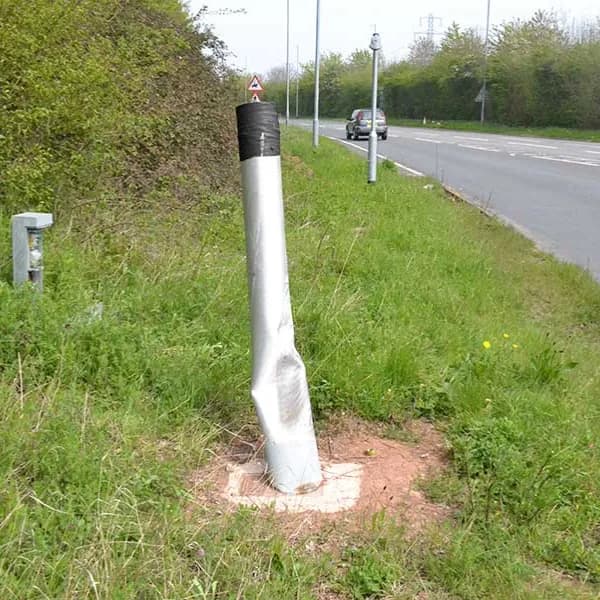

The SIS Mini: Electrical Disconnection System is designed specifically for the single isolation of individual illuminated posts or columns. Each pole is fitted with a small sensor that, in the event of an impact, communicates with the monitor board, triggering complete Low Voltage (LV) and Extra Low Voltage (ELV) isolation within 0.2 seconds. The monitor board is pre-fitted inside a small IP67 enclosure and installed within a non-passively safe structure or mini pillar that supplies power to the passive post or column. The system is fully compliant with EN12767:2007 (Electrical Isolation of Passively Safe Structures) and can be used with any type of passively safe column. The SIS Mini can be located up to 1km away from the SIS impact sensor and still guarantee complete electrical isolation within 0.4 seconds of impact. Being an above-ground unit, it simplifies the maintenance of the system, making it safer for engineers and more reliable.

Key Benefits

• Guaranteed electrical isolation of all volts within 0.2 seconds of impact.
• Compliant with EN12767:2007 (Electrical Isolation of Passively Safe Structures).
• Successfully tested at MIRA.
• Disconnection time officially proven with a timing device.
• Suitable for use with NE, LE, and HE Passively safe columns.
• Appropriate for use in non-passive columns.
• Guaranteed isolation even if the structure has not detached from its base.
• Isolates all volts even if the impact sensor is destroyed.
• Provides isolation of individual structures or circuits.
• Provides fault outputs for impact, voltage drop, and other potential maintenance issues.
• Fault outputs can be connected to CMS or RMS systems.
• Automatic restart and recheck after power failure.
• Impact sensors easily replaced after impact.
• Simple means of re-energising the circuit while the impacted structure remains isolated.
• Enables simple isolation of individual columns for maintenance works.
• Simple to test periodically.

Applications

• Street Lighting Columns.
• Illuminated Signs.
• Information Signs.
• CCTV Columns.
• VAS Signs.
• VMS Signs.

Features & Construction

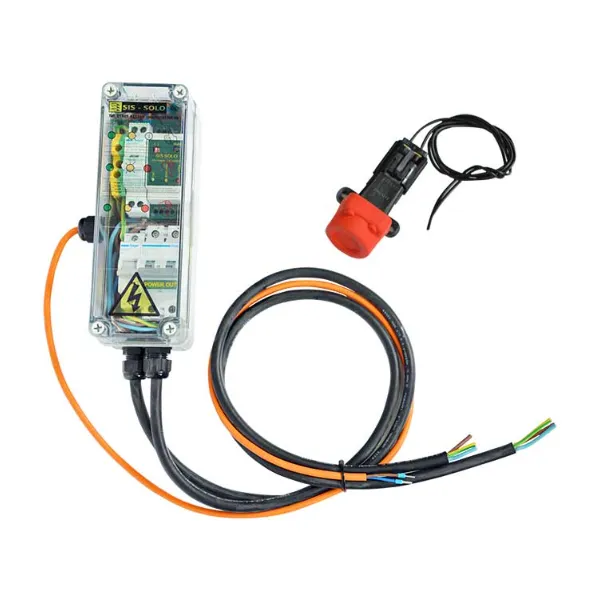

• SIS Solo Mini unit housed in a standard IP67 enclosure with DIN rail mounting.
• Enclosure accommodates one circuit only.
• SIS Solo Mini to be mounted on a standard Top Hat DIN rail along with associated shunt trip and DP circuit breaker.
• Requires a feeder pillar or column of a size to accommodate a 230x100 enclosure, along with a cutout with sub fuse facility.
• IP64 rated mechanical impact sensor to be mounted vertically within the structure.
• Cable terminations provided using IP69 plastic compression glands for flexible cables.
• Armoured cables should be terminated in the cutout.
• Optional IP68 rated plugs and sockets can be supplied, installed and secured just below ground level within the structure.
• Columns are to be housed into ductile iron Retention Socket foundation with bottom entry cable access bend.

Technical Specifications

Property	Details
Compliance	EN 12767: 2007, BS EN12767
Isolation Speed	Within 0.2 seconds (guaranteed), within 0.4 seconds (up to 1km from sensor)
Monitor Unit Enclosure Rating	IP67
Sensor Rating	IP64
Sensor Cable Distance	System can operate with impact sensor located 3km from SIS monitor board
Power Isolation	Complete LV and ELV (Zero Volt) isolation
Feeder Pillar Accommodation	230 x 100 enclosure size

Installation & Maintenance

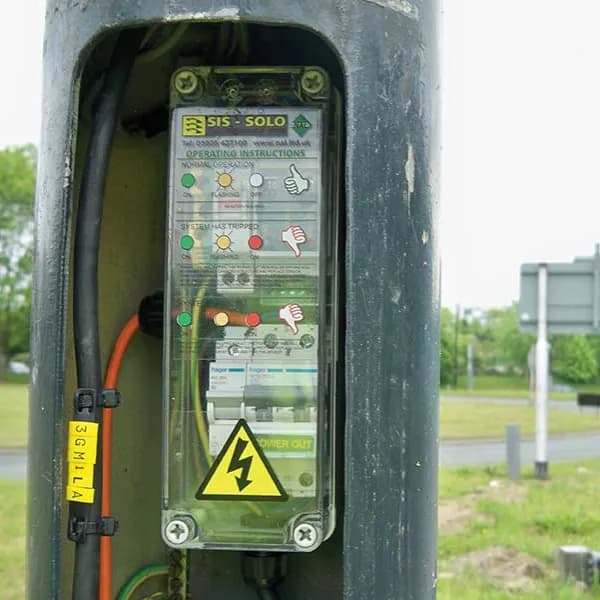

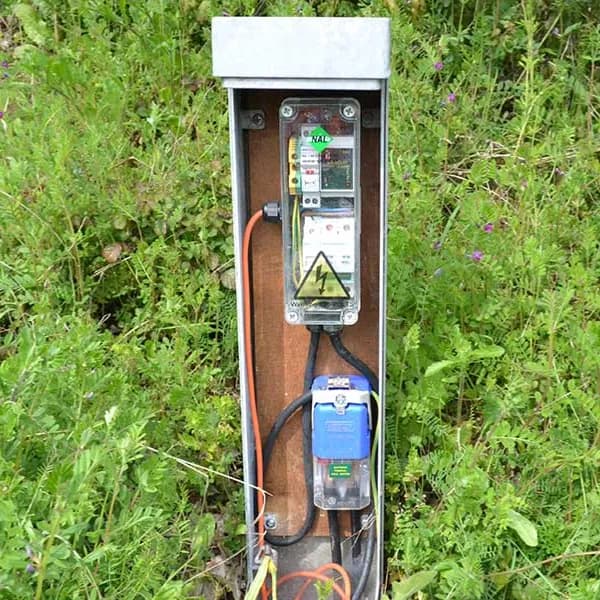

• Designed to be installed above ground in a mini feeder pillar or in a non-passive column supplying power to a passive column.
• Above-ground unit simplifies system maintenance, making it safer for engineers.
• Simple to test at commissioning stage and for periodic maintenance.
• Impact sensors provide a means of confirming system operation during commissioning and routine maintenance.
• In the unlikely event of a unit failure, the monitored structure can be isolated, removing potentially dangerous circuit voltages and drawing attention to the defect.
• Simple installation onto DIN rail or 3U rack.
• Design layout drawings and specifications are provided.
