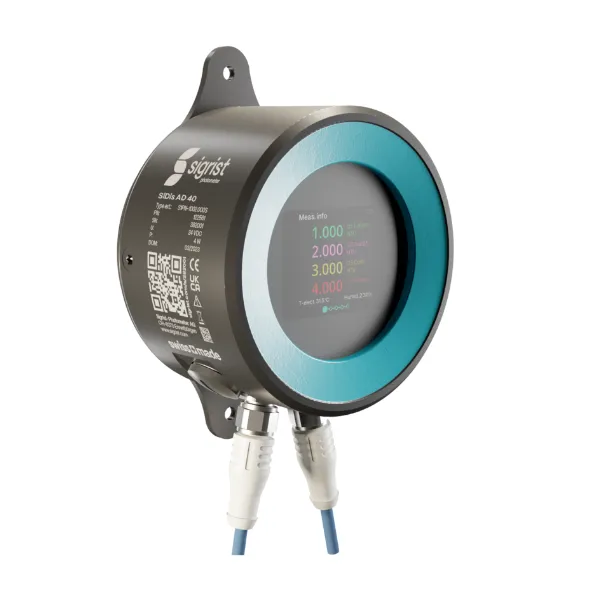

The SiDis AD 40 serves as the display and control unit for various Sigrist turbidity and colour meters. Its integrated colour display presents measured values, measured curves, and status information in a clearly visible position close to the metering point. The unit includes comprehensive maintenance functions, can be used for device calibration and shows historical information, including device messages and calibration data.
Presents measured values, measured curves, and status information directly at the metering point.
Includes maintenance functions and facilitates device calibration.
Displays clear status information with a link to support in case of warnings or alarms.
State-of-the-art configuration and value display can be accessed on a Smartphone.
Used as the primary display and control unit for Sigrist turbidity and colour meters.
Ideal for maintenance, calibration, and local monitoring of historical and real-time data.
Display: Can show up to 4 measured data simultaneously.
Graphics: Provides graphic representation of measurement readings for up to 7 days (displaying 1-day or 1-hour intervals).
Enclosure Material: PC/ABS UL94 V0.
Touchscreen Material: Soda-Lime tempering Glass.
Specification Value Display 1/4 VGA with touchscreen Resolution 320 x 240 Pixel Diagonal 2.4" Dimensions 105.5 x 71 mm Weight Approx. 0.4 kg Protection Class IP 66
Outputs: 4 x 0/4 ... 20 mA outputs.
Protocols: Modbus RTU, Profibus, Profinet, Power over Ethernet (PoE), and WLAN.
