Product Overview

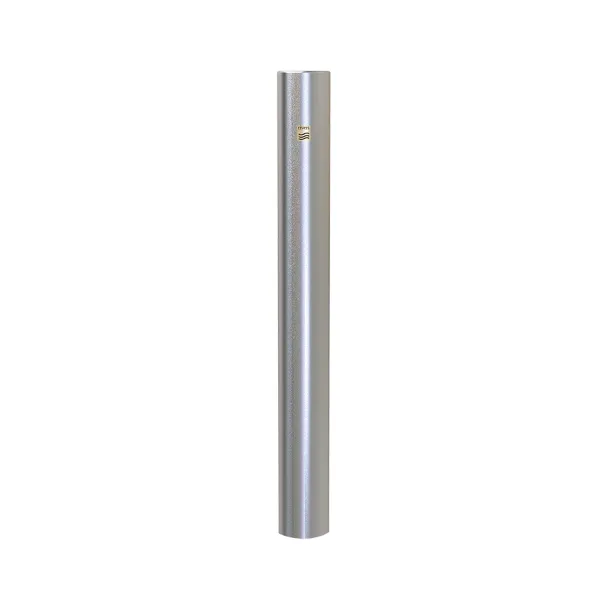

The Shannon 114 Bollard (G774), from the Rivers street furniture range by IPL group, is a contemporary design bollard made from 316 stainless steel. Standing at 900mm tall with a Ø114mm diameter and a flat top, it is ideal for modern new showrooms, pedestrian areas, and upgrades of existing streetscapes. Its brushed stainless steel finish offers a sleek, low-maintenance aesthetic.

Key Benefits

• Contemporary Design: Features a sleek, modern aesthetic with a flat top and brushed 316 stainless steel finish, ideal for contemporary environments.
• Superior Material: Constructed from 316 stainless steel, offering exceptional corrosion resistance and durability, especially suitable for coastal or demanding urban settings.
• Durable Construction: Built with strong stainless steel throughout, ensuring robust performance and a long service life.
• Versatile Installation: This bollard can be specified for both ground-fixed permanent installation and removable installation using the RS115x300 socket, providing flexibility for access control.

Applications

The Shannon 114 bollard is suitable for a range of modern applications, including:

• New showrooms and commercial developments.
• Pedestrian areas and public plazas.
• Upgrades of existing streetscapes, complementing modern paving like granite.
• Managing access control, often using a combination of fixed and removable bollards.

Features & Construction

• Strong 316 stainless steel post.
• Brushed finish as standard.
• Flat top design.
• Available in both ground-fixed and removable configurations.
• Removable option compatible with the RS115x300 Retention System socket.
• Standard height of 900mm above ground.
• Standard depth below ground is 300mm.
• Core post diameter of Ø114mm.

Customisation Options

• Specific diameter & height requirements (consult IPL group for custom options).
• 3M diamond grade reflective tape for increased visibility.
• 8mm galvanised heavy-duty short-link chain for creating barriers.
• Customer requirements for top & finish.
• Reinforced core post for enhanced impact resistance.
• RS socket (for removable & locking option).

Technical Specifications

Specification	Value
Height (above ground)	900mm
Depth (below ground)	300mm
Diameter (core post)	Ø114mm
Top Design	Flat
Installation Type	Fixed/Removable
RS socket option	RS115x300
Total Weight (approx.)	10.2kg

Installation & Maintenance

• Fixed Installation: Direct burial to 300mm depth provides a secure, permanent fixture.
• Removable Installation: The RS115x300 Retention System socket allows for quick installation and removal, anticipating installation demands and maintenance needs.
• Maintenance: The robust 316 stainless steel construction and brushed finish ensure low maintenance. Periodic inspection and cleaning are recommended.
