Product Overview

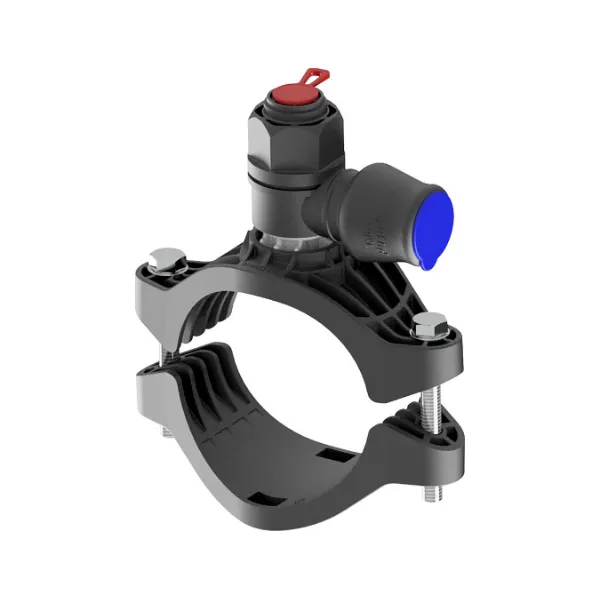

The Self-Tapping Ferrule Strap (For PE and PVC Mains Pipe) is designed to provide a secure and reliable connection to PE and PVC mains pipes. This self-tapping strap simplifies the process of creating a connection point directly onto the main pipe. It is constructed from a combination of high-quality, corrosion-resistant materials, including gunmetal, aluminium bronze, polypropylene, stainless steel fasteners, and EPDM rubber seals, ensuring durability and a long service life. The strap is rated for a nominal pressure of PN 16 (working pressure) and a test pressure of 24 bar, suitable for medium temperatures up to 23°C. It is available for various mains pipe sizes, from 63mm (DN50) to 125mm (DN125), with different outlet types including Pushfit for PE and BSP Female connections.

Key Benefits

• Self-tapping design for easy and direct connection to mains pipes.
• Suitable for both PE and PVC mains pipe materials.
• Constructed from a combination of corrosion-resistant metals and durable plastics.
• Reliable and secure connection for water distribution.
• High nominal pressure rating of PN 16 with a test pressure of 24 bar.
• Available with multiple outlet types to suit various connection requirements.

Applications

• Creating new connection points to existing PE and PVC mains pipes.
• Water distribution networks.

Features & Construction

• Strap: Designed to fit around mains pipe for self-tapping connection.
• Outlets: Available with Pushfit for PE (25mm or 32mm) or ¾” BSP Female connections.
• Stems: Available in ½” - 1”.

Technical Specifications

General Technical Data

Parameter	Specification
Nominal Pressure (PN)	Working 16 bar, test 24 bar
Medium Temperature	Up to 23°C
Sizes Mains Pipe	63mm, 90mm, 110mm, 125mm
Stems	½” - 1”
Outlets	25mm or 32mm Pushfit for PE; ¾” BSP Female
Metals Material	Gunmetal to BS EN 1982:2008 CC491K; Aluminium Bronze to BSEN 12167 grade CW307G condition M
Plastics Material	Polypropylene
Fasteners Material	Stainless Steel (A4)
Seals Material	EPDM rubber

Product Code and Dimensions

Product Code	Pipe Nom	Strap Size (mm)	Outlet Size	Outlet Type	Banjo	Strap A (mm)	Strap B (mm)	Strap C (mm)	Strap D (mm)
E11910	PVC/PE 63mm (DN50)	63	25mm	Pushfit Plastic	—	72	122	169	81
E11911	PVC/PE 63mm (DN50)	63	32mm	Pushfit Plastic	—	73	122	169	81
E11913	PVC/PE 90mm (DN80)	90	25mm	Pushfit Plastic	—	85	153	196	81
E11914	PVC/PE 90mm (DN80)	90	32mm	Pushfit Plastic	—	86	153	197	81
E11916	PVC/PE 110mm (DN100)	110	25mm	Pushfit Plastic	—	95	185	216	81
E11917	PVC/PE 110mm (DN100)	110	32mm	Pushfit Plastic	—	96	185	217	81
E11919	PVC/PE 125mm (DN125)	125	25mm	Pushfit Plastic	—	103	209	231	81
E11920	PVC/PE 125mm (DN125)	125	32mm	Pushfit Plastic	—	104	209	232	81
E11912	PVC/PE 63mm (DN50)	63	¾” BSP Female	Gunmetal	—	73	122	168	81
E11915	PVC/PE 90mm (DN80)	90	¾” BSP Female	Gunmetal	—	85	153	195	81
E11918	PVC/PE 110mm (DN100)	110	¾” BSP Female	Gunmetal	—	95	185	215	81
E11921	PVC/PE 125mm (DN125)	125	¾” BSP Female	Gunmetal	—	103	209	230	81
