Technical documents and specifications for this product.
S461 TN Datasheet

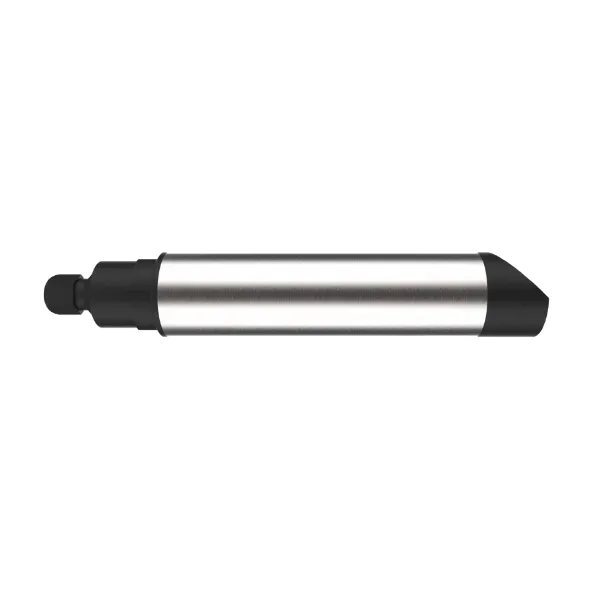

The S461 TN infrared turbidity sensor provides reliable concentration measurement using an optical measuring process based on infrared light pulsing beams scattering.
| Specification | Value |
|---|---|
| Materials | Black PVC and AISI 316 Body, Special Glass Optics with oleophobic treatment, NBR and Silicon OR |
| Thread | 1” GAS |
| Measuring ranges | 0-1000 NTU, 0-4000 NTU |
| Measuring method | 90° Scattered light |
| Calibration method | 1-point for scale with formazin standard solution |
| Resolution | - 0.01 NTU range 0-1000 NTU - 0.01 NTU range 0-4000 NTU |
| Accuracy | - ±2% at the measuring point range 0-1000 NTU - ±5% at the measuring point range 0-4000 NTU |
| Repeatability | - ±5 NTU range 0-1000 NTU - ±20 NTU range 0-4000 NTU |
| Response T90 | < 60 s |
| Working temperature | 0 to 40 °C |
| Max working pressure | 4 bar |
| Max absorption | 3 W |
| Mechanical protection | IP68 Sensor+cable |
| Cable | 10m integral |
| Power supply | 12 to 24 V DC |
| Outputs | RS485 (4-20mA optional) |
