S461 ST Datasheet

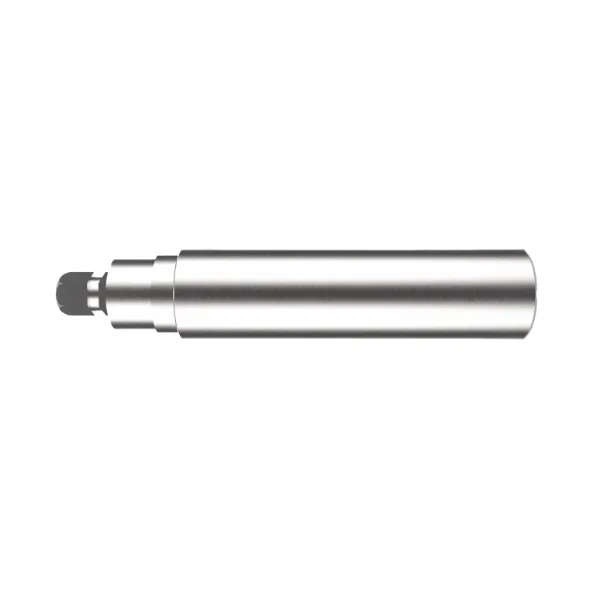

The S461 ST infrared sensor provides reliable concentration measurement of both suspended solids and turbidity using an infrared measuring method based on a 90° to 140° scattering principle.
| Specification | Value |
|---|---|
| Materials | Stainless Steel 1.4401 (316) body, Special glass windows, NBR O-ring |
| Thread | 1” GAS |
| SS measuring ranges | 0-500 g/l depending on the sludge type |
| Turbidity measuring ranges | 0-4000 NTU |
| Measuring method | Multi sensor scattering |
| Calibration method | By points with freely settable tables |
| Resolution of SS | 0.5 g / l |
| Resolution of turbidity | ± 1 NTU |
| Accuracy | ± 5% on the measuring point |
| Repeatability of SS | ± 0.5 g/L |
| Repeatability of turbidity | ± 1 NTU |
| Response T90 | < 60 s |
| Working temperature | 0 to 60 °C |
| Max working pressure | 5 bar |
| Max absorption | 3 W |
| Mechanical protection | IP68 – cable included |
| Cable | 10m integral |
| Power supply | 12 to 24 V DC |
| Signal interface | RS485 (4-20mA optional) |
