Technical documents and specifications for this product.

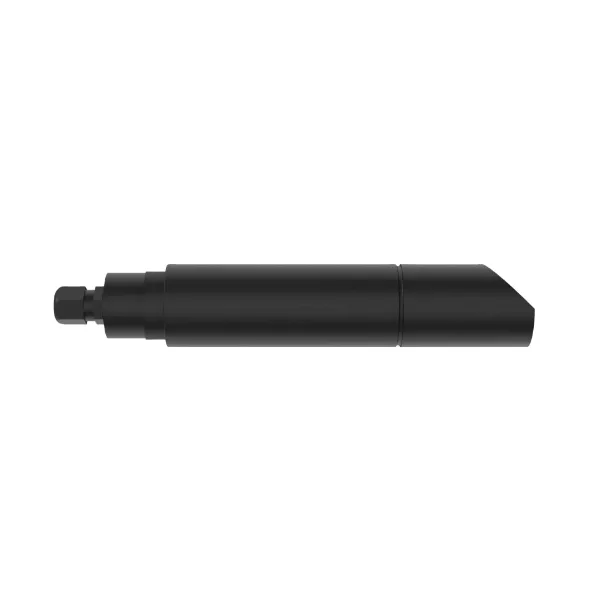

S461 LT Datasheet
The S461 LT infrared turbidity sensor provides reliable concentration measurement using an optical measuring process based on infrared light pulsing beams scattering.
| Specification | Value |
|---|---|
| Materials | Black PVC Body, Special Glass Optics with oleophobic treatment, Viton and Silicone OR |
| Thread | 1” GAS |
| Measuring ranges | - 0-10 NTU - 0-100 NTU |
| Measuring method | 90° Scattered light |
| Calibration method | 1-point and/or 2-point for scale |
| Resolution | - 0.01 NTU range_0-10NTU (0.001NTU up to 9.999NTU) - 0.1 NTU range_0-100NTU |
| Accuracy | - ±1% at the measuring point range_0-10 NTU - ±2% at the measuring point range_0-50 NTU - ±5% at the measuring point range_0-100 NTU |
| Repeatability | - ±0.05 NTU f.s 10NTU - ±0.5 NTU f.s 100NTU |
| Response T90 | < 60 s |
| Working temperature | 0 to 40 °C |
| Max working pressure | 4 bar |
| Max absorption | 3 W |
| Mechanical protection | IP68 Sensor+cable |
| Cable | 10m integral |
| Power supply | 12 to 24 V DC |
| Outputs | RS485 (4-20mA optional) |
