Technical documents and specifications for this product.
S411 DIG N Datasheet

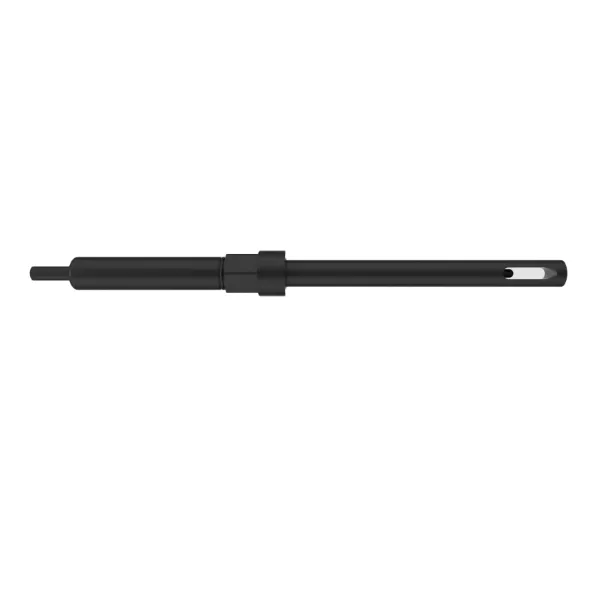

The S411 DIG/N digital conductivity electrode provides reliable conductivity measurement thanks to the use of a 4-electrode graphite sensor. It communicates measurements via the MODBUS RTU protocol and features an integrated temperature sensor.
The sensor S411 DIG/N is used for the digital measure of conductivity in pure and process waters.
The S411 DIG/N Electrode is suitable for conductivity measures in various applications. It is compatible with firmware starting from 50XX8PW5.
| Specification | Value |
|---|---|
| Materials | Epoxy electrode and PPS bodies, PPS probeholder, Viton® O-Rings, Graphite Electrodes, AISI316 Temperature Sensor |
| Thread | 3/4” NPT probeholder, Pg13,5 the electrode alone |
| Measuring ranges | 1 μS/cm - 200 mS/cm (K=0,55 nominal) |
| Measuring method | Conductive with 4 electrodes |
| Calibration method | 1 point or 2 points with certified standard conductive solution |
| Resolution | 1 μS/cm |
| Accuracy | ±4% on the reading point |
| Repeatability | ±0.2% on the reading point |
| Response | < 5 s |
| Max refresh time | 0.1 s |
| Temperature resolution | 0.1 °C |
| Temperature accuracy | ± 0.5 °C |
| Temperature response time (T90) | 25 s |
| Operating temperature | -5 °C to 80 °C in non-frozen water |
| Max operating pressure | 5 bar |
| Protocol type | Modbus RTU |
| Cable length | 10m integrated with the sensor |
| Current absorption | < 250 mW |
| Power supply | 12 to 24 V DC |
| Dimensions (LxHxP) | 27 x 213 x 27 mm |
