Product Overview

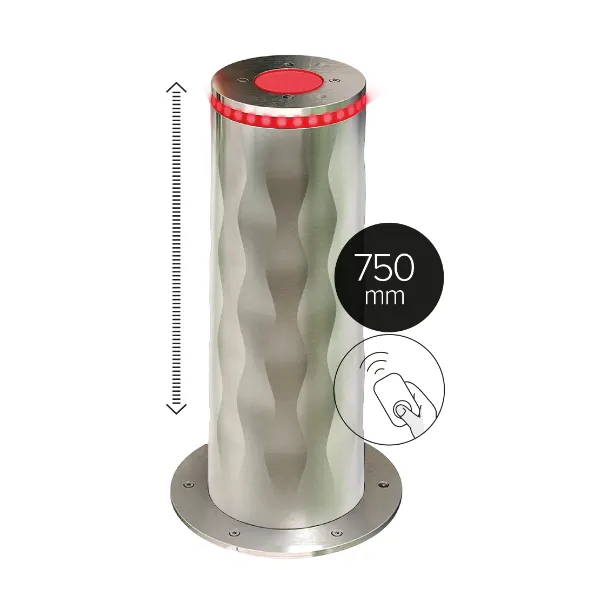

The Rambla: Automatic Telescopic Bollard is an automatic hydraulic bollard designed for access control on public roads, communities, and companies. It features a satin-finish AISI-304 stainless steel plunger with dimensions of Ø220 x 600mm height and 8mm thickness. The bollard includes a surface cover, chassis, fasteners, and stainless steel screws for enhanced strength and durability. Its control panel unit is housed in a lockable, watertight metal cabinet, which contains a programmable PLC and protective measures. The design incorporates immediate safety responses for vehicles; when a magnetic loop detects a car or motorcycle, the bollard lowers automatically. For people or other obstacles, a pressure sensor triggers the bollard to lower at the slightest sign of impact. Its design, without internal guides, prevents jamming problems, and the top location of the electrical mechanism protects components from water contact. The Rambla bollard holds an APPLUS impact certificate, based on PAS 68 regulations.

Key Benefits

• Automatic hydraulic operation for access control.
• Robust construction with satin-finish AISI-304 stainless steel plunger.
• Includes a lockable, watertight metal cabinet with a programmable PLC.
• Design without internal guides prevents jamming.
• Top-located electrical mechanism protects components from water.
• Immediate safety response: automatic lowering for vehicles (magnetic loop) and people/obstacles (pressure sensor).
• Certified according to PAS 68 regulations.

Applications

• Public roads access control.
• Communities and residential areas.
• Company premises.
• Any location requiring controlled vehicular access with high safety standards.

Features & Construction

• Plunger Material: Satin-finish AISI-304 stainless steel.
• Plunger Thickness: 8 mm.
• Control Panel: Lockable, watertight metal cabinet with programmable PLC.
• Safety Features: Magnetic loop detection for vehicles, pressure sensor for people/obstacles.
• Lighted Crown: Yes, LED RGB (standard).

Technical Specifications

Property	Pilona Rambla 600 (H6008R)	Pilona Rambla 750 (H7508R)
Height from Ground Level	600 mm	750 mm
Bollard Diameter	Ø220 mm	Ø220 mm
Bollard Thickness	8 mm	8 mm
Bollard Material	Stainless steel AISI 304 satin finish	Stainless steel AISI 304 satin finish
Motor Power	230V 50Hz, 300W (3,000rpm)	230V 50Hz, 300W (3,000RPM)
Temperature Range	-20°C to +80°C	-20°C to +80°C
IP Protection Rating	IP67	IP67
Working Frequency	1400 Nw	1400 Nw
Ascent Time	3-4 seconds	3-4 seconds
Lowering Time	3-4 seconds	3-4 seconds
Control Panel	BC20	BC20
Impact Resistance	250,000 Joules	250,000 Joules
Reflective Band	Optional	Optional
Safety of People and Property	Optional	Optional
Lighted Crown	Yes, LED RGB	Yes, LED RGB
Traffic Light Function	Yes	Yes

Installation & Maintenance

• Designed for access control on public roads, communities, and companies.
• Control panel unit is in a lockable, watertight metal cabinet for protection.
• Design without internal guides prevents jamming problems.
• Electrical mechanism located at the top protects components from water contact.
