Product Overview

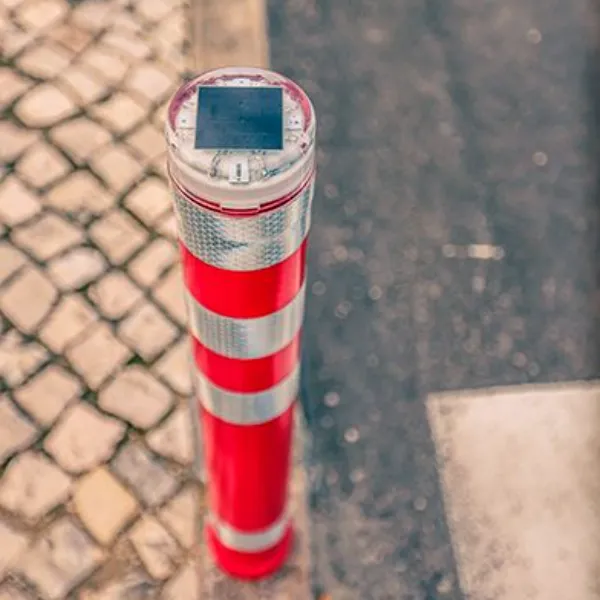

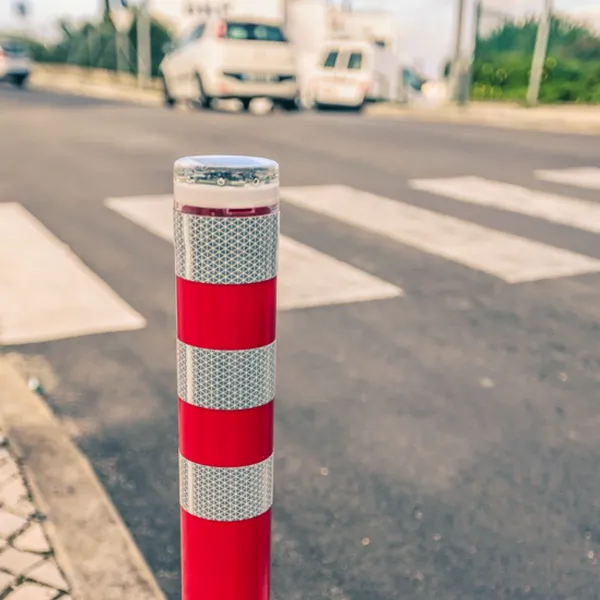

The Quick-Flex Smart Flexbollard LED, from IPL group, represents the most recent development in Road Signaling. This illuminated reboundable polyurethane bollard incorporates an LED in the top, allowing for effective signaling and alerting in areas of reduced visibility such as walkways, points of divergence, and tight curves. It is suitable for ground-fixed installation and is ideal for lane protection, cycle paths, and upgrades of existing streetscapes. While highly flexible and capable of returning 100% to its original shape after knockdown, it is not intended for the axle of the track due to the rigidity of its upper part.

Key Benefits

• Enhanced Visibility & Alerting: Features LED illumination with 8 white spotlights and flashing light, providing 360° visibility to signal and alert in areas of reduced visibility.
• High Flexibility & Reboundability: Produced using highly flexible polyurethane, it has 100% ability to return to its original shape immediately after knockdown, resisting multiple impacts.
• Solar Powered Autonomy: Achieves 72 hours of autonomy with a full 3-hour charge, offering sustainable and continuous illumination.
• Durable & Weather-Resistant: The top is made with "Bulletproof PC" material, and the bollard offers UV and Thermal Degradation protection, ensuring longevity.
• Fast Installation: Designed for quick installation, saving time and effort.

Applications

The Quick-Flex Solar LED Reboundable Bollard is suitable for a variety of traffic management and safety applications where enhanced visibility is crucial, including:

• Signaling and alerting in areas of reduced visibility (e.g., walkways, points of divergence, tight curves).
• Lane protection on roadways.
• Demarcation and guidance on cycle paths.
• Upgrades of existing streetscapes requiring illuminated safety features.

Features & Construction

• Highly flexible polyurethane construction material.
• Top made with "Bulletproof PC" material.
• LED illumination with 8 white spotlights.
• Flashing light capability.
• 360° Visibility.
• 72 hours of autonomy with a full 3-hour charge.
• 100% ability to return to its original shape.
• UV and Thermal Degradation protection.

Customisation Options

• Selection of colours and reflective tape options.
• Internal reinforcement available for specific heights.
• Available with a Regular Base or Glass Sphere base.

Technical Specifications

Specification	Value
Height (above ground)	400mm (H400), 680mm (H680), 800mm (H800), 1000mm (H1000)
Screw Depth (below ground)	100mm
Diameter (Base)	Ø80mm (Ø100mm)
Reflective Tape	50mm
Total Weight (approx.)	1.0kg (H400), 1.2kg (H680), 1.7kg (H800), 1.9kg (H1000)
Internal Reinforcement	N/A (H400), 30cm (H680), 60cm (H800, H1000)
Metallic Sleeve (Ø)	22 (for H800, H1000)
Base Type	Regular Base / Glass Sphere

Installation & Maintenance

• Installation: Designed for easy and fast ground-fixed installation. The process involves drilling a 24mm hole (100mm insertion depth), cleaning it, filling with chemical anchor (e.g., Wurth WIT-PM 200, DeWalt PV45, Sika Anchorfix), and inserting the bollard assembly. For removable use, a 1mm PVC base disc is applied; for permanent use, it is applied without the disc. Curing times depend on the adhesive datasheet. Further advice on QUICK-FLEX bollards including specific installation requirements is available from IPL group.
• Maintenance: The highly flexible polyurethane and robust top provide protection against impacts, UV, and thermal degradation. The solar-powered LED system offers high autonomy, minimizing electrical maintenance.
