Product Overview

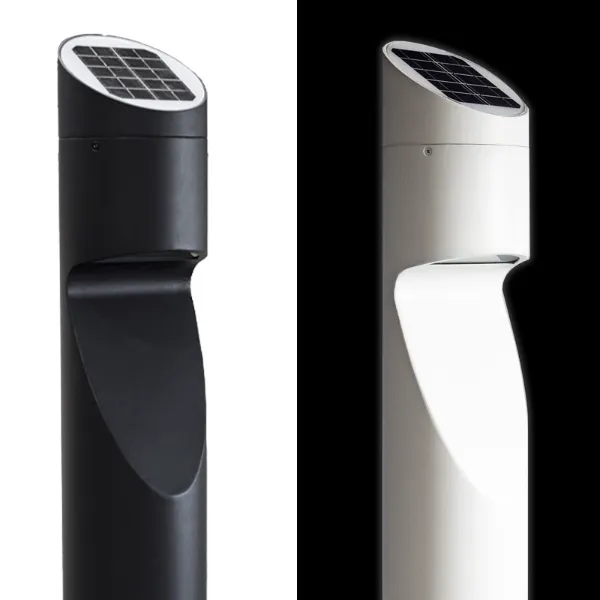

The Pro Solar Eccentrica is an angled solar path light from IPL group, available in both a matt white and a black finish in warm and daylight white. This unique design angles the light source downwards, illuminating the path below without glare. The solar panel top is also angled, preventing rainwater from sitting on the solar bollard and deterring people from sitting or placing objects on top. The solar panel can be removed and rotated to 6 different positions to ensure it remains south-facing, even when light is required in a different direction. It is a highly efficient and durable solution for path illumination in public and holiday park areas.

Key Benefits

• Glare-Free Illumination: The unique angled light source directs light downwards, effectively illuminating the path below without causing glare.
• Optimised Solar Charging: The angled solar panel prevents rainwater accumulation and can be rotated to 6 different positions to ensure optimal south-facing charge, regardless of light direction.
• Enhanced Durability & Safety: Made from durable die-cast aluminium with a robust IP65 rating, and its design deters people from sitting or placing objects on top, making it ideal for public areas.
• Long-Life Components: Features an adjustable monocrystalline solar panel (up to 25-year life) and a replaceable LiFePO4 Lithium Battery (LFP long life).
• Energy Efficient: High output Epistar LEDs provide superior illumination with low power consumption, offering up to 23 hours of illumination time at full charge.

Applications

The Pro Solar Eccentrica Path Light is ideal for illuminating pathways and public areas, including:

• Public parks and gardens.
• Holiday parks and resorts.
• Walkways and pedestrian zones.
• Commercial and residential developments requiring reliable solar path lighting.

Features & Construction

• Angled, Adjustable Monocrystalline Solar Panel (5v/3W) with up to 25-year life.
• Replaceable LiFePO4 Lithium Battery (3.2v 6AH) for long life.
• High Output Epistar LED Chips (1.2W) providing Daylight White (6000K-6500K) or Warm White (3000K) colour temperatures.
• Down Light / Spread Light (anti-glare) with a 120-degree beam angle.
• Durable Die Cast Aluminium (6063 Aluminium) construction with Tempered Glass.
• Available in Matt White or Satin Black powder-coated finish.
• Includes a Light Sensor for automatic operation.
• IP65 rated for outdoor use.
• UKCA, CE, ROHS certified.

Customisation Options

• Choice of Matt White or Satin Black powder-coated finish.
• Choice of Daylight White (6000K-6500K) or Warm White (3000K) colour temperature LEDs.
• Solar panel can be removed and rotated to 6 different positions.

Technical Specifications

Specification	Value	Source
Range	Pro-Solar
Finish	Black (powder coated), White (powder coated)
LEDs	Epistar LED Chips
Wattage	1.2W
Lumen Output	150 lm
Colour Temperature	Daylight White 6000K-6500K, Warm White 3000K
Beam Angle	120 Degrees
Illumination Time (Full Charge)	Up to 23 Hours
Discharge Cycle	1hr 100% + 2hrs 80% + 2hrs 50% + 9hrs 30%
LED Expected Life	Up to 50,000 hours
Sensor	Light Sensor
IP Rating	IP65
Battery Type	3.2v 6AH LiFePO4 Lithium Battery (Replaceable)
Solar Panel	5v/3W Monocrystalline Solar Panel (approx. 25-year life)
Charging Time	6 hours (AM1.5.1000W / m² 25°C)
Working Temperature	-25°C to 55°C
Weight	3.8KG (net), 4.4KG (gross)
Materials	6063 Aluminium, Tempered Glass
Mounting Options	Internal Surface Mount
Dimensions	Height = 800mm, Post diameter = 160mm
Guarantee	5 Years
Certification	UKCA, CE, ROHS
UK Registered Design	6089623
Waste Disposal/Recycling	Batteries: BPRN0843, Electrical: WEE/KC3440XY

Installation & Maintenance

• Installation: Designed for Internal Surface Mount installation. Further advice on the Pro Solar Eccentrica bollard and Rivers street furniture including specific installation requirements is available from IPL group.
• Maintenance: Features a replaceable battery and a long-life solar panel for extended performance. The angled design prevents rainwater accumulation, contributing to lower maintenance. The durable materials ensure resilience in various outdoor conditions.
