Product Overview

The Polypit Modular Chambers are an innovative, unique, and patented system designed as an excellent alternative product for companies in the telecommunications, energy, water supply, and sewage industries. Constructed from 100% recycled polyethylene, polypropylene, and polycarbonate, these chambers can withstand loads up to 90 tons (F-900). They offer resistance to various environmental challenges, including water drainage system impact, high temperature and frost damage, road salt, oil and fuel leaks, pressure and impact from traffic, and leaks of corrosive substances like acids and alkaline solutions. The chambers are designed to resist horizontal and vertical displacements after assembly, transferring any side loads throughout the entire Polypit assembly rather than individual segments. They come with a 20-year warranty on chamber segments and are reusable after dismantling.

Key Benefits

• Made from 100% recycled polyethylene, polypropylene, and polycarbonate.
• Load resistance up to 90 tons (F-900).
• Resistant to impact from water drainage systems, high temperature and frost damage, road salt, oil and fuel leaks, pressure and impact from traffic, and leaks of corrosive substances.
• Quick modular assembly.
• Can be installed on existing installations.
• Full, immediate, dynamic load resistance up to F-900.
• Low installation cost.
• Long service life (50 years in the ground).
• Full compliance with EN-124 standards.
• Self-extinguishing material.
• Stackable up to 200 segments.
• Easy to load and unload.
• Easy to cut entry holes and adjust on-site.
• Instant dynamic strength.
• Lower transport costs due to lightweight design.
• No need for lifting equipment for most segments.
• Chemical resistant.
• Withstands extreme temperatures.
• Simple installation.
• Equipment can be mounted directly onto chamber walls.
• 20-year warranty on chamber segments.
• Reusable after dismantling.
• Height adjustable.
• Lightweight per segment.

Applications

• Telecommunications industry.
• Energy industry.
• Water supply industry.
• Sewage industry.
• Highways.
• Railway tracks.

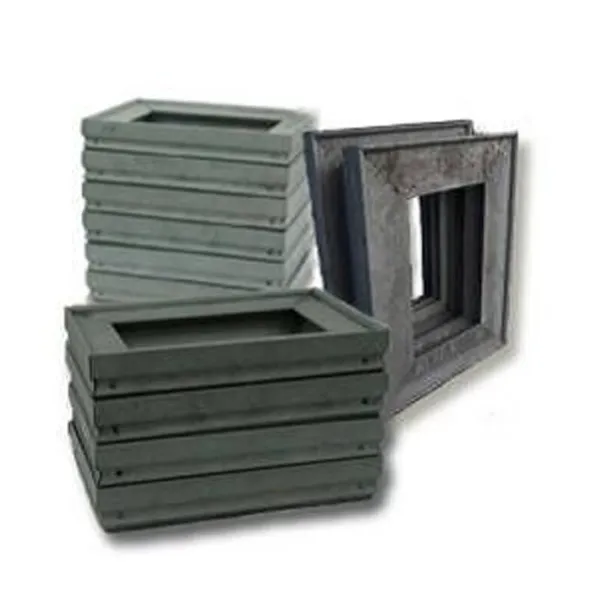

Features & Construction

• Material: 100% recycled (polyethylene, polypropylene, polycarbonate).
• Construction: Modular chamber sections, stackable up to 200 segments.
• Designed to resist horizontal and vertical displacements.
• Side loads are transferred throughout the entire assembly.
• Self-extinguishing material.

Technical Specifications

Property	Value
Material	100% recycled (polyethylene, polypropylene, polycarbonate)
Load Rating	Up to 90 tons (F-900)
Compliance	EN-124 standards
Service Life (in ground)	50 years
Warranty (chamber segments)	20 years
Individual Segment Weight	Lightweight (exact weight not specified, but implies below manual handling limits)

Available Sizes

Polypit Modular Chambers are available in three standard sizes:

Size Type	Dimensions (Width x Length)	Typical Application
Standard Size	615 x 445 mm	Sluice valves, Hydrants

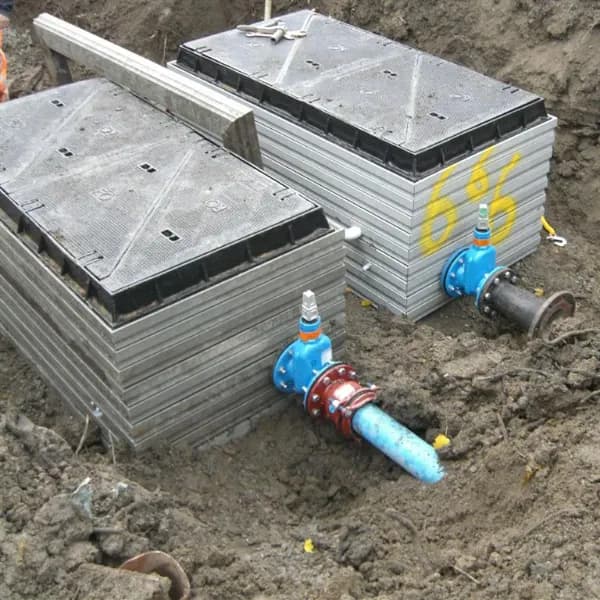

1m sq. Size	1090 x 1090 mm	Meters, Flushing valves
Multi-Leaf Size	1430 x 820 mm	PRVs

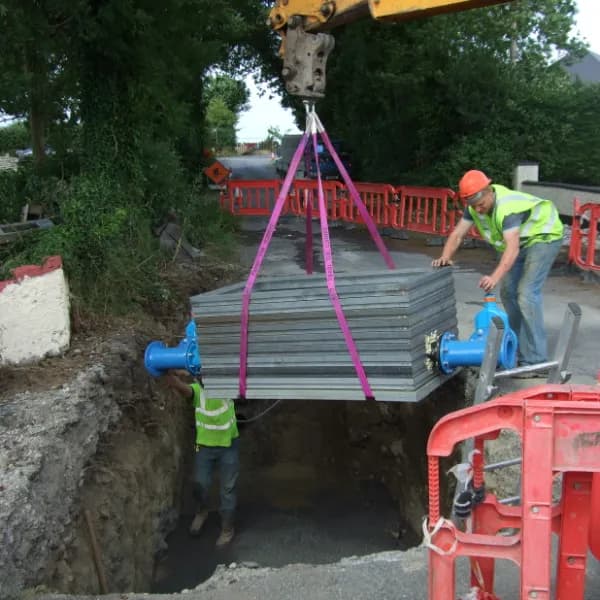

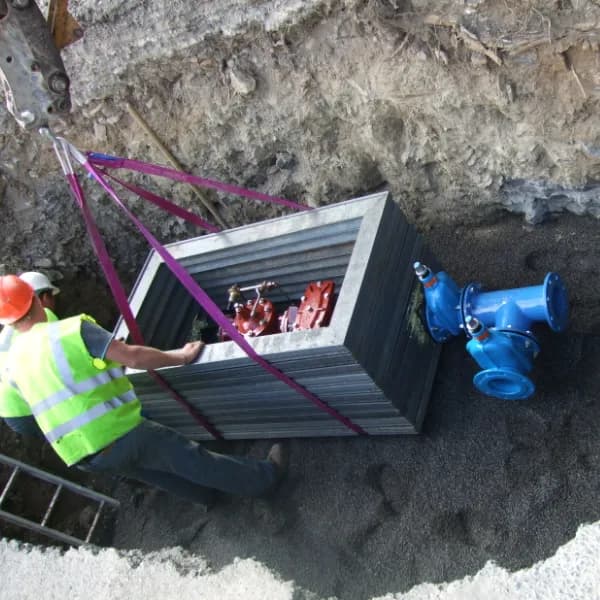

Installation & Maintenance

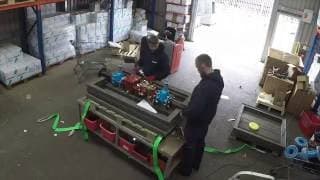

• Quick modular assembly for low installation cost.
• Can be installed on existing installations.

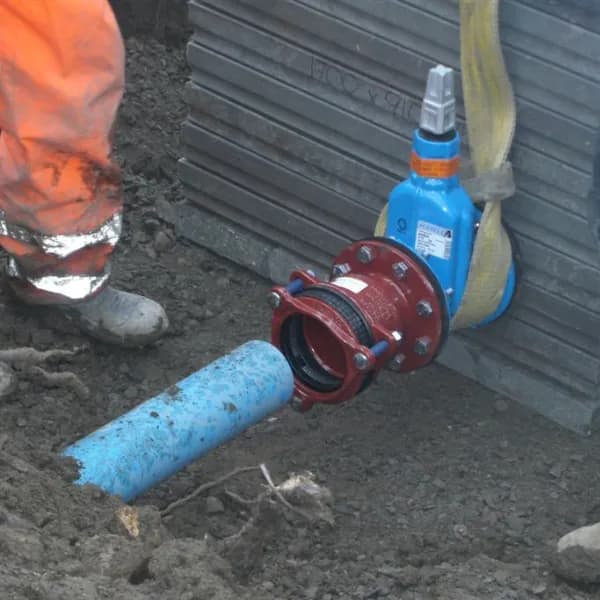

• Easy to cut entry holes and adjust on-site.
• No need for lifting equipment for most segments due to lightweight design.
• Equipment can be mounted directly onto chamber walls.
• Reusable after dismantling.
• Height adjustable.
