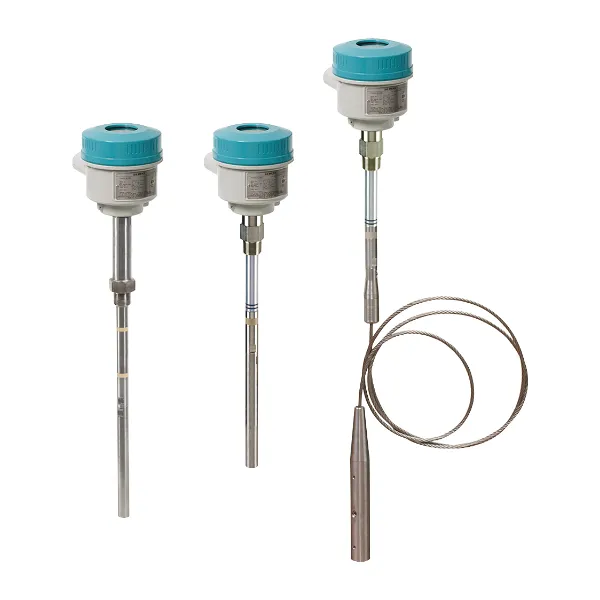

Siemens CLS 300
Pointek CLS300 (digital version) is an inverse frequency shift capacitance level and material detection switch with optional rod/cable choices and configurable output. It is ideal for detecting liquids, solids, slurries, foam, and interfaces in demanding conditions where high pressure and temperatures are present and has the capability to tune out build-up on the probe. The digital version includes PROFIBUS PA, an LCD display, and advanced diagnostic features.
Pointek CLS300 digital version provides an integral LCD display for stand-alone use, with PROFIBUS PA communication (Profile version 3.0, Class B) when required. Solid-state switch alarm is standard. The robust design of CLS300 makes it specifically applicable for heavy solids applications where abrasive materials occur, as in the mining industry. The fully potted electronics are unaffected by condensation, dust, or vibration. Wetted parts are made of stainless steel with a PFA shield for high chemical resistance, and of ceramic and stainless steel for the high temperature version. Materials with low or high dielectric constants can be accurately detected. The unique Active Shield suppresses interference from material build-up or long installation nozzles.
The unique modular design of the Pointek CLS300 provides a wide range of configurations, process connections, extensions, and approvals to meet the temperature and pressure requirements of specific applications. The modular design makes ordering easier and reduces stocking requirements. A wide range of probe configurations are available, including rod and cable versions.
Key Applications: liquids, slurries, bulk solids, relatively high pressure and temperature, hazardous areas, milling and mining applications.
| Specification | Value |
|---|---|
| Mode of operation | Inverse frequency shift capacitive level detection |
| Measuring principle | Change in picoFarad (pF) |
| Solid-state output - Output | Galvanically isolated |
| Solid-state output - Protection | Against reversed polarity (bipolar) |
| Solid-state output - Max. switching voltage | 30 V (DC) 30 V peak (AC) |
| Solid-state output - Max. load current | 82 mA |
| Solid-state output - Voltage drop | < 1 V, typical at 50 mA |
| Solid-state output - Time delay (pre or post switching) | Programmable by user (0 ... 100 s) |
| Fail-safe mode | Min. or max. |
| Connection | Removable terminal block |
| Accuracy - Resolution | 1 % change in actual capacitance |
| Accuracy - Max. temperature error | 0.2 % of actual capacitance value |
| Rated operating conditions - Location | Indoor/outdoor |
| Ambient conditions - Ambient temperature | ‑40 ... +85 °C (‑40 ... +185 °F)2) |
| Ambient conditions - Storage temperature | ‑40 ... +85 °C (‑40 ... +185 °F) |
| Medium conditions - Relative dielectric constant εr | Min. 1.5 |
| Medium conditions - Process temperature - Rod/Cable version | -40 ... +200 °C (-40 ... +392 °F)2) |
| Medium conditions - Process temperature - High Temperature version | -40 ... +400 °C (-40 ... +752 °F) |
| Medium conditions - Process pressure3) | -1 ... +35 bar g (-14.6 ... +511 psi g) |
| Design - Material (enclosure) | Powder-coated aluminium with gasket |
| Design - Degree of protection | Standard: Type 4/NEMA 4/IP65 Optional: Type 4/NEMA 4/IP68 |
| Design - Cable inlet | 2 x M20 x 1.5 thread (option: 2 x ½" NPT conduit entry including 1 plugged entry) |
| Controls and displays - Local display | LCD |
| Configuration | Locally, using 3 button keypad (for standalone operation) Remotely, using SIMATIC PDM (for installation on a network) |
| Power supply - Bus voltage (at process connection) | Standard: 12 ... 30 V DC Intrinsically Safe: 12 ... 24 V DC |
| Power supply - Current consumption | 12.5 mA |
| Certificates and approvals - General Purpose | CSA, FM, CE, UKCA, RCM |
| Certificates and approvals - Dust Ignition Proof | ATEX II 1/2 D, 2 D IP6X T100 °C UKEX II 1/2 D Ex ia/tb [ia Da] IIIC TX Da/Db |
| Certificates and approvals - Flameproof Enclosure With IS Probe | ATEX II 1/2 G EEx d[ia] IIC T6 ... T4 ATEX II 1/2 D T100 °C UKEX II 1/2 G Ex ia/db [ia Ga] IIC TX Ga/Gb UKEX II 1/2 D Ex ia/tb [ia Da] IIIC TX Da/Db |
| Certificates and approvals - Dust Ignition Proof With IS Probe | CSA/FM Class II, Div. 1, Groups E, F, G CSA/FM Class III T4 |
| Certificates and approvals - Intrinsically Safe4) | ATEX II 1 G EEx ia IIC T6 ... T4 ATEX II 1/2 D, 2 D IP6X T100 °C UKEX II 1 G Ex ia IIC TX Ga UKEX II 1/2 D Ex ia IIIC TX Da/Db CSA/FM Class I, Div. 1, Groups A, B, C, D CSA/FM Class II, Div. 1, Groups E, F, G CSA/FM Class III T4 |
| Certificates and approvals - Explosion Proof with IS Probe | CSA/FM Class I, Div. 1, Groups A, B, C, D CSA/FM Class II, Div. 1, Groups E, F, G CSA/FM Class III T4 |
| Certificates and approvals - Marine | Lloyds Register of Shipping, Categories ENV1, ENV2, and ENV5 |
| Certificates and approvals - Others | Pattern Approval (China) |
| Communication | PROFIBUS PA (IEC 61158 CPF3 CP3/2) Bus physical layer: IEC 61158-2 MBP-(IS) Device profile: PROFIBUS PA profile for Process Control Devices Version 3.0, Class B FISCO field device |
1) When operation is in areas classified as hazardous, observe restrictions according to relevant certificate. See also CLS300 pressure/temperature curves.
2) Thermal isolator is used if process connection temperature exceeds 85 °C (185 °F)
3) Pressure rating of process seal is temperature dependent. See also CLS300 pressure/temperature curves.
4) Barrier or Intrinsically Safe power supply required for Intrinsically Safe protection
| Rod version | High Temperature version | Cable version | |
|---|---|---|---|
| Length | Min. 250 mm (9.8 inch), max. 1 000 mm (40 inch) |
Min. 250 mm (9.8 inch), max. 1 000 mm (40 inch) |
Min. 1 000 mm (40 inch), max. 25 000 mm (984 inch) |
| Sensor wetted parts | PFA (no insulation on active probe), 316L stainless steel, PEEK isolators | Ceramic (ZrO21)) isolators (no insulation on active probe), 316L stainless steel | 316 stainless steel, optional PFA, PEEK isolators |
| O-ring seal material | FKM (optional FFKM)2) | Graphite2) | FKM (optional FFKM)2) |
| Thermal isolator | Optional | Standard | Optional |
| Extension | User selectable length | User selectable length | User selectable cable length |
1) Zirconium Oxide
2) For caustic materials, consult a local sales person for alternative O-rings. For more information, please visit http://www.automation.siemens.com/aspa_app.
