Product Overview

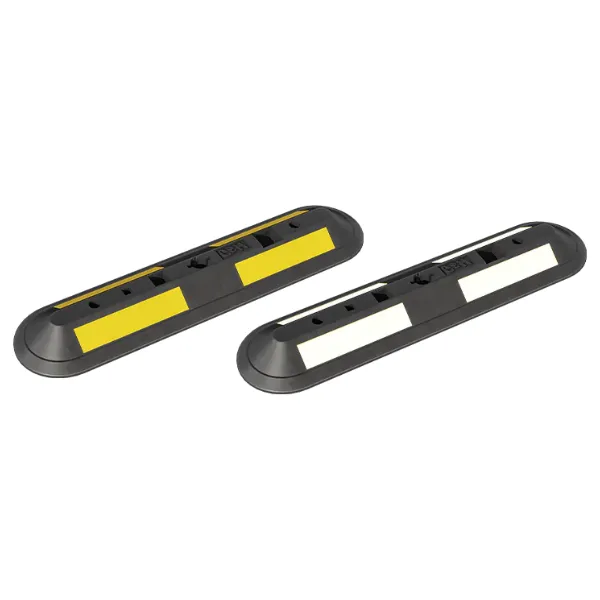

The Fórsa Point Separator is a durable cycle lane separator designed for the temporary and permanent separation of lanes, cycle paths, and road markings. Constructed from strong rubber granulate, it is built to withstand the wear and tear of daily use. The Fórsa Point Separator features applied openings that enable the installation of vertical markings and additional reflectors, enhancing visibility and safety. It is available in black/yellow colours with white/yellow 3M reflective tape.

Key Benefits

• Durable separator for temporary and permanent lane, cycle path, and road marking separation.
• Constructed from rubber granulate for strength and durability.
• Features applied openings for the installation of vertical markings and additional reflectors.

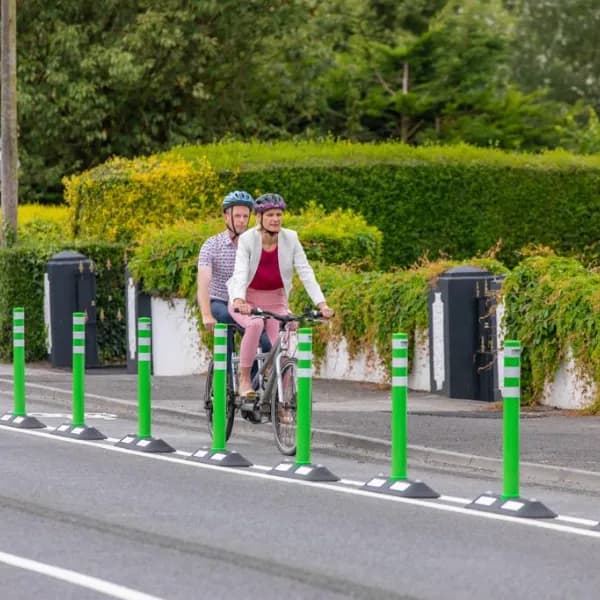

• Receives an 80mm diameter Quick-Flex bollard for easy installation and removal.
• High visibility with white/yellow 3M reflective tape.

Applications

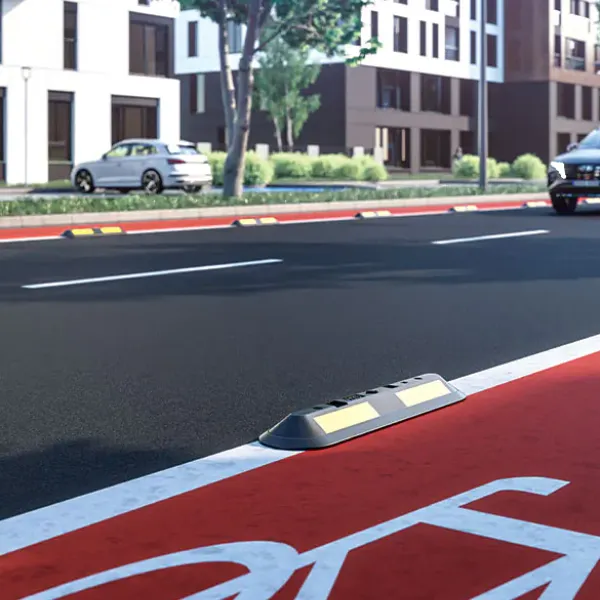

• Temporary and permanent separation of lanes.
• Cycle paths.
• Road markings.

Features & Construction

• Exterior: Rubber granules.
• Material: SBR rubber granulate, PUR resin, white/yellow 3M reflective tape.
• Colour: Black/yellow with white/yellow 3M reflective tape; reflecting elements – white, yellow.
• Holes: Ø45, ☐40, ☐60 for assembly of vertical markings and additional reflectors.

Technical Specifications

Dimensions and Weight

Property	Value	Unit
Length	1000	mm
Width	240	mm
Height	80	mm
Weight	11	kg

Technical Parameters

Parameter	Value	Unit	Standard/Method
Tensile strength	≥1.0	MPa	PN-ISO 37
Hardness	≥55	ShA	PN-EN ISO 868:2005
Water absorption	≤2	%	PN EN ISO 62:2000
Tolerance - length, width	±2	%	of nominal
Tolerance - height	±2	%	of nominal
Tolerance - weight	±2	%	of nominal

Installation & Maintenance

• Assembly to the base using dedicated assembly screws.

Packaging & Storage

• Packaging: Packed on a Euro pallet with 60 pieces. Description on the pallet includes product name, quantity, batch number, and packing date. Other packaging options are available on request.
• Identification: Product information about the date of production is found on the underside of the product. Pallets are identified with product name, quantity, pallet identification number, packing date, and quality control stamp.
• Storage: Products should be stored on pallets in protective film and protected from external weather conditions. For longer periods, products may be stored only in closed, ventilated rooms without humidity, after removing the protective film. Maximum storage temperature is 40°C.
• Health, Safety and Fire Conditions: Storage and use of the product must meet all requirements for rubber materials.
