Product Overview

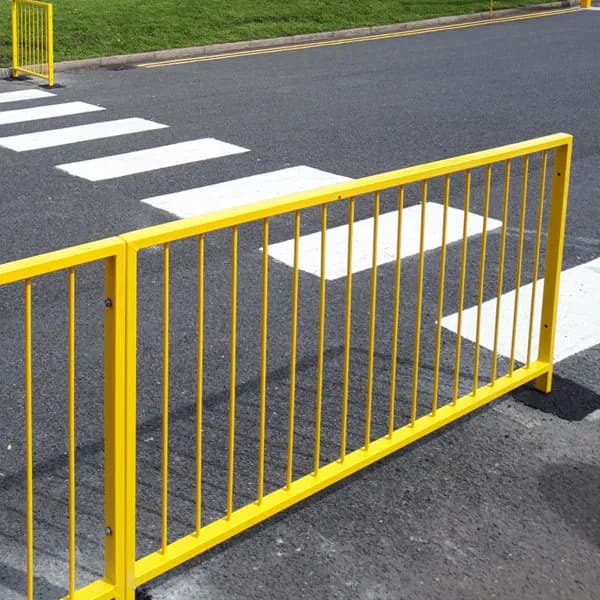

The Pedestrian Guard Rail (PGR) from IPL group is a durable and adaptable safety solution designed to safeguard pedestrians in high-traffic areas. Constructed from robust galvanised steel, it provides lasting protection against the elements and ensures reliable safety on pavements, roundabouts, and traffic junctions. With flexible installation options, customisable panel lengths, and a range of aesthetic choices, the PGR Guardrail offers a versatile and cost-effective solution for public spaces.

Key Benefits

• Robust Pedestrian Safety: Designed to protect pedestrians in high-traffic areas like kerbs, roundabouts, and junctions, ensuring reliable safety.
• Exceptional Durability: Features robust galvanised steel construction, providing lasting protection against the elements and years of dependable service even in tough conditions.
• High Versatility & Adaptability: Offers choices in guard heights (full or height guards), infill patterns (classic staggered bar or sleek straight bar), and customisable panel lengths for a perfect site fit.
• Flexible Installation: Can be installed via RS sockets (for easy removal/replacement), flanged base plates for direct surface mounting where excavation isn't possible, or traditional root fixing.
• Customisable Aesthetics: Can be powder-coated in any RAL colour for seamless integration, personalised branding, and enhanced durability against weathering, scratching, and fading.
• Cost-Effective Solution: Provides superior quality and protection without compromising budget.

Applications

The Pedestrian Guard Rail (PGR) is a multi-purpose guardrail suitable for a variety of public spaces and traffic management needs:

• Safeguarding pedestrians in high-traffic areas.

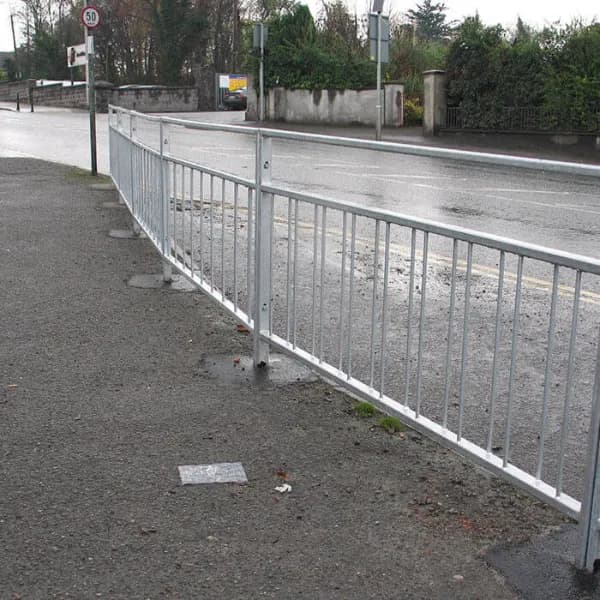

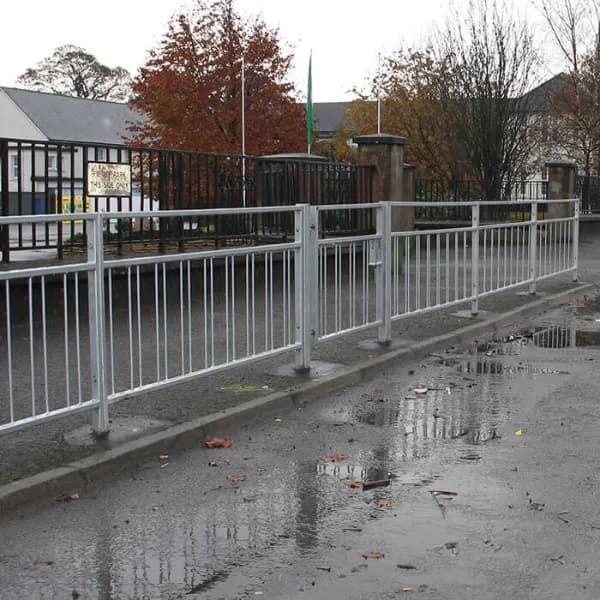

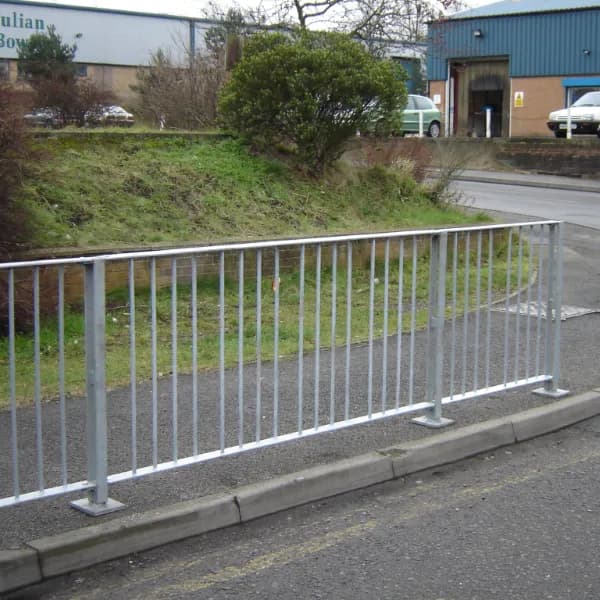

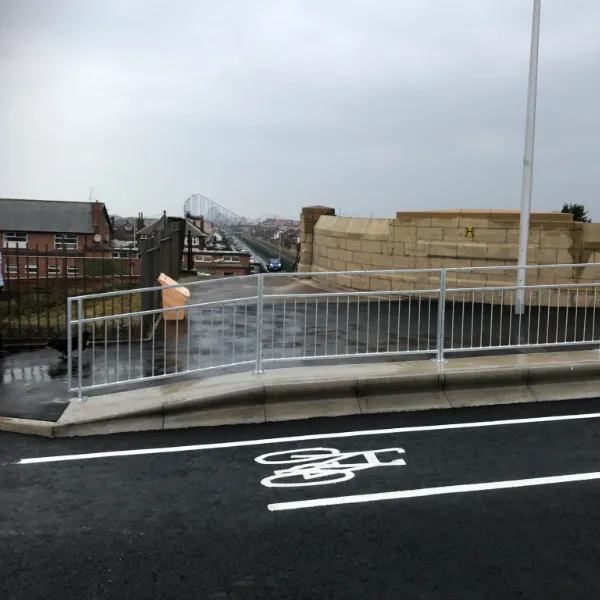

• Installation on pavements, roundabouts, and traffic junctions.
• Defining safe pedestrian zones.
• Creating barriers around kerbs and other road features.

Features & Construction

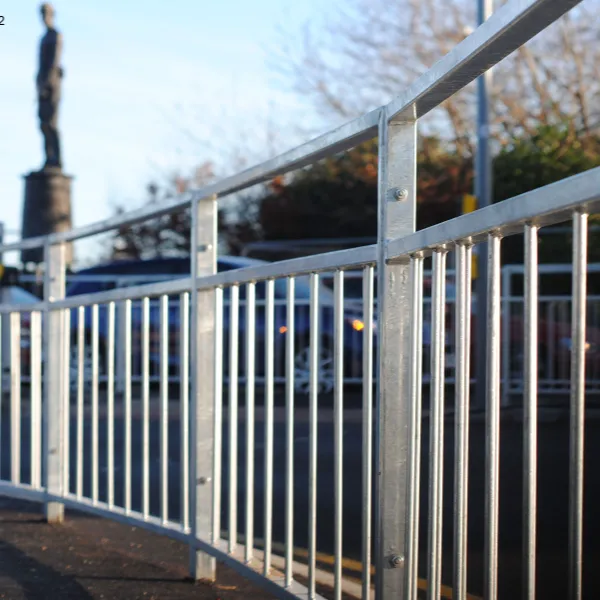

• Strong galvanised steel box section railing construction.
• Main horizontal box sections are 50x60mm (composed of 2 x 50x30mm sections).
• Vertical infill bars are typically 12mm.
• Available in various configurations, including full guard and ¾ guard panels.
• Optional sight gap available to enhance safety and aesthetics by allowing increased visibility for both pedestrians and drivers.

Customisation Options

• Choice between full or height guards.
• Customisable panel lengths: 2M, 1.5M, and 1M available to ensure a perfect fit.

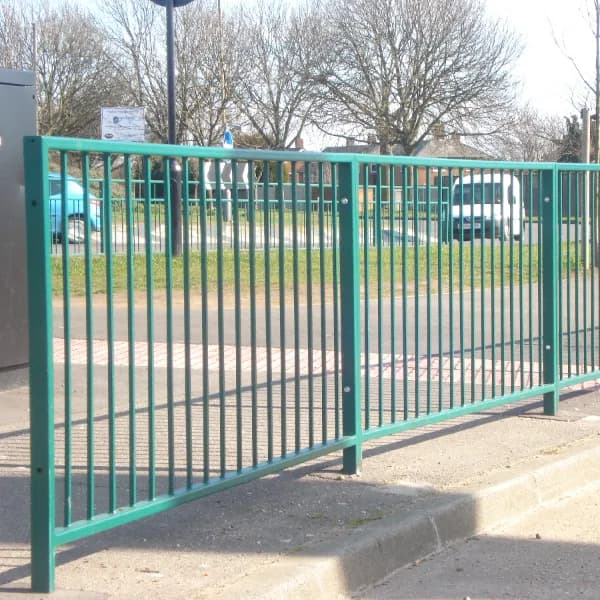

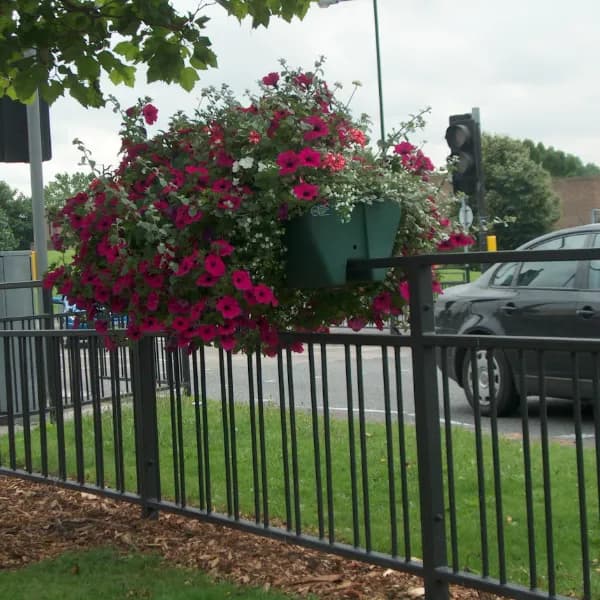

• Powder coat the PGR Guardrail in any RAL colour to match the environment seamlessly, for seamless integration and personalized branding.
• Choice between a classic staggered bar infill for traditional safety or a sleek straight bar infill for a more contemporary look.
• 3M Diamond Grade reflective tape for increased visibility (implied, common option for safety products like this).

Technical Specifications

Installation & Maintenance

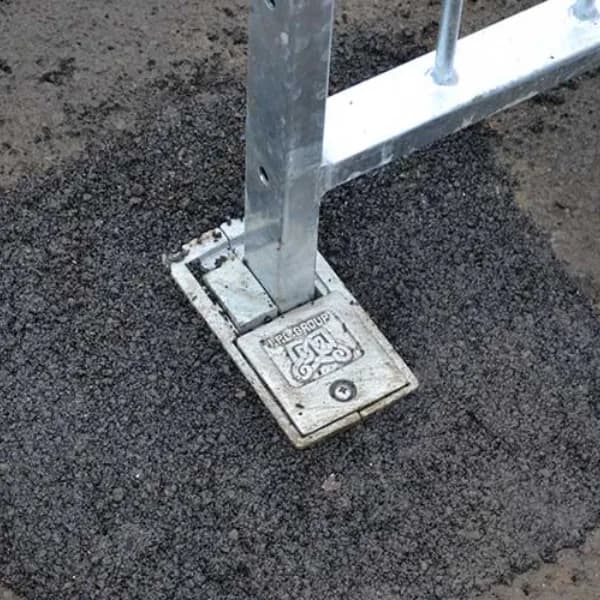

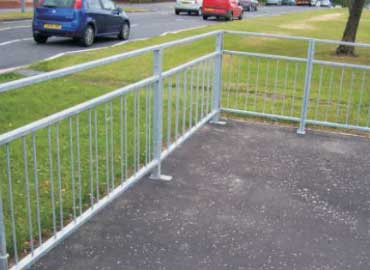

• Installation: Features flexible installation options. It can be installed using the RS50x60 retention socket for easy installation and replacement without additional civil works. Alternatively, it can be installed directly onto existing surfaces using flanged base plates, ideal where ground excavation isn't possible or desirable. A combination of fixed and removable guardrails may be used for easy maintenance and replacement of damaged panels in high-risk knockdown areas. RS sockets facilitate end panels, 90° corners and radius bends.
• Maintenance: The galvanised steel construction provides lasting protection against the elements. RAL powder coating provides an extra layer of protection, enhancing resilience against weathering, scratching, and fading. Specifying the use of RS sockets anticipates expected installation demands, maintenance needs and the lifecycle of the post.
