Product Overview

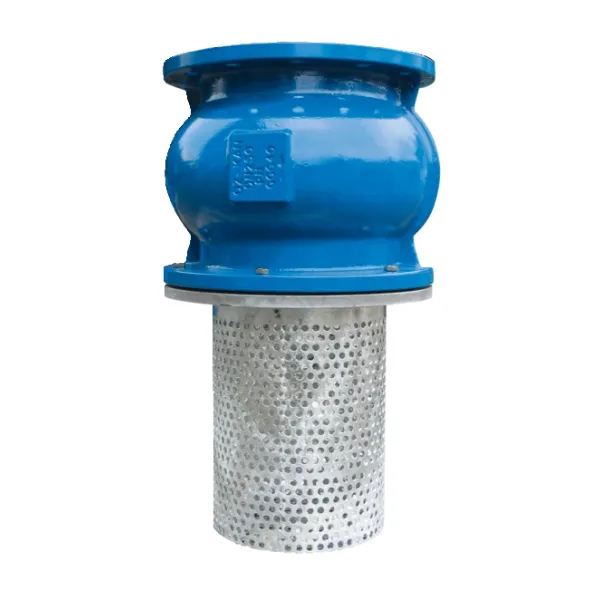

The Özkan Foot Valve No. 9888 is a resilient seated valve designed for installation in pump suction lines. Its purpose is to prevent the water column from draining off when the pump stops. The valve has an optimised design, which results in a low restriction to flow.

Key Benefits

• Prevents the water column from draining off upon pump stoppage.
• Provides low restriction to flow due to its optimised design.
• Resilient seated.

Applications

• Installed in pump suction lines.

Features & Construction

• The body, disc, and shaft support are made of ductile iron, epoxy powder coated.
• The retaining ring is made of steel, epoxy powder coated.
• The sealing rings and O-ring are made of elastomer.
• Shafts, bolts, and hexagonal socket set screws are made of stainless steel.
• The strainer is made from galvanized steel or stainless steel.
• The bolts and nuts for the strainer are made from galvanized steel or stainless steel.

Technical Specifications

• Nominal Diameter (DN): from 100 to 1000.
• Pressure Ratings: PN 10 and PN 16.

DN	Weight (kg)	H (mm)	ØD (mm)	ØK (mm)	C (mm)	Bolts Qty.	Ød2 (mm)
100	26	325	220	180	19.0	8	19
125	34	388	250	210	19.0	8	19
150	45	450	285	240	19.0	8	23
200	65	575	340	295	20.0	8	23

Installation

• The valve should be assembled in a vertical position.
